KW-10m

Device Description

Outputs:

• 2 × volt-free relay
• 2 × 0–10V
• 2 × PWM
• 1 × 4–20mA

Inputs:

• 1 × NTC
• 2 × volt-free 0/1 inputs

Connectivity with the Sinum EH-01 control unit is established via a wired connection through the Sinum SBUS bus.

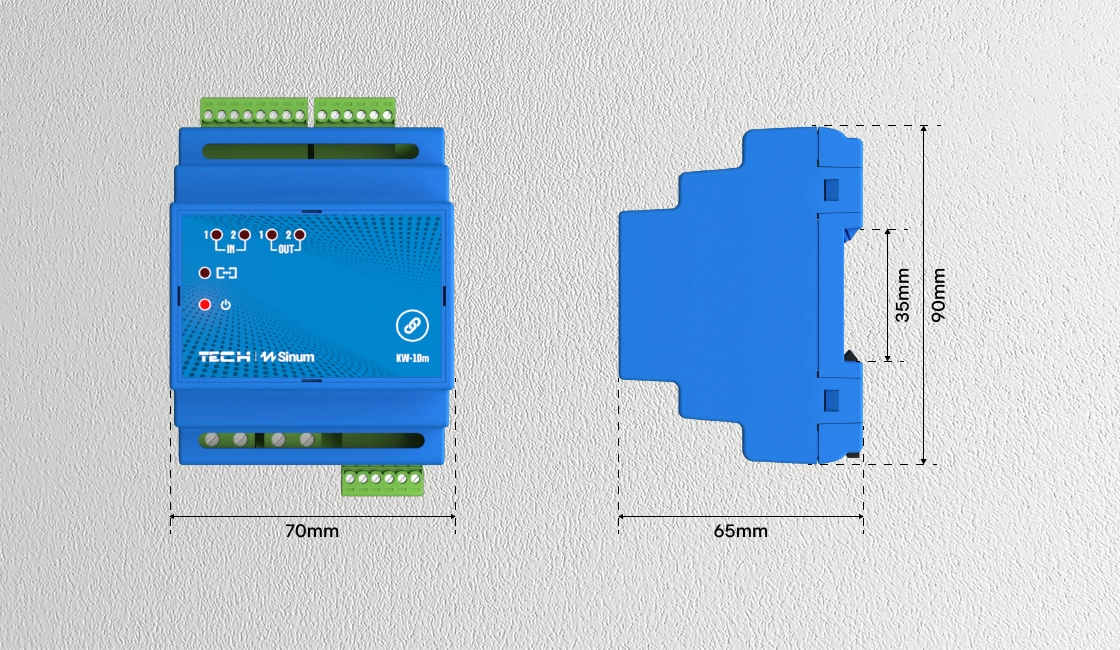

Device Dimensions

The relay modules have been designed compactly to fit perfectly on DIN rails in distribution cabinets. Their precise dimensions ensure a seamless fit in standard distribution cabinets, providing a neat and aesthetically pleasing installation.

Dimension Details

• Dimensions: 70x90×65mm

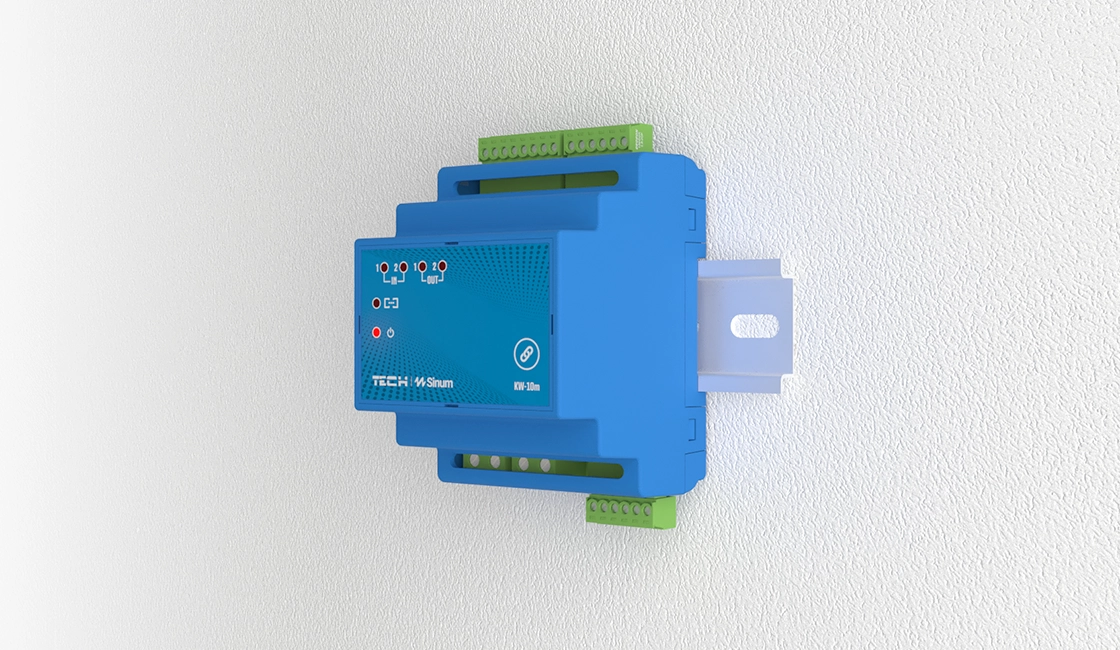

• Mounting type: DIN rail (35mm) in distribution cabinets

Remote Control

With the Sinum app, you can manage your system anytime and anywhere. The app provides full control over lighting, temperature, blinds, and other household devices — ensuring both convenience and energy efficiency. Its intuitive interface allows you to easily create schedules, set up scenarios, and monitor energy consumption. Additionally, the Sinum app offers real-time notifications and alerts, guaranteeing complete safety and comfort of use.
