KW-03m

Device Description

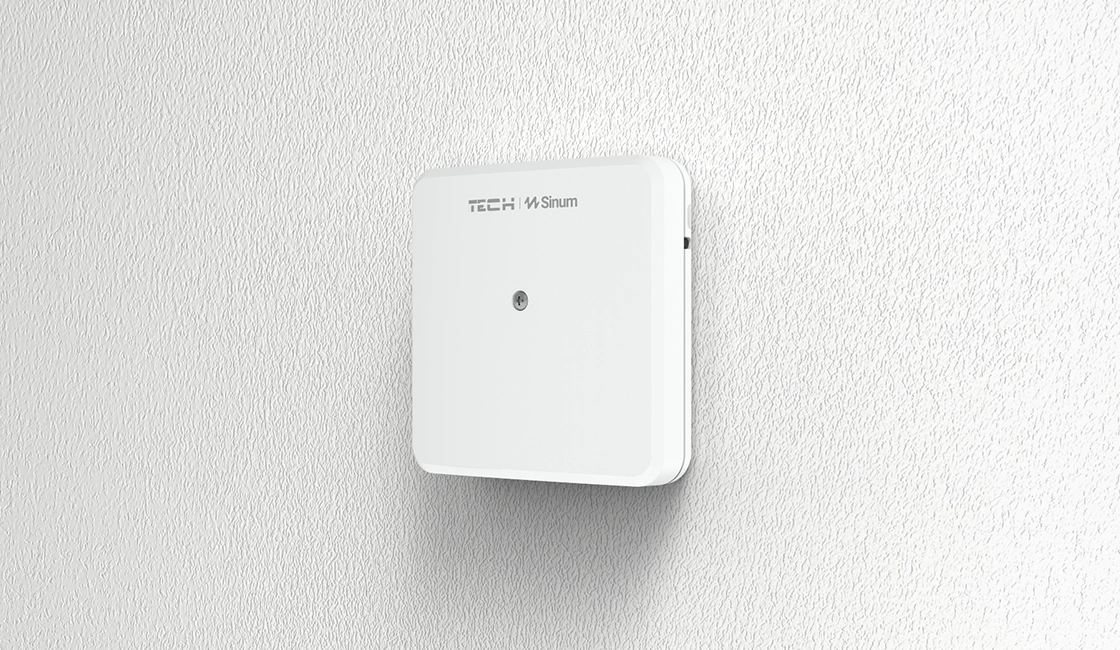

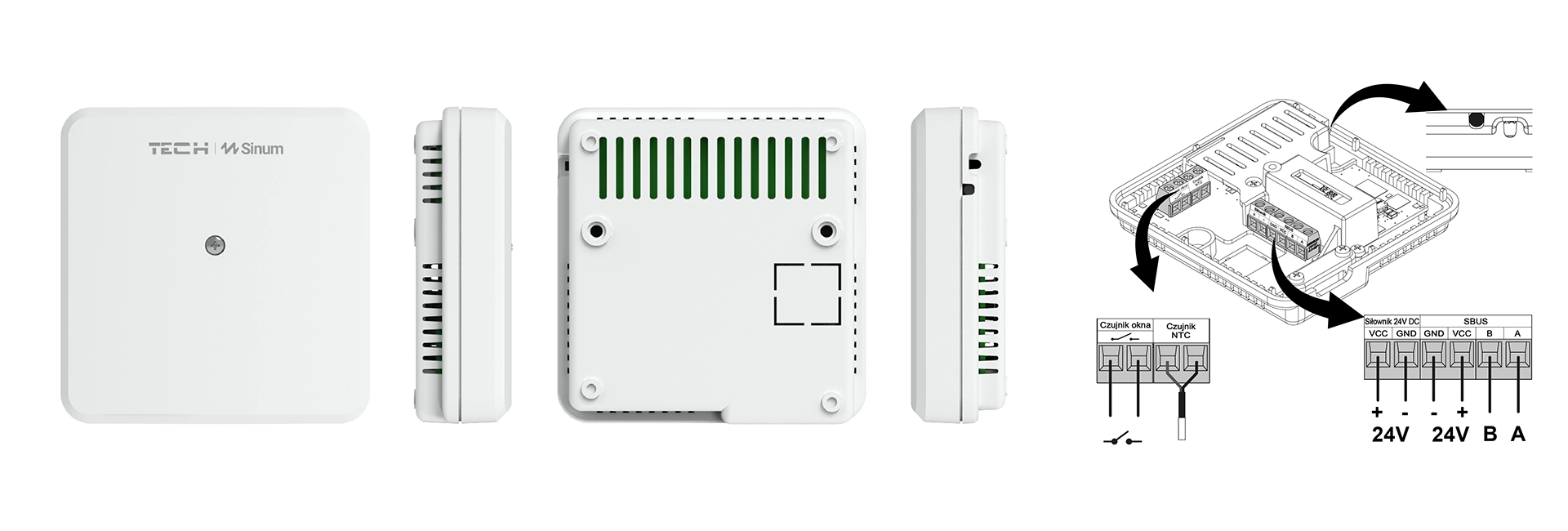

The KW-03m Input Card is a device that mediates communication between sensors and devices connected to the card and the Sinum central unit. Connectivity with the Sinum central is wired.

• 1x 24V output
• 1x NTC sensor input
• 1x binary input (e.g., reed switch)

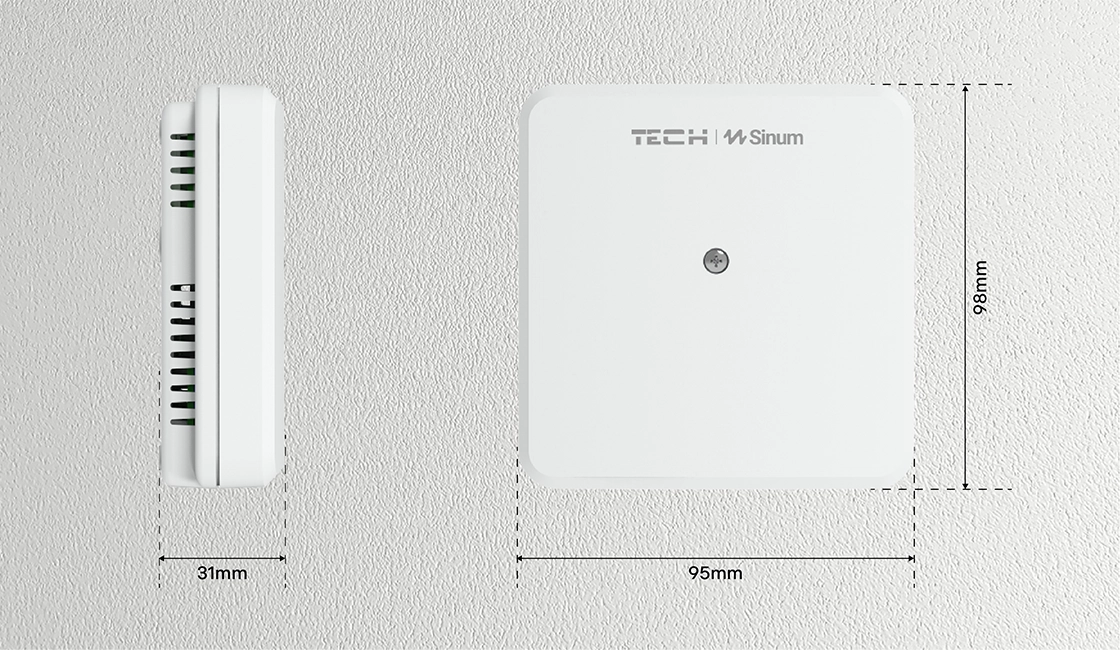

Device Dimensions

The device has been designed to be compact, allowing for direct mounting on a wall surface without the need for a mounting box. Its precisely tailored dimensions ensure that the surface-mounted module provides a neat and elegant finish, seamlessly integrating with the wall.

Dimension Details:

• Dimensions: 95x98x31mm
• Mounting type: Surface-mounted

Remote Control

With the Sinum app, you can manage your system anytime and anywhere. The app provides full control over lighting, temperature, blinds, and other home devices, ensuring convenience and energy efficiency. Its intuitive interface allows you to easily create schedules, automation scenarios, and monitor energy consumption.

Additionally, the Sinum app offers real-time notifications and alerts, providing complete security and comfort in everyday use.
