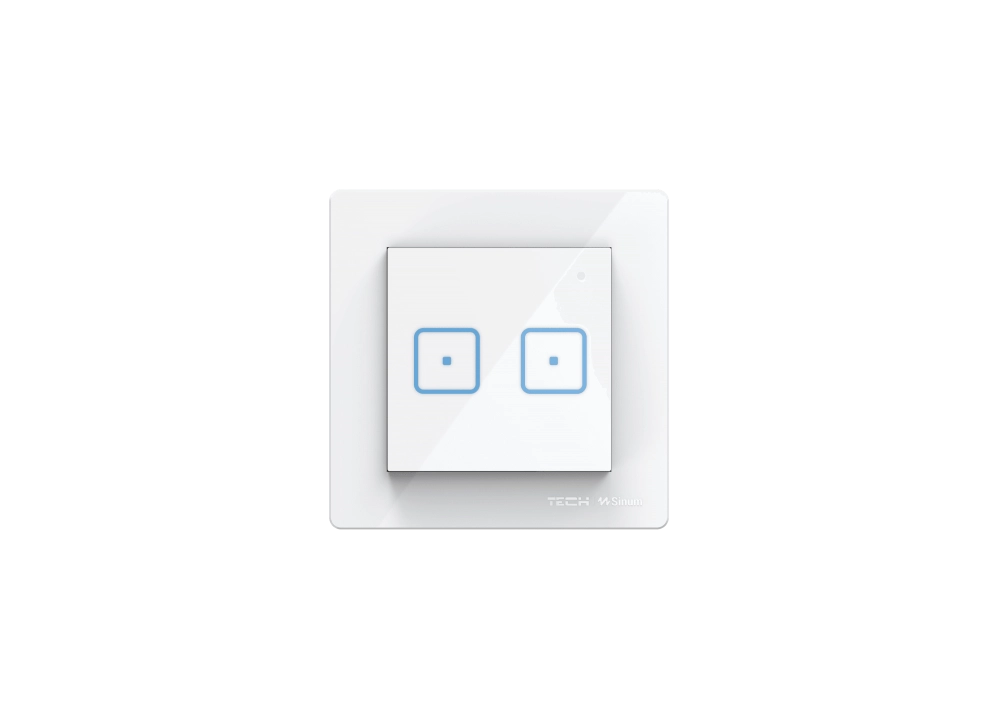

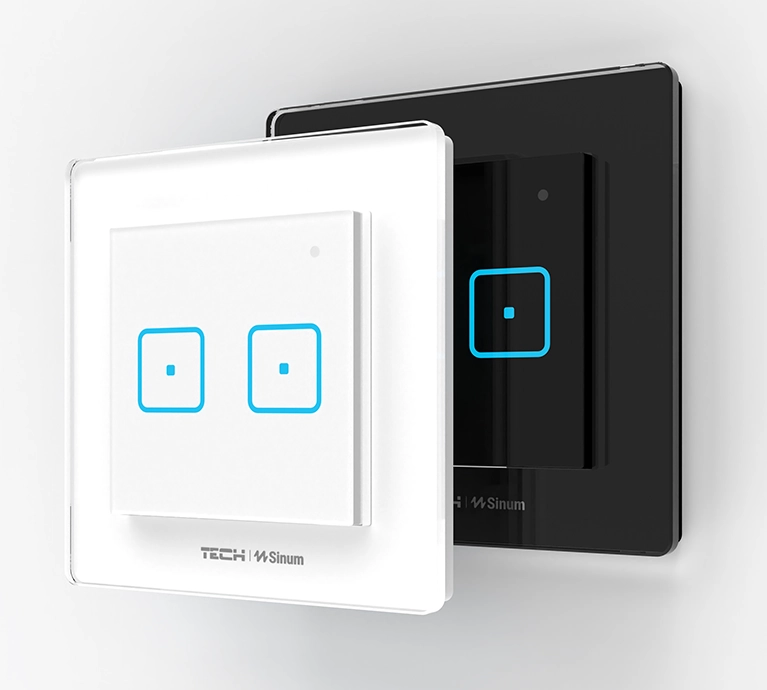

2-gang frame-mountable touch glass switch FS-02

Product description

Features:

switching lights on/off
2 relays to control two lighting circuits

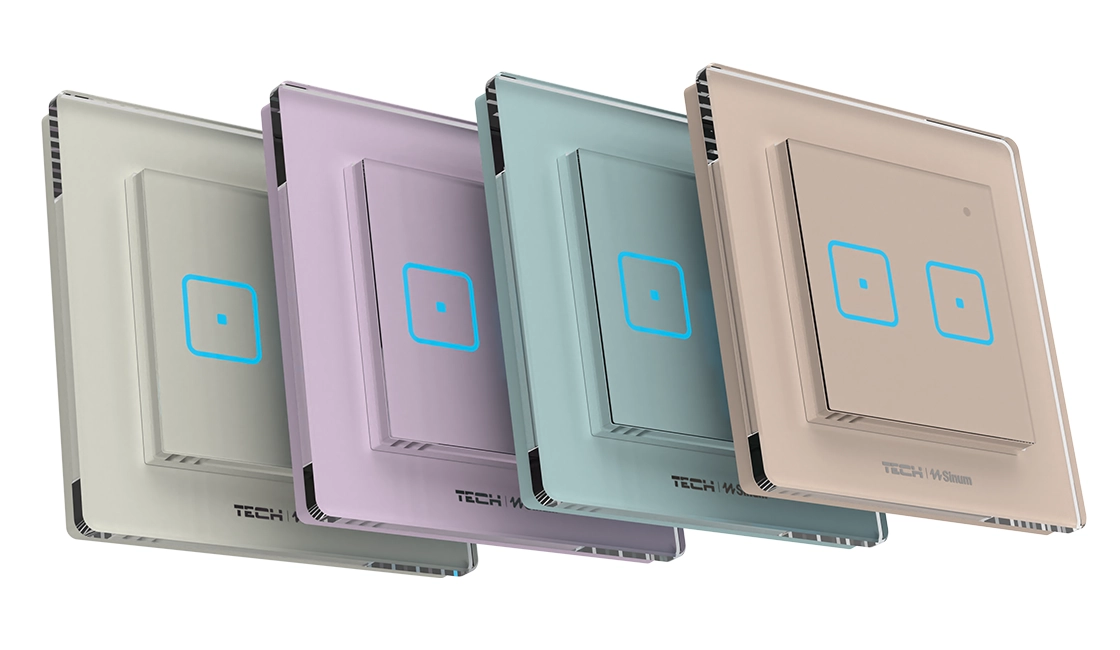

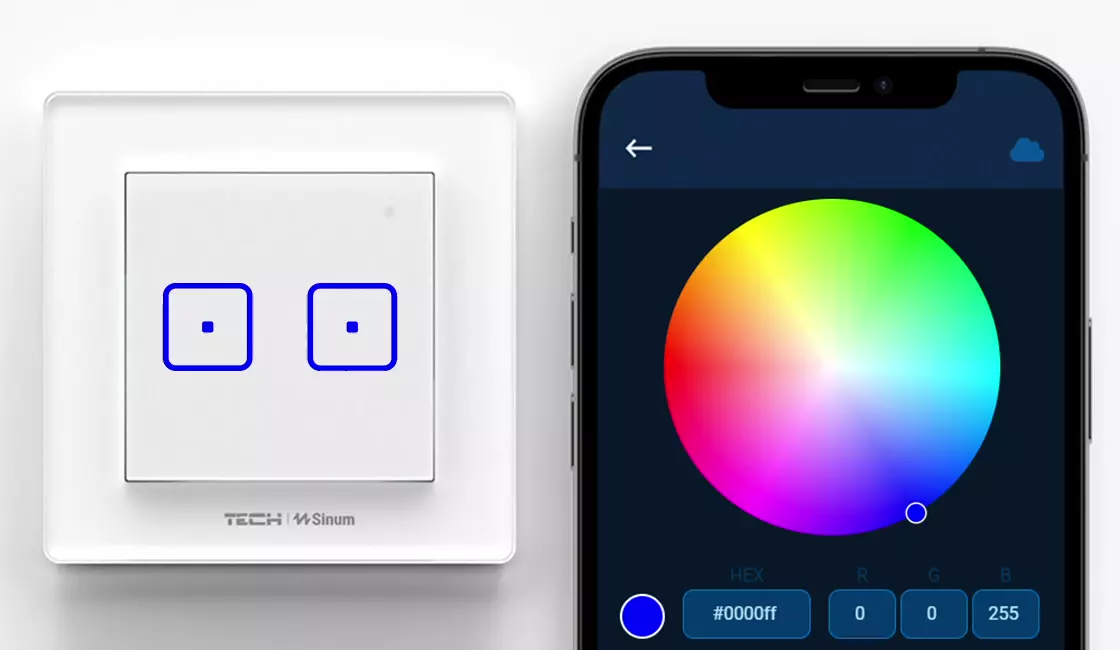

the ability to change the backlit colour and display mode
the ability to change the brightness level 0-100%
mode of automatic adjustment of the brightness of the backlit to the lighting conditions of the room

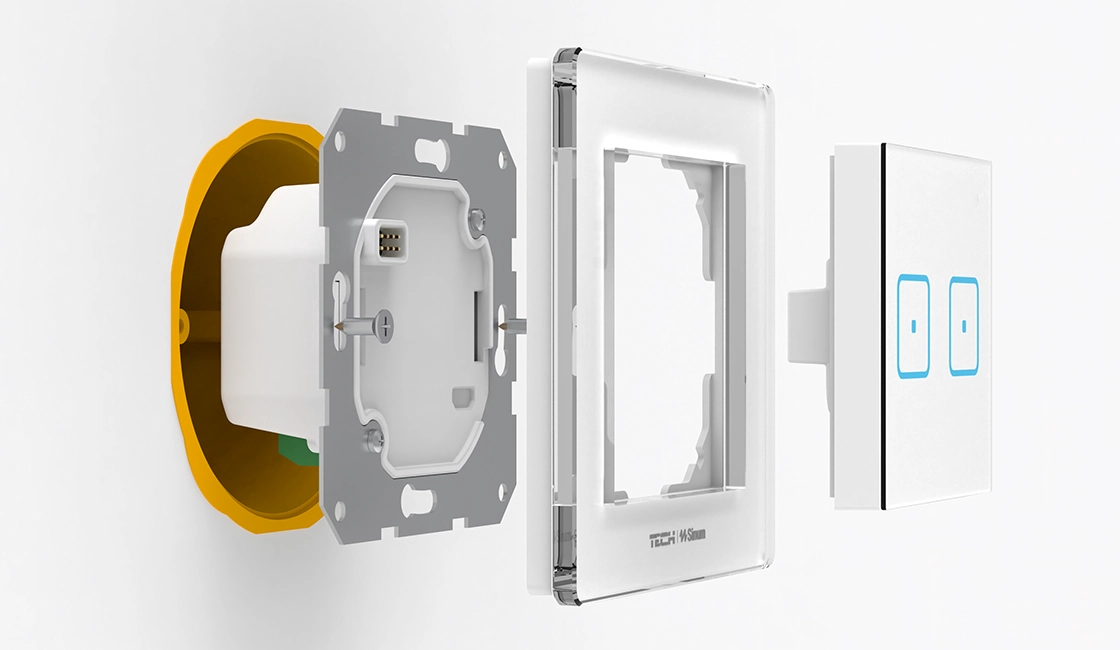

mounting to a 55×55 mm frame

Product parameters

Specification	Value
Communication	Wireless WTP 868 MHz

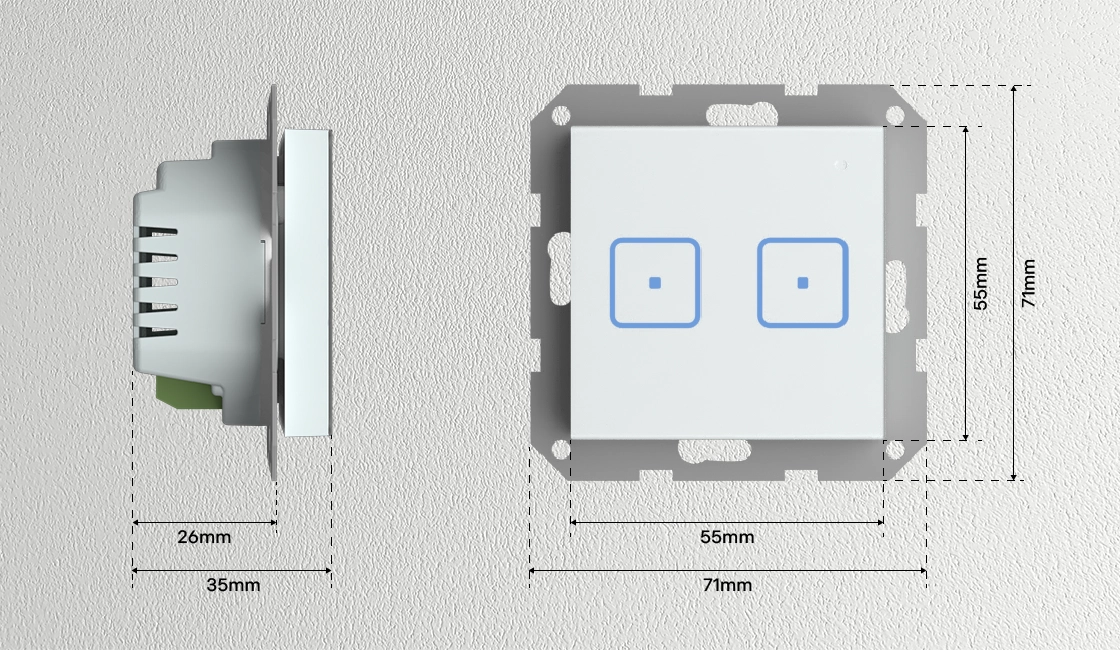

Height	54.98 mm
Width	54.98 mm
Depth	54.98 mm
Power Supply	230 V AC
Power Consumption	1 W
Operating Temperature	5°C - 50°C
Number of Relay Outputs	2
Max Relay Load	0.5 A
