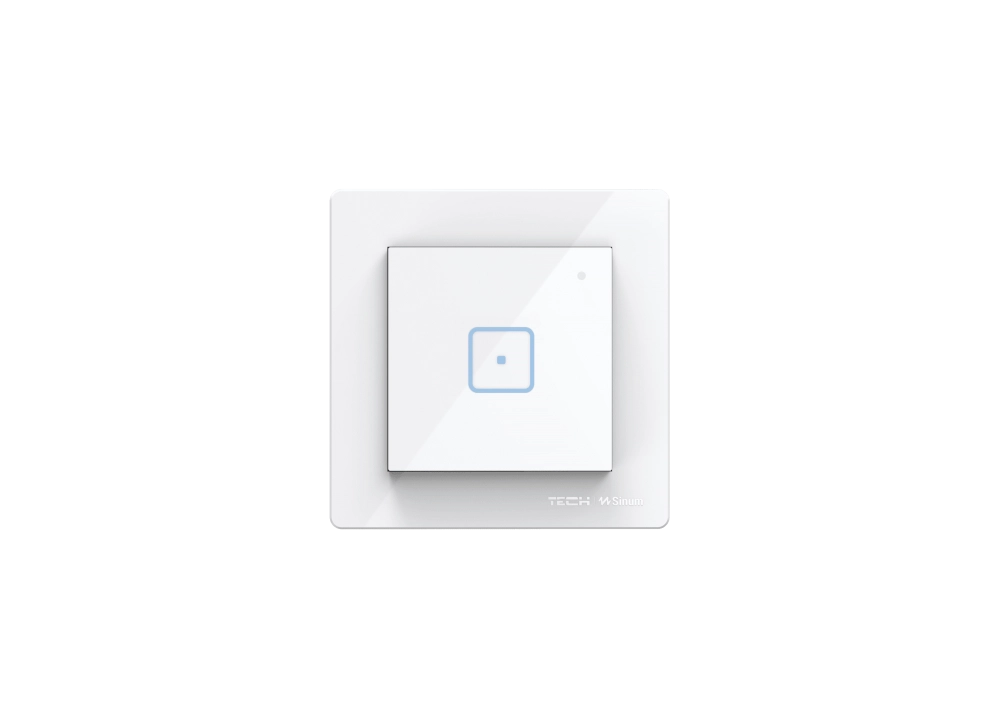

Wired 1-gang frame-mountable touch glass switch FS-01

Product description

Features:

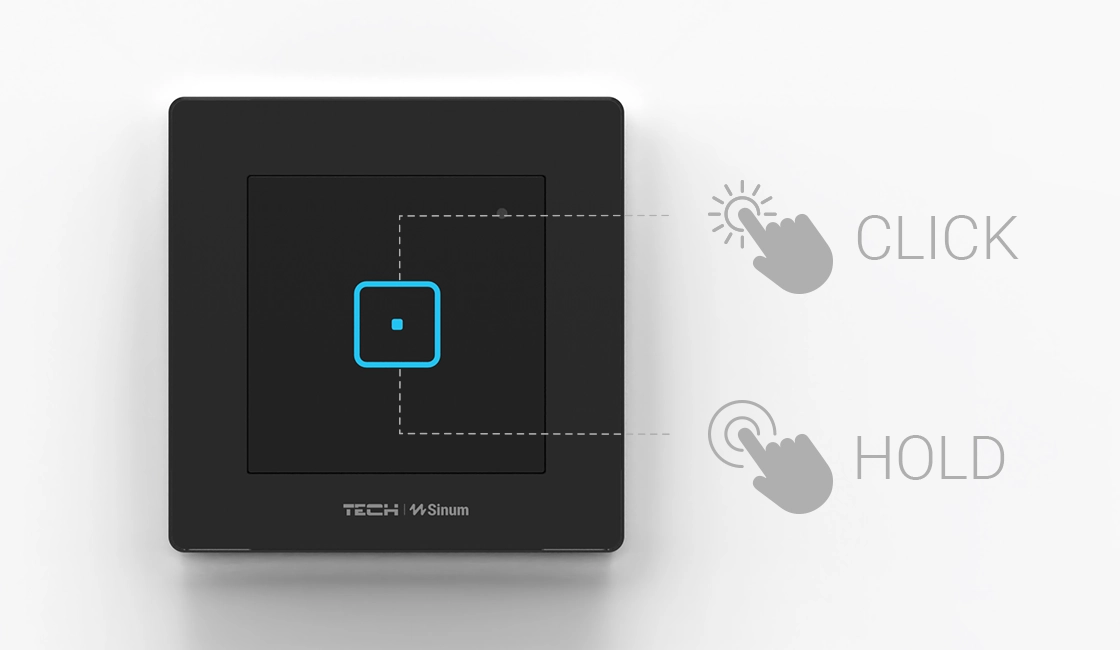

switching lights on/off
1 relay to control one lighting circuit

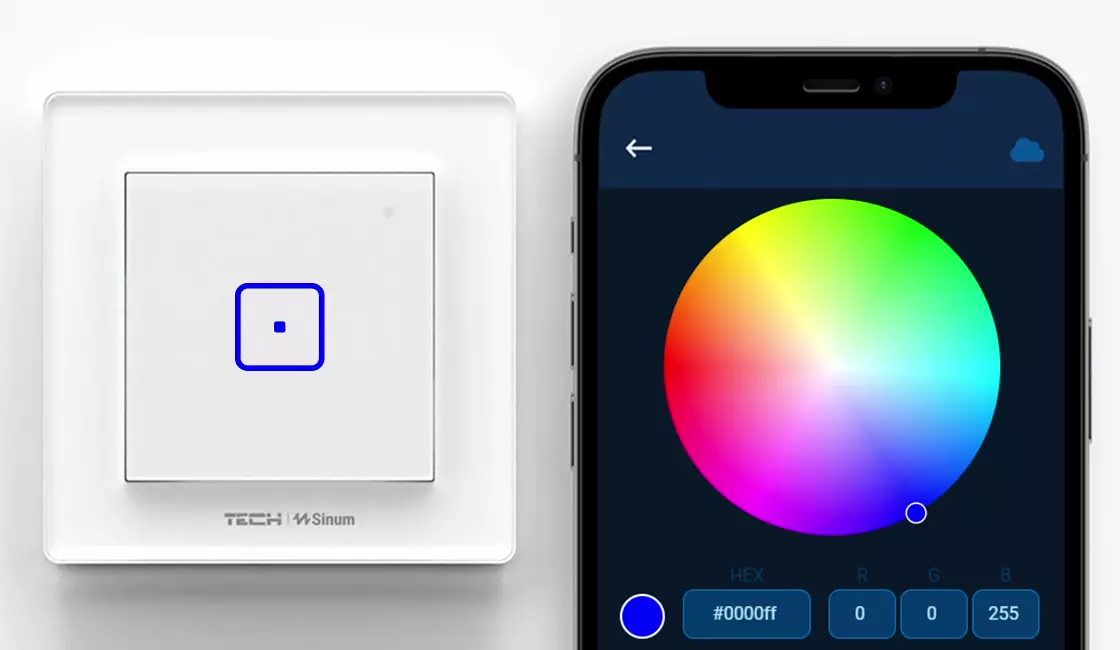

the ability to change the backlit colour and display mode
the ability to change the brightness level 0-100%
mode of automatic adjustment of the brightness of the backlit to the lighting conditions of the room

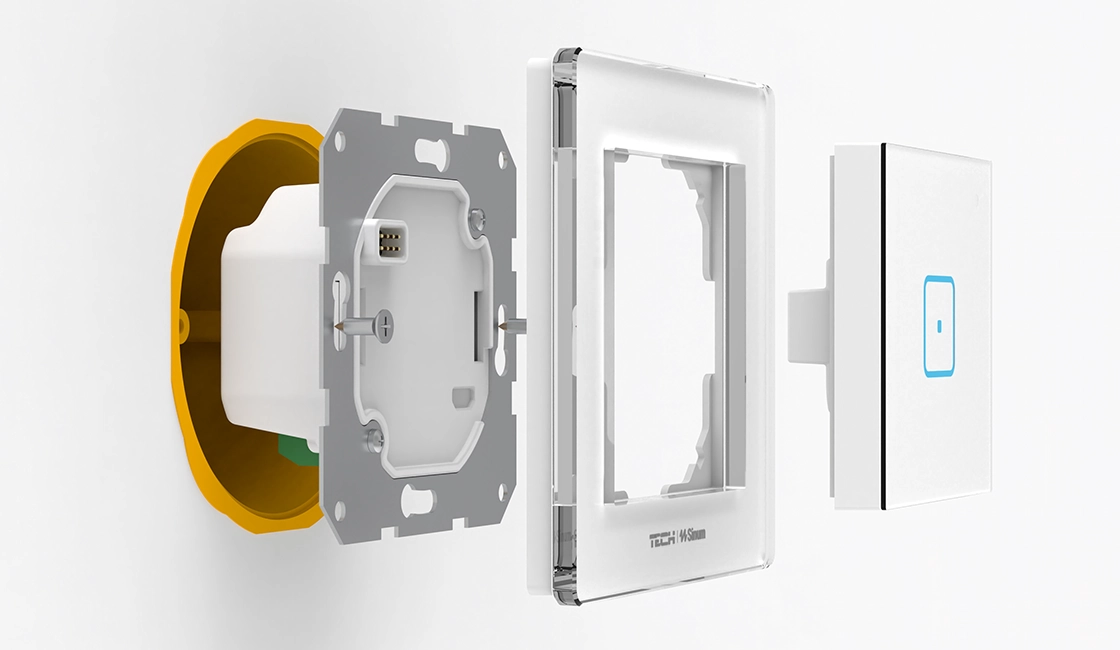

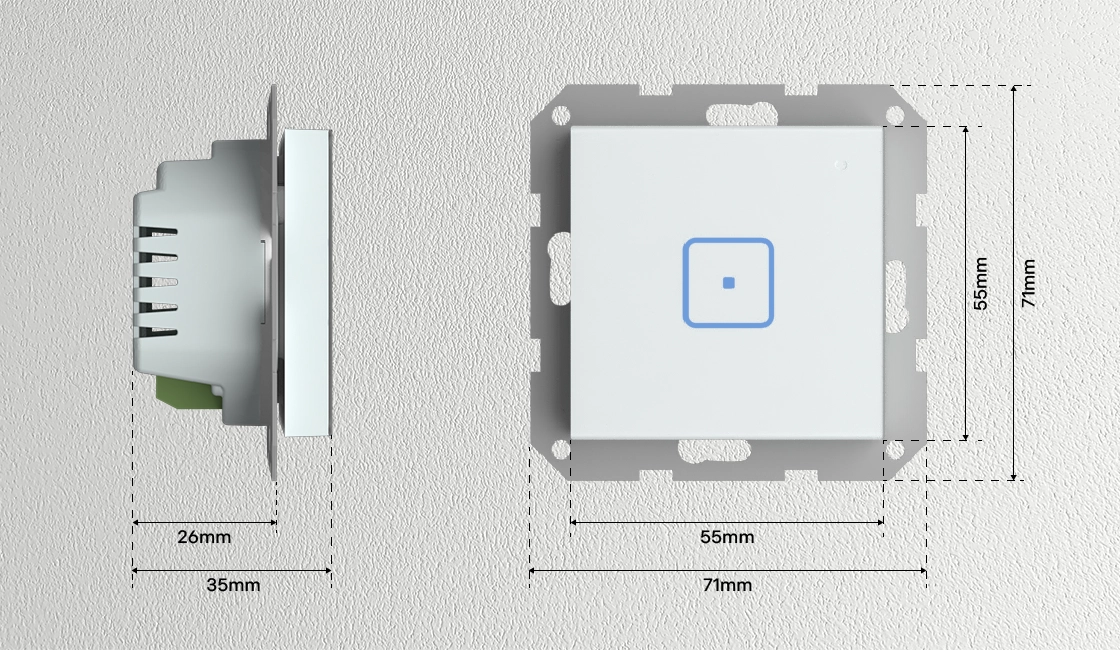

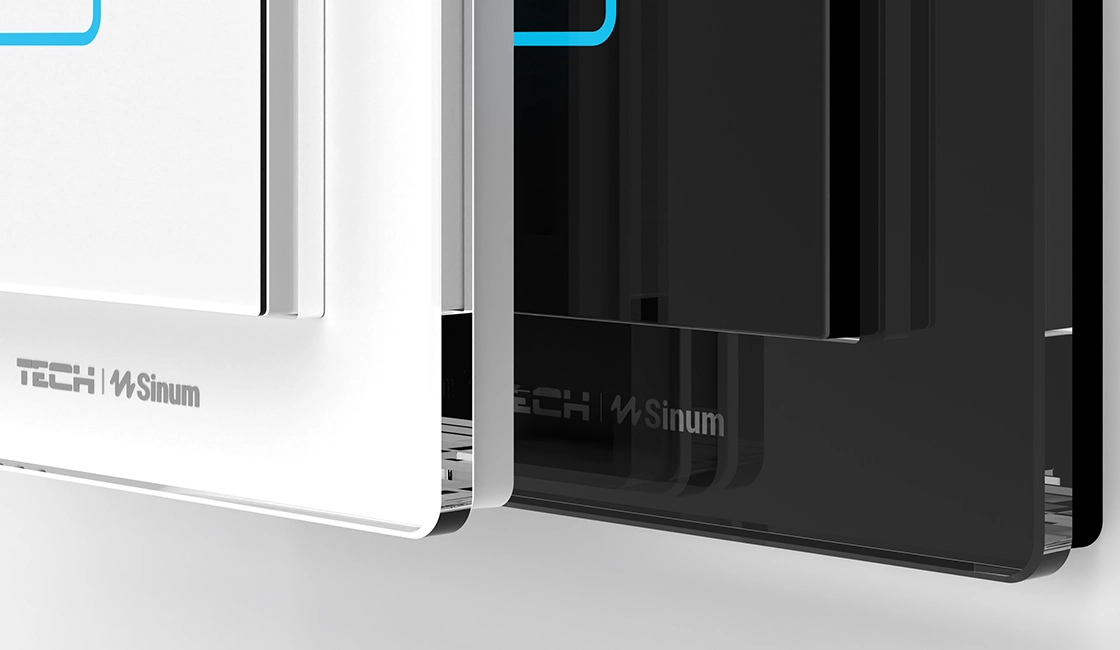

mounting to a 55×55 mm frame

Product parameters

Specification	Value
Communication	Wired TECH SBUS
Height	54.98 mm
Width	54.98 mm
Depth	54.98 mm
Power Supply	24 V DC
Power Consumption	1 W
Operating Temperature	5°C - 50°C
Number of Relay Outputs	1
Max Relay Load	0.5 A
