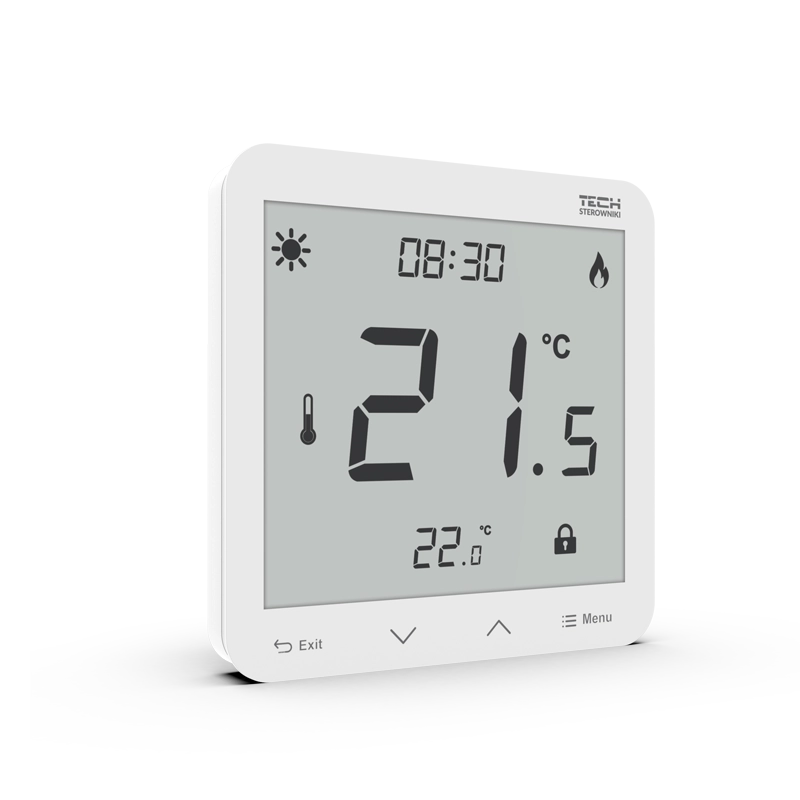

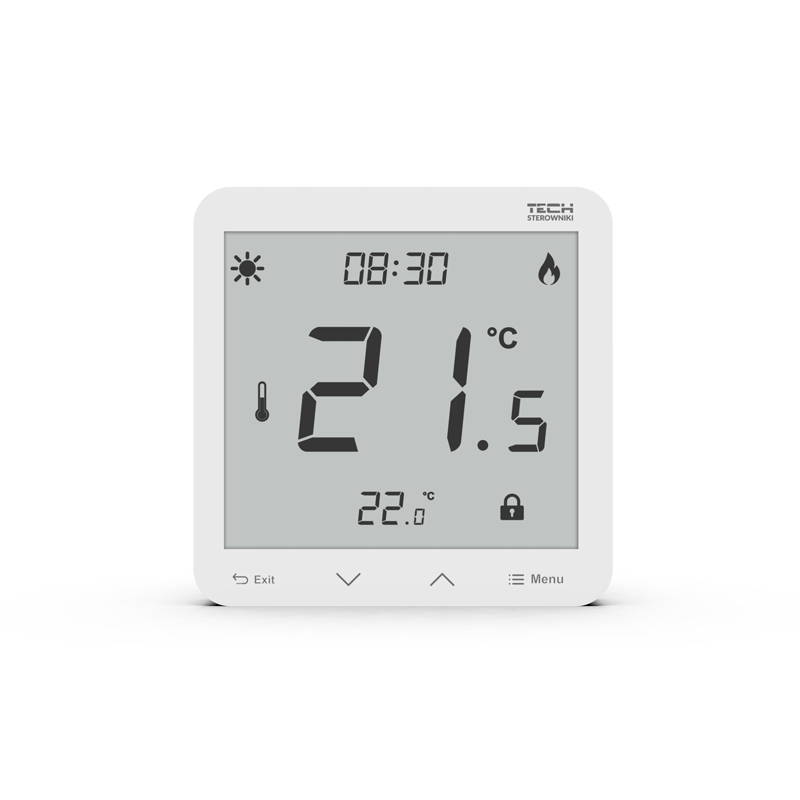

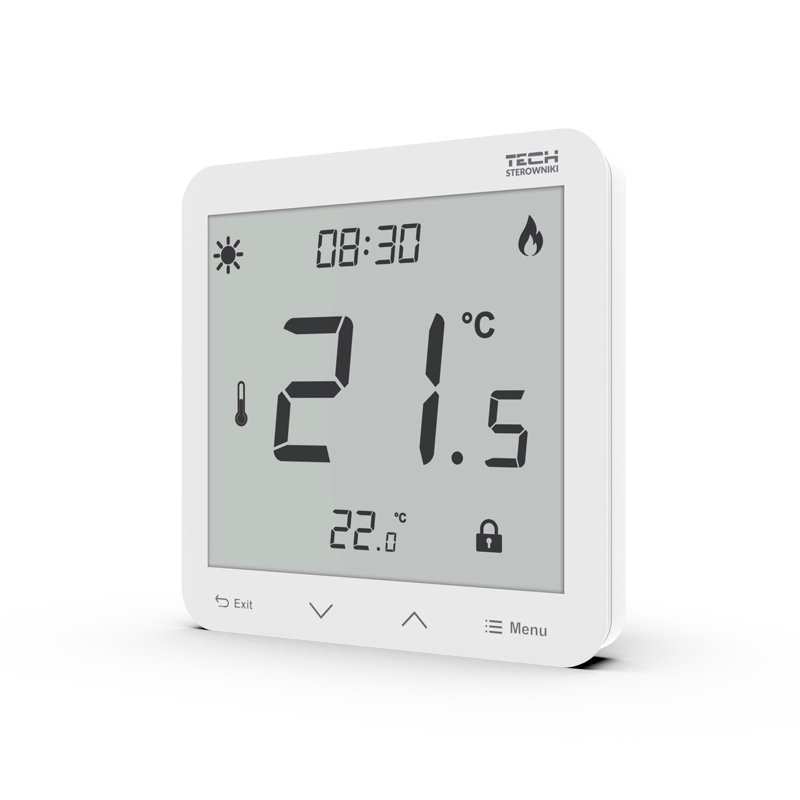

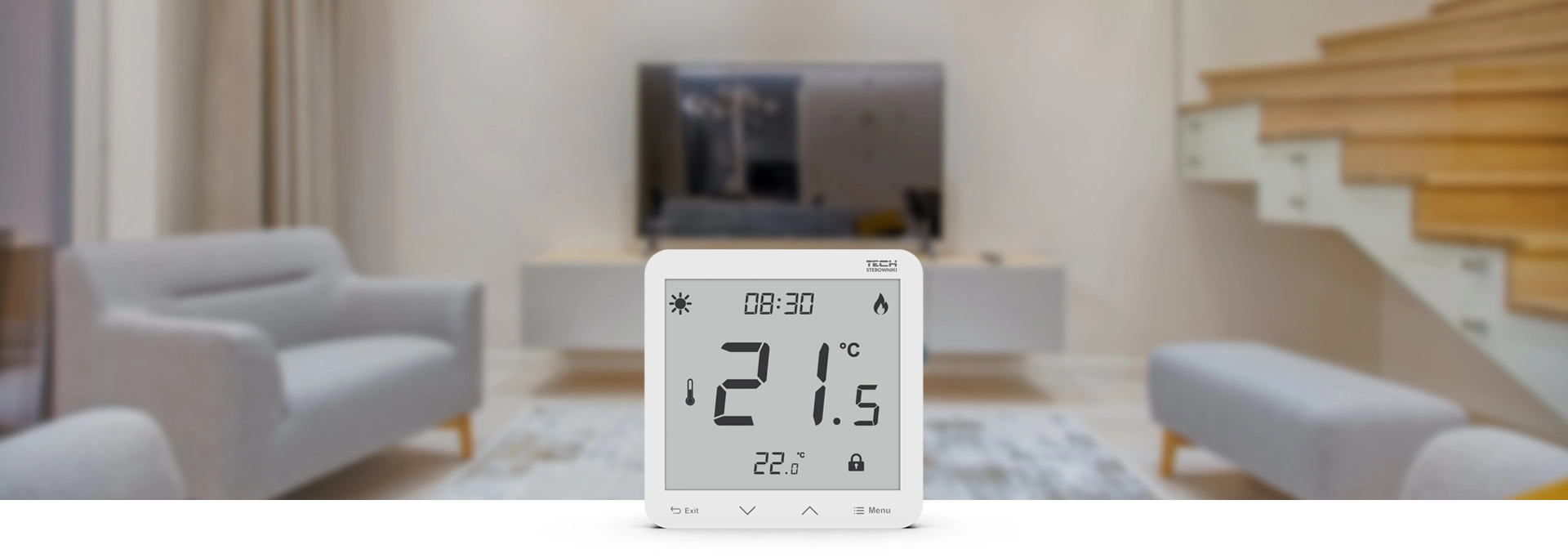

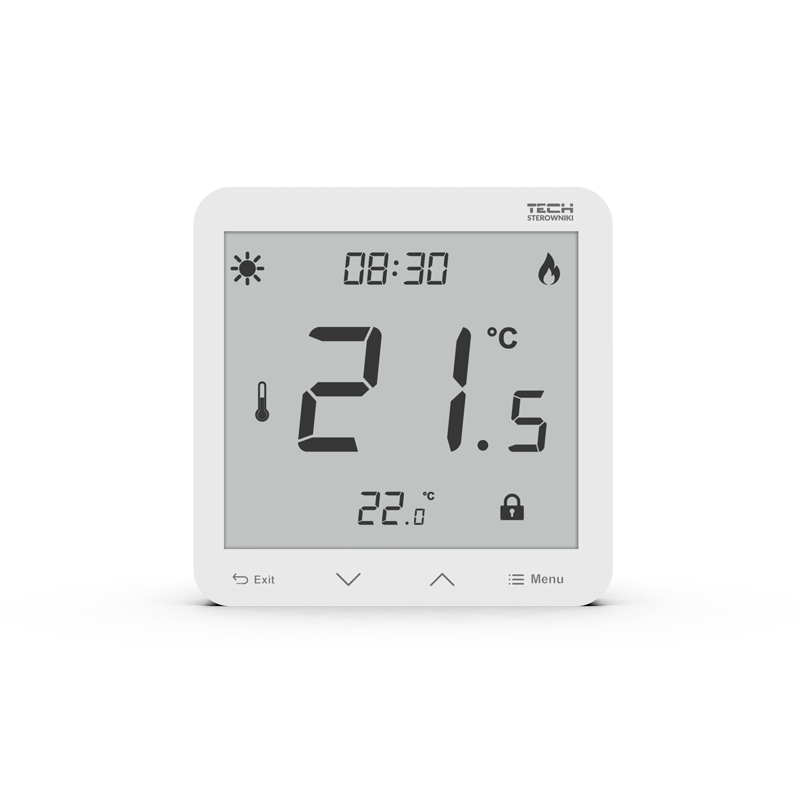

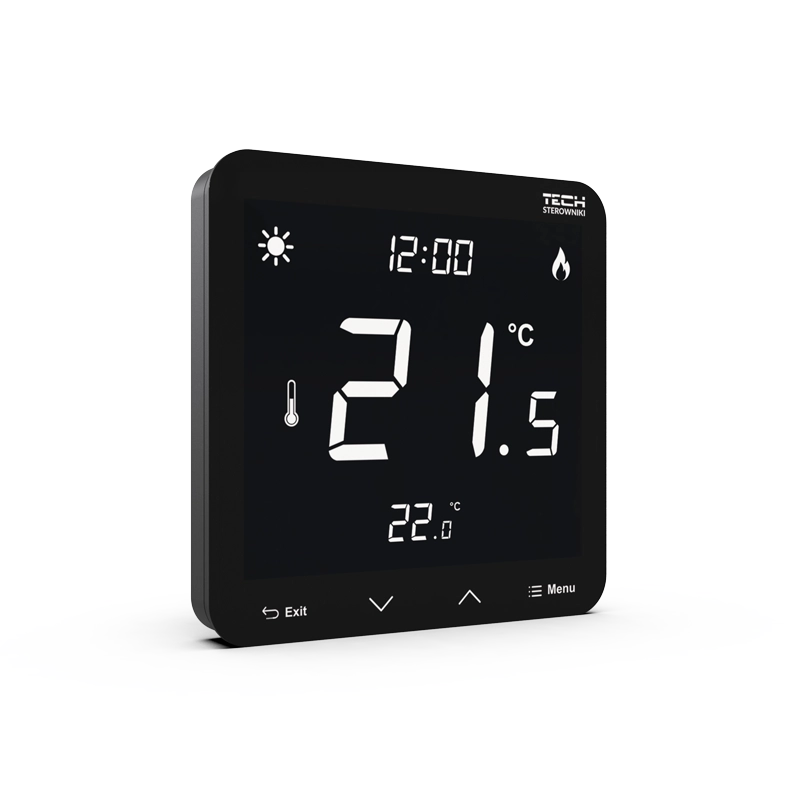

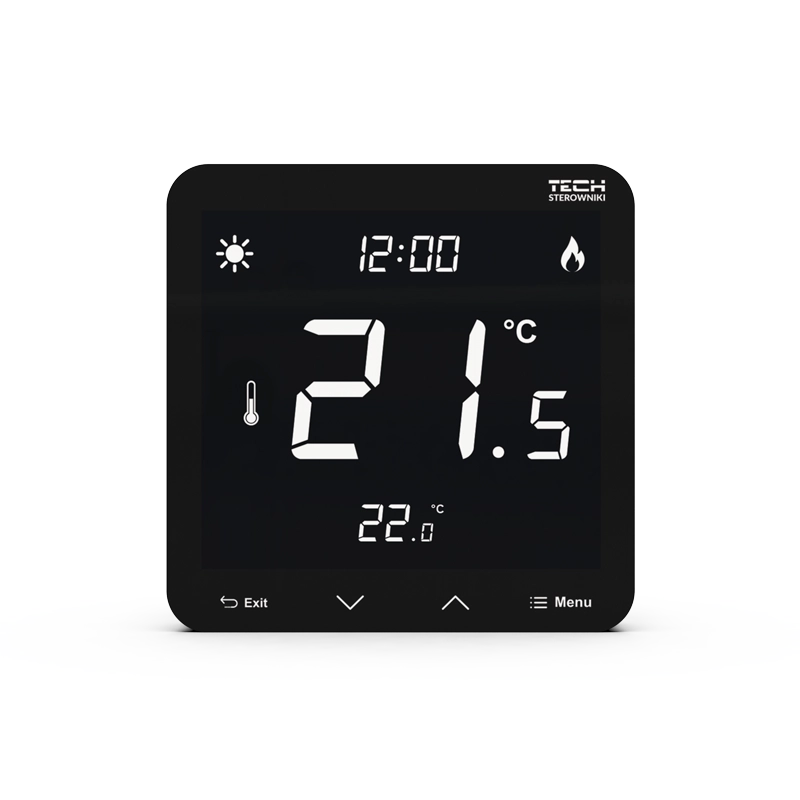

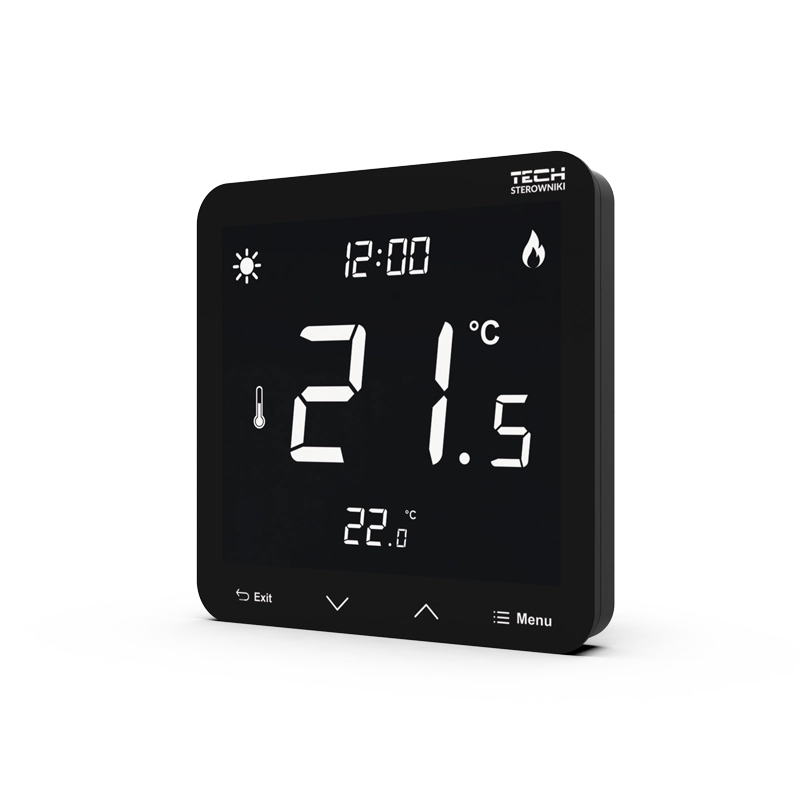

EU-297z v3

WIRED TWO-STATE ROOM REGULATOR  (flush mounted) 230V powered

Product description

WIRED TWO-STATE ROOM REGULATOR

(flush mounted) 230V powered

Functions performed by the controller:

  • room temperature control +/- with an accuracy of 0.1 ° C
  • hysteresis in the range from 0.2 to 8 °C
  • manual program
  • day / night program
  • temporary illumination of the display
  • additional control based on floor temperature (if wired NTC floor sensor is used)
  • heating / cooling function
  • non-voltage No/Com/Nc relay (max. 1A/230V/AC)
  • wired communication

Controller equipment:

  • built-in room sensor
  • power supply: 230V 50Hz

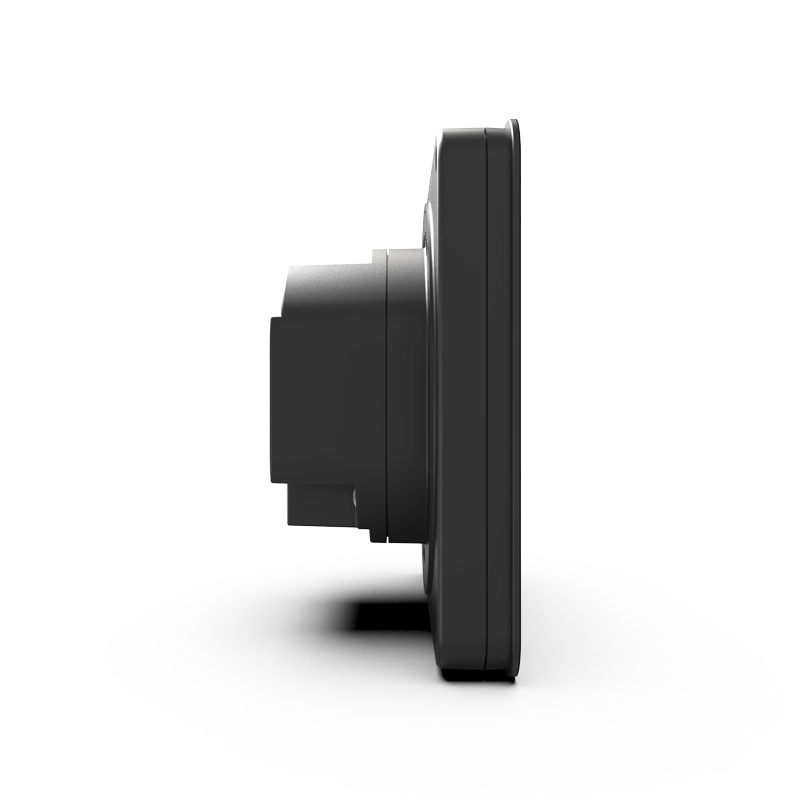

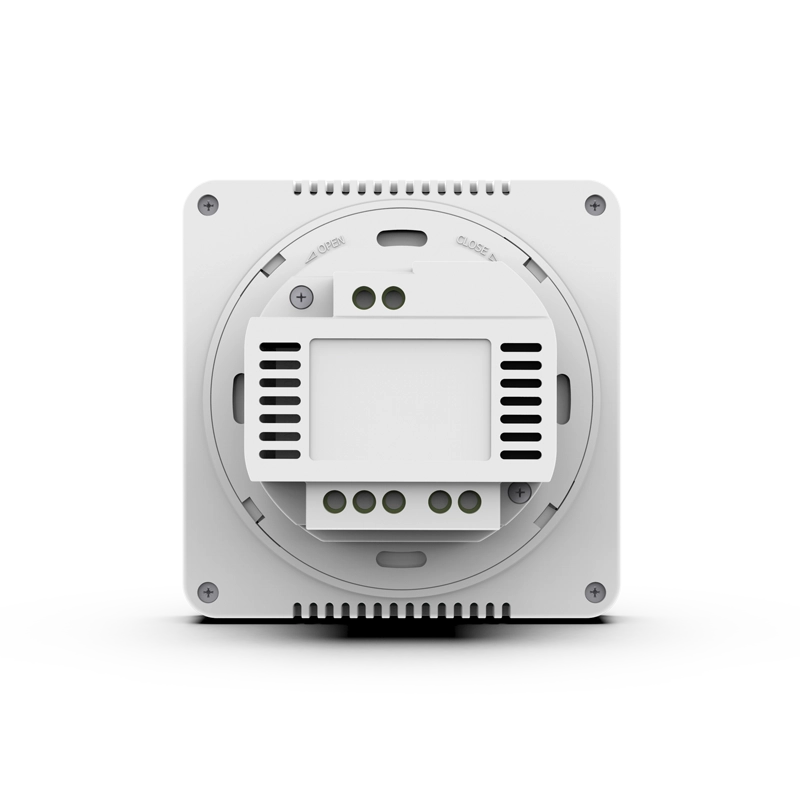

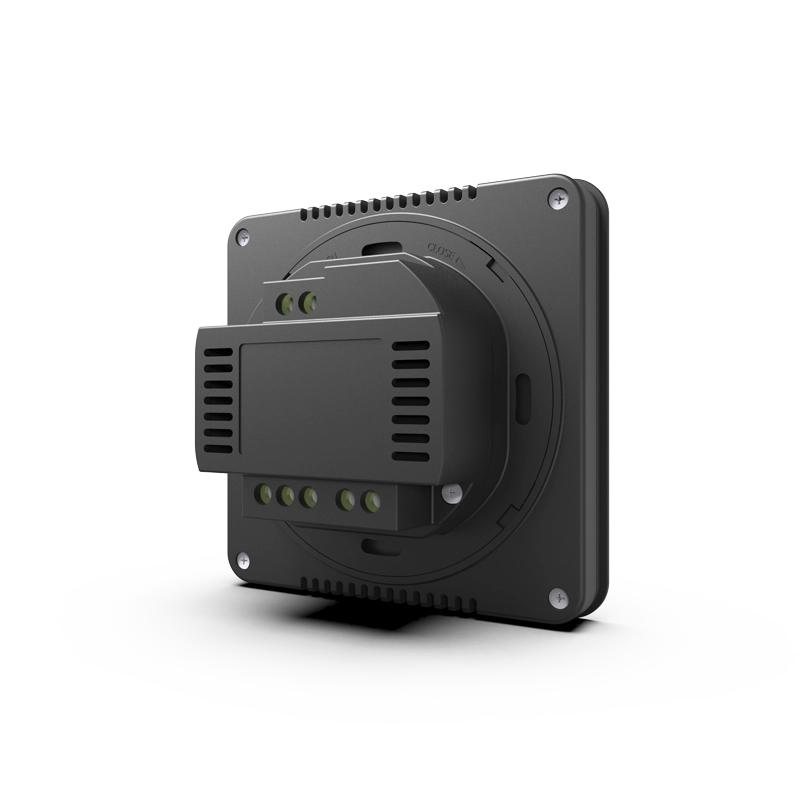

  • flush mounted in a 60mm box



Product parameters

Specification Unit
Dimensions mm 84x84x13
