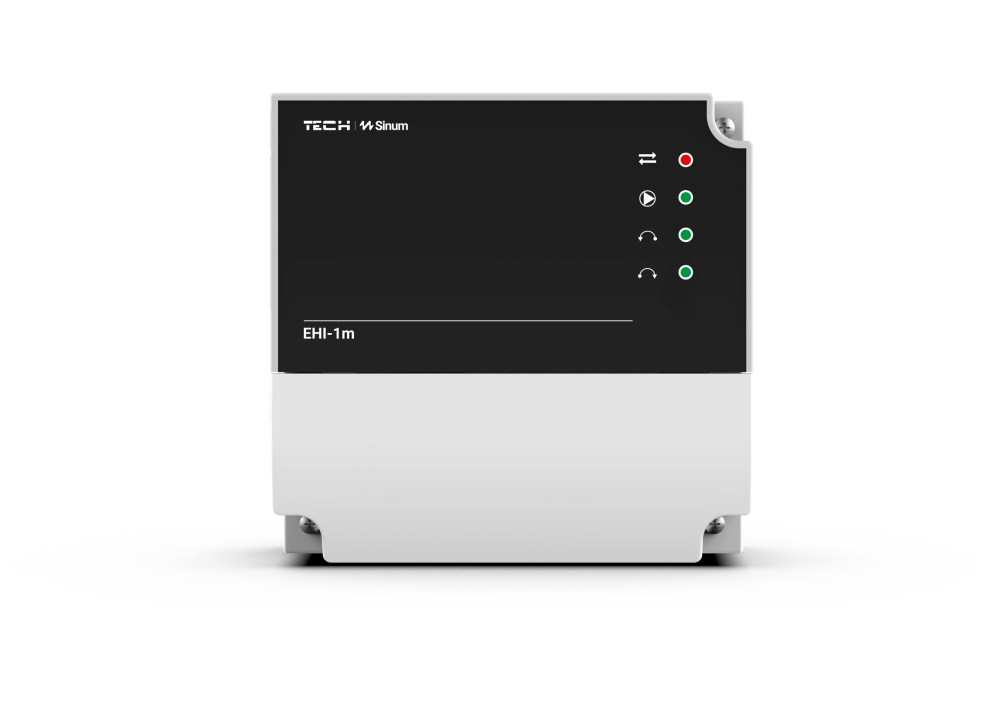

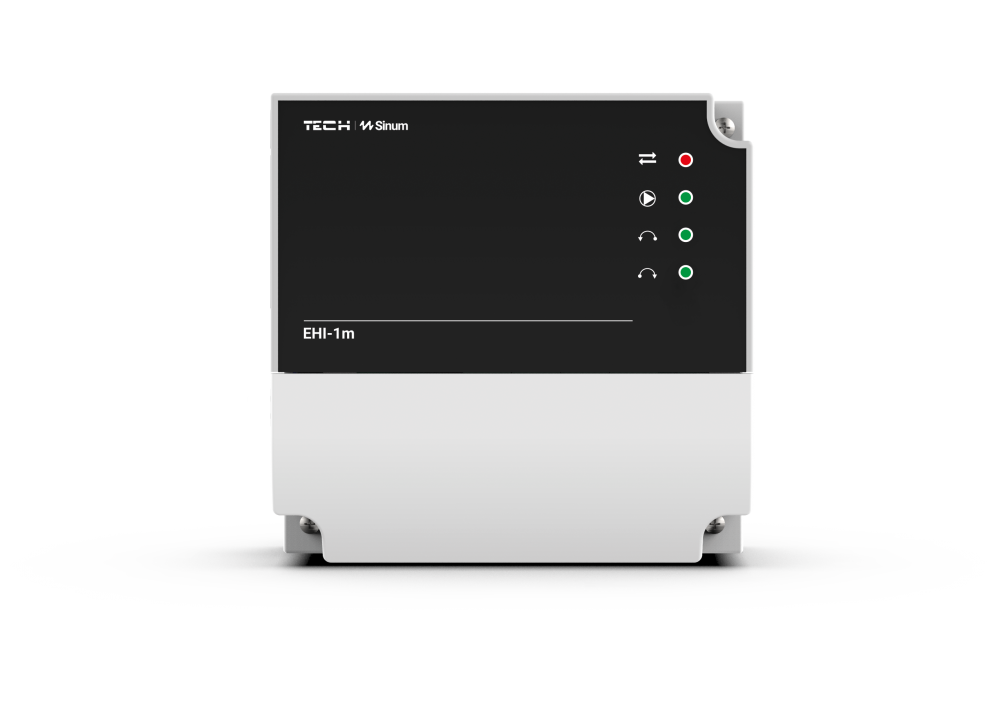

EHI-1m

Extension module for EHI-2
Accessories - EHI-1m

Product description

Characteristics:

  • Control of a single three- or four-way mixing valve
  • Control of pump operation
  • Return temperature protection
  • Weather-compensated and weekly control
  • Cooperation with a room controller via RS communication or binary (on/off) signal
  • Control of a volt-free contact

Product parameters

Specifications Value
Power supply 230V AC
Power consumption 2 W
Operating temperature 5-50
Max. pump output load 0,5 A
Max. valve output load 0,5 A
Temperature sensor measuring range -30÷99 °C
Protection fuse 6,3 A

Files to download

Manuals

Warranty card
