DIM-S1m 230m1

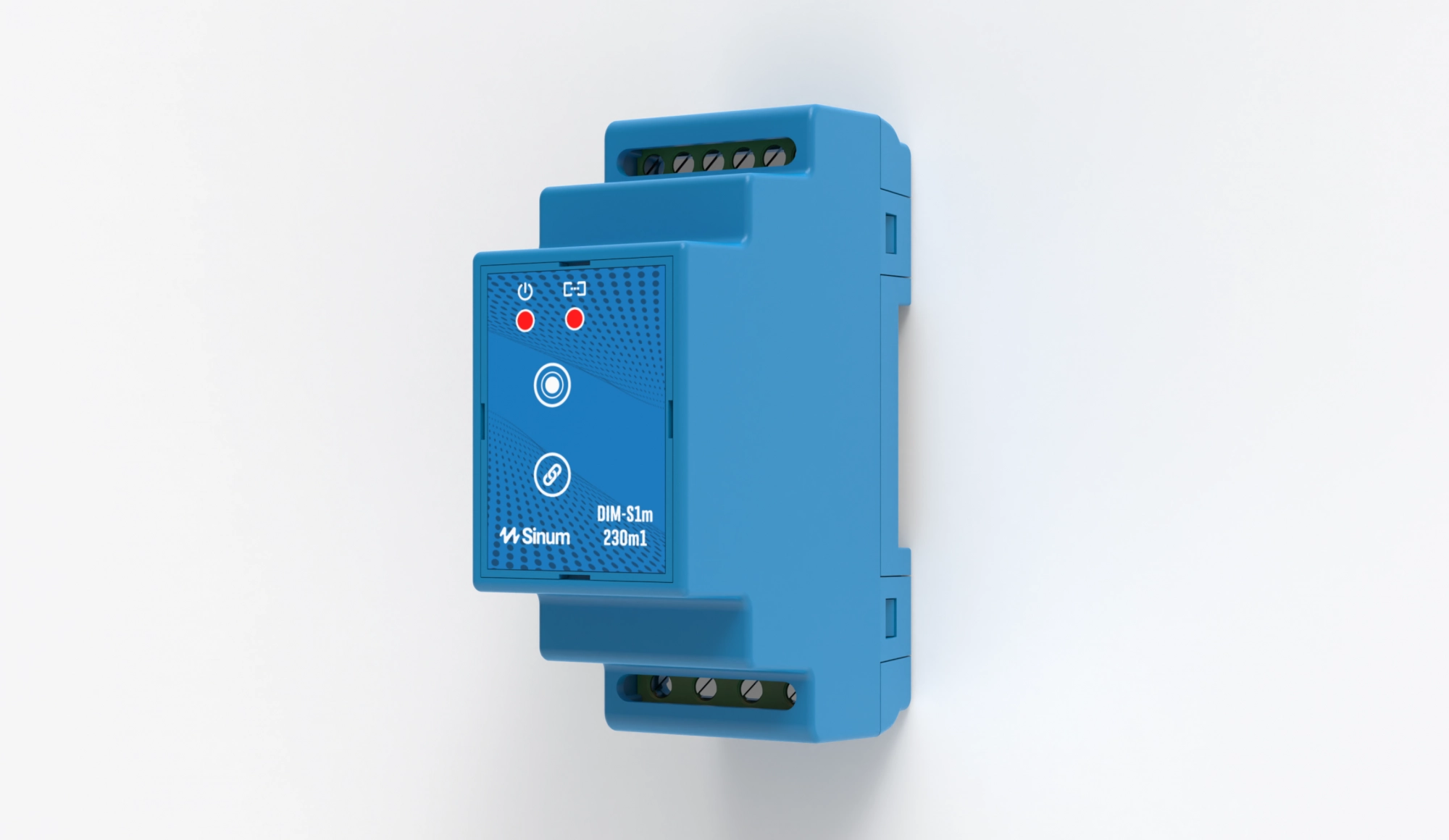

Device Description

• smooth brightness control of lighting
• control via the Sinum system
• support for external wall switches
• multiple switch operating modes
• light source calibration
• wired SBUS communication
• DIN rail mounting

The DIM-S1m 230m1 dimmer provides smooth brightness adjustment for dimmable light sources. It can be controlled using the Sinum application or via wall switches (S1, S2) connected to the module, which are configured in the Sinum application. The application allows the user to choose from several switch operating modes.

Within the Sinum Control Unit, different lighting conditions can be created for any scene or automation. The module is designed for DIN rail installation inside an electrical distribution cabinet. Communication with the Sinum Control Unit is provided via the wired SBUS bus.

Important! The device is designed to operate only with dimmable light sources marked with the "Dimmable" symbol.

Flexible Operating Modes

The device allows different button response modes to be configured. Depending on the selected settings, it can:

• switch lighting on and off,
• increase or decrease brightness,
• smoothly dim and brighten the lighting,
• store and restore the previous brightness level,
• use the button to trigger automation functions defined in the Sinum system.

Once connected to the system, the device can be incorporated into scenes and automation routines, for example to:

• control lighting automatically,
• create custom lighting scenes,
• adjust lighting according to the time of day,
• interact with sensors and other system devices,
• centrally manage the lighting system.

Connection and Communication

Connect the device to the Sinum Control Unit using the SBUS connector (2). Next, enter the IP address of the Sinum Control Unit into a web browser and log in to the system.

From the main panel, navigate to:

Settings > Devices > SBUS Devices > + > Add Device

Then briefly press the registration button (1) on the device to start the registration process.

Device Dimensions

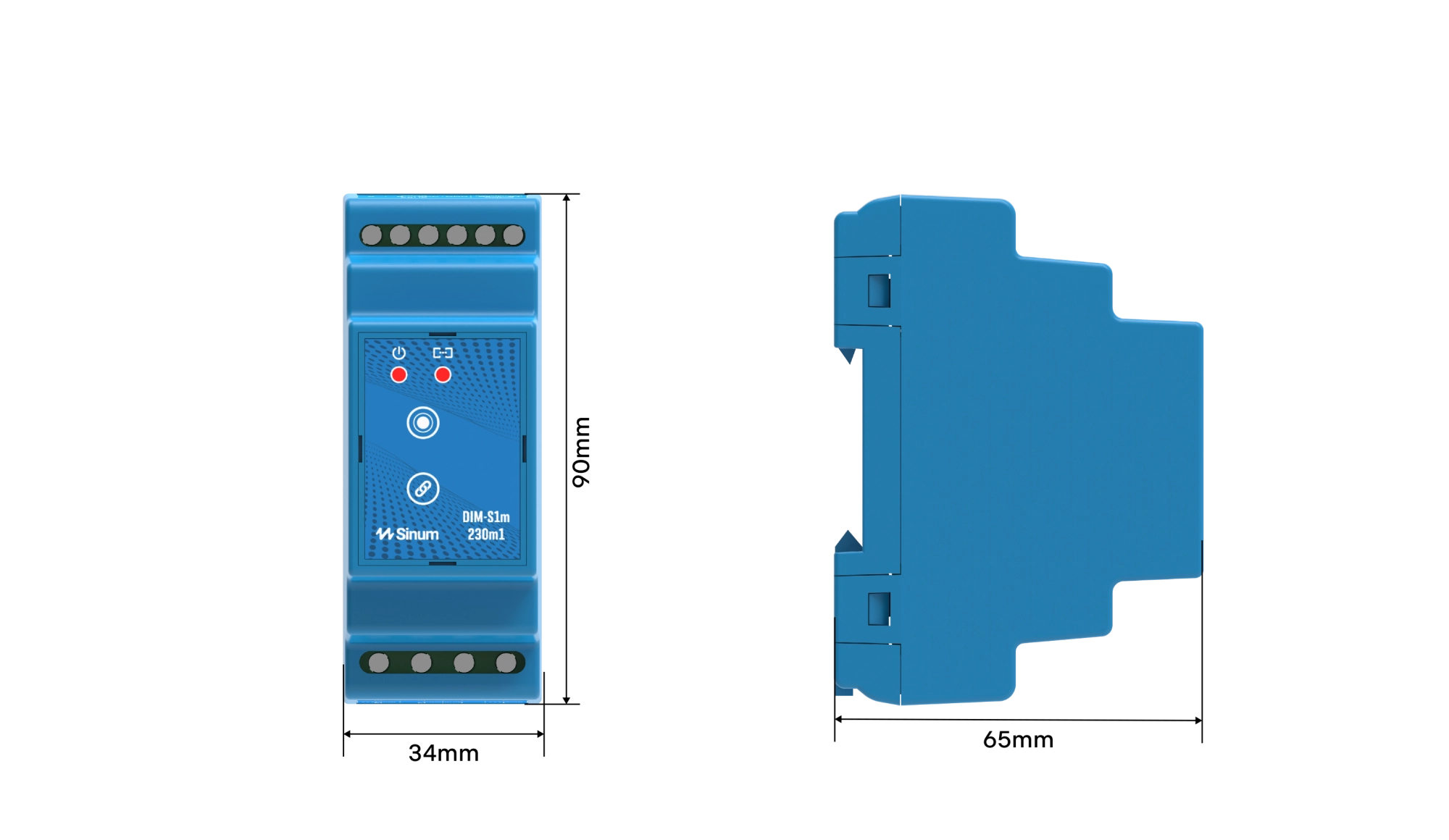

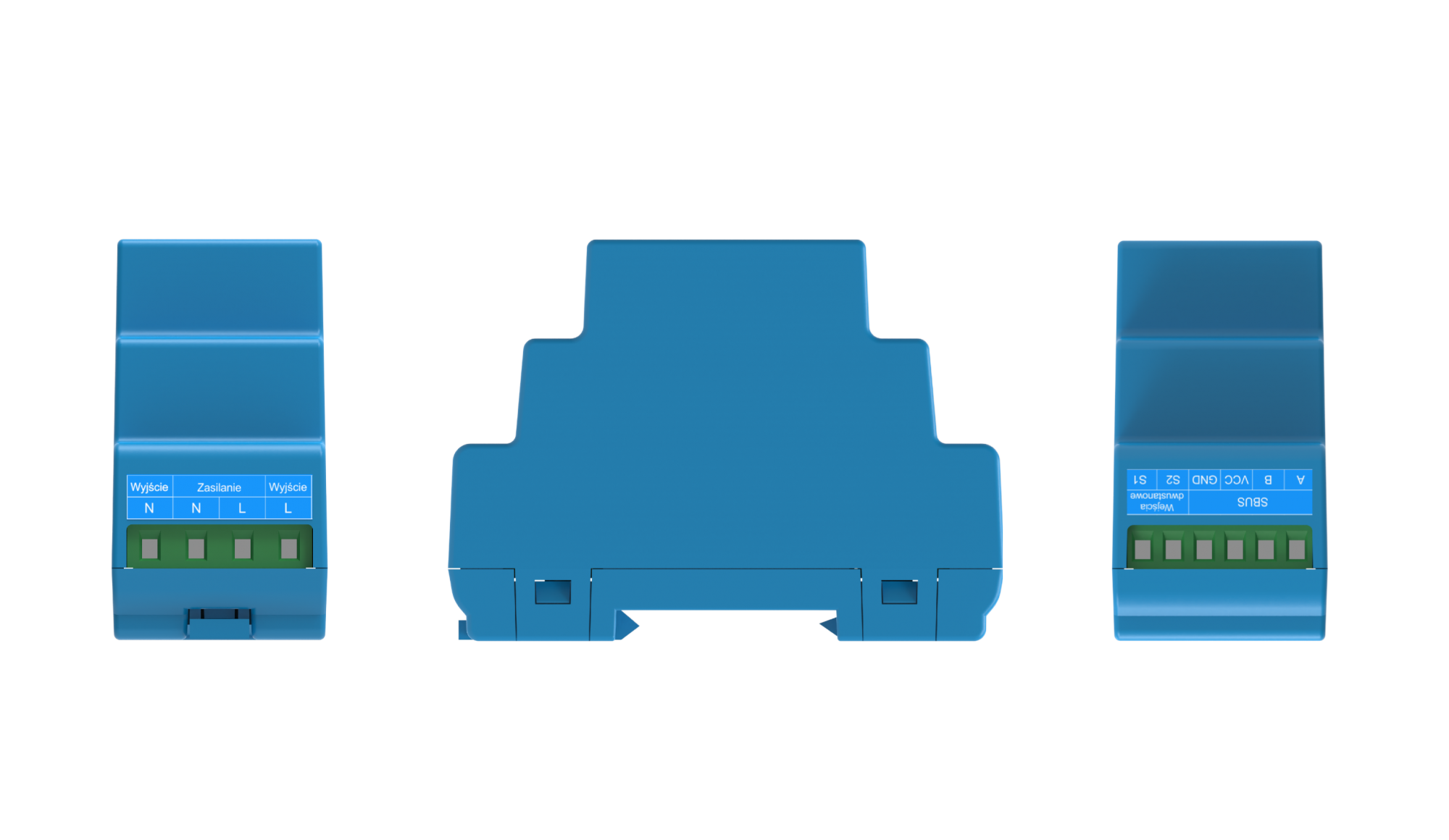

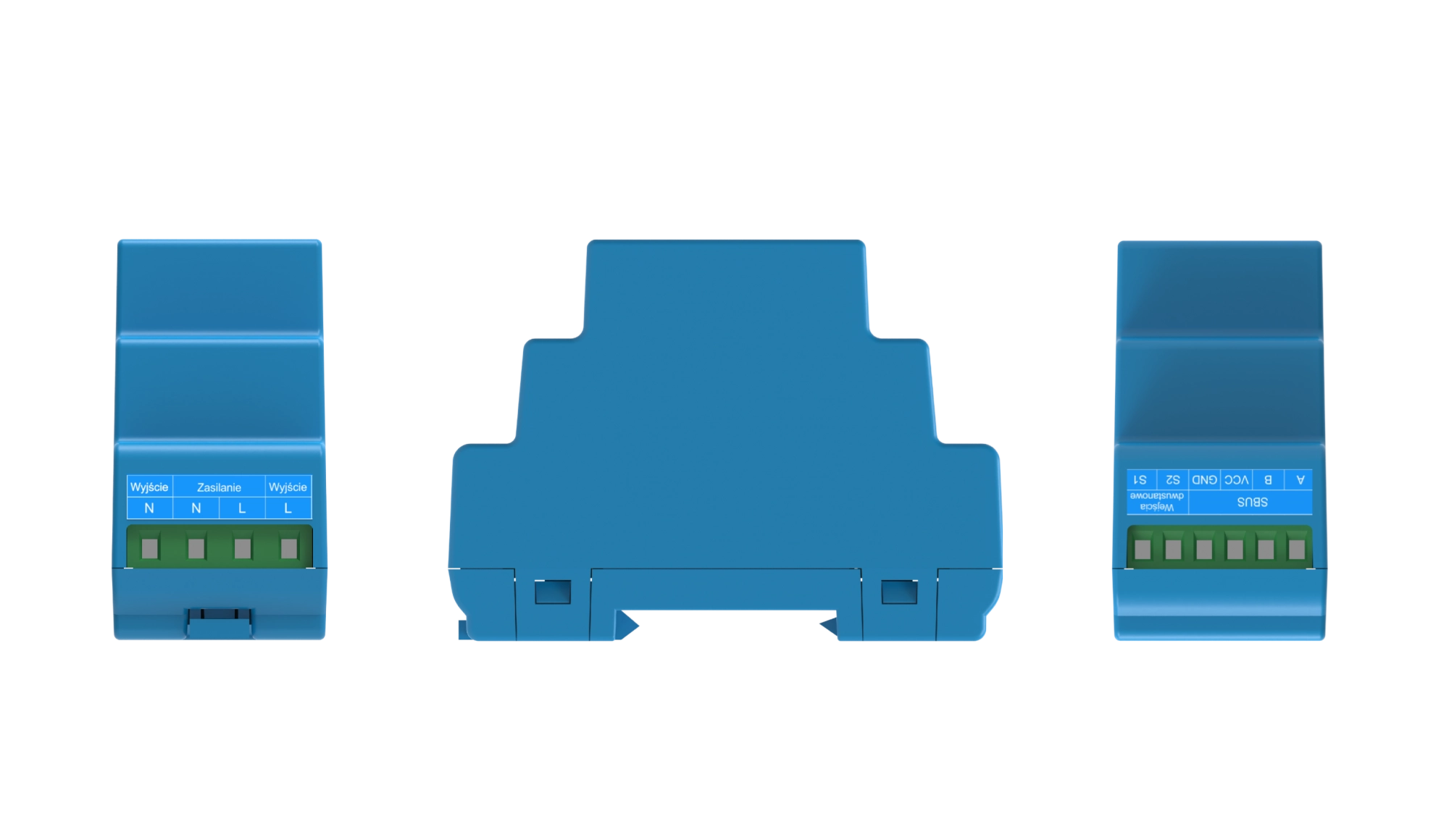

The relay modules feature a compact design, making them ideal for installation on 35 mm DIN rails inside electrical distribution cabinets. Their carefully optimized dimensions ensure a perfect fit in standard distribution enclosures, providing a neat appearance and efficient use of available space.

Dimensions

• Dimensions: 34 × 90 × 65 mm
• Mounting type: 35 mm DIN rail installation in electrical distribution cabinets
