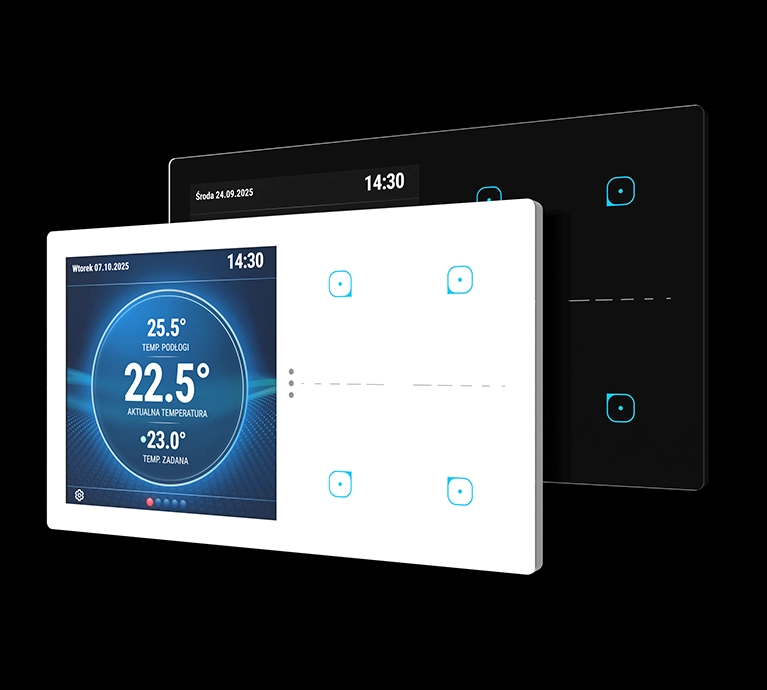

CP-04S Wi-Fi

Control Panel with 4 Touch Buttons

The modern 4-inch touchscreen panel serves as an intuitive control centre for smart homes and building automation systems. Equipped with a touchscreen display and 4 programmable touch buttons, it provides quick and convenient access to frequently used functions.
The panel allows users to configure up to 6 fully customisable screens, tailored to their individual needs and the specific functions of each room. It combines elegant design with maximum functionality.

Key Features

Clear, full-colour 4-inch touchscreen display
Customisation of up to 6 screens for different rooms
Quick control of lighting, blinds, gates, power sockets, and other devices
Support for automation scenes (e.g. Away, Relax, Night, Movie Mode)
Current weather conditions and weather forecast display
Alarm system control
Monitoring of sensors installed in the system (temperature, humidity, CO₂, window/door opening)
Precise temperature control with current and set temperature display
Wireless Wi-Fi connectivity: IEEE 802.11b/g/n (2.4 GHz)

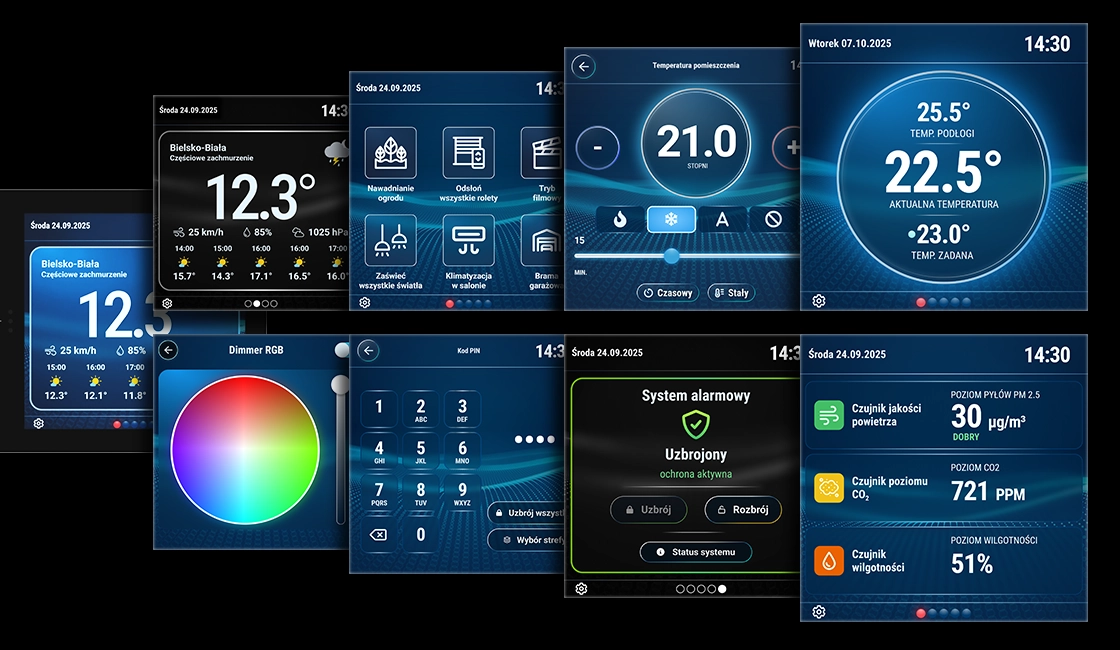

Customise to Your Needs

Clear and intuitive display
Easy-to-read parameters
Scene selection
Sensor data display
Alarm system management
20 screen functions

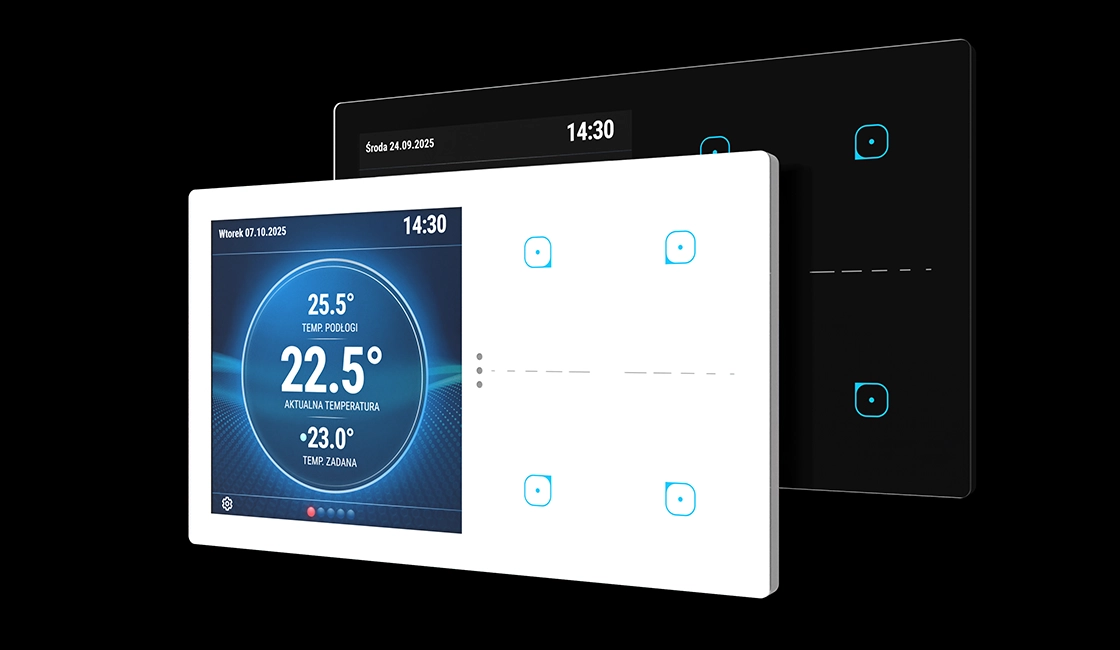

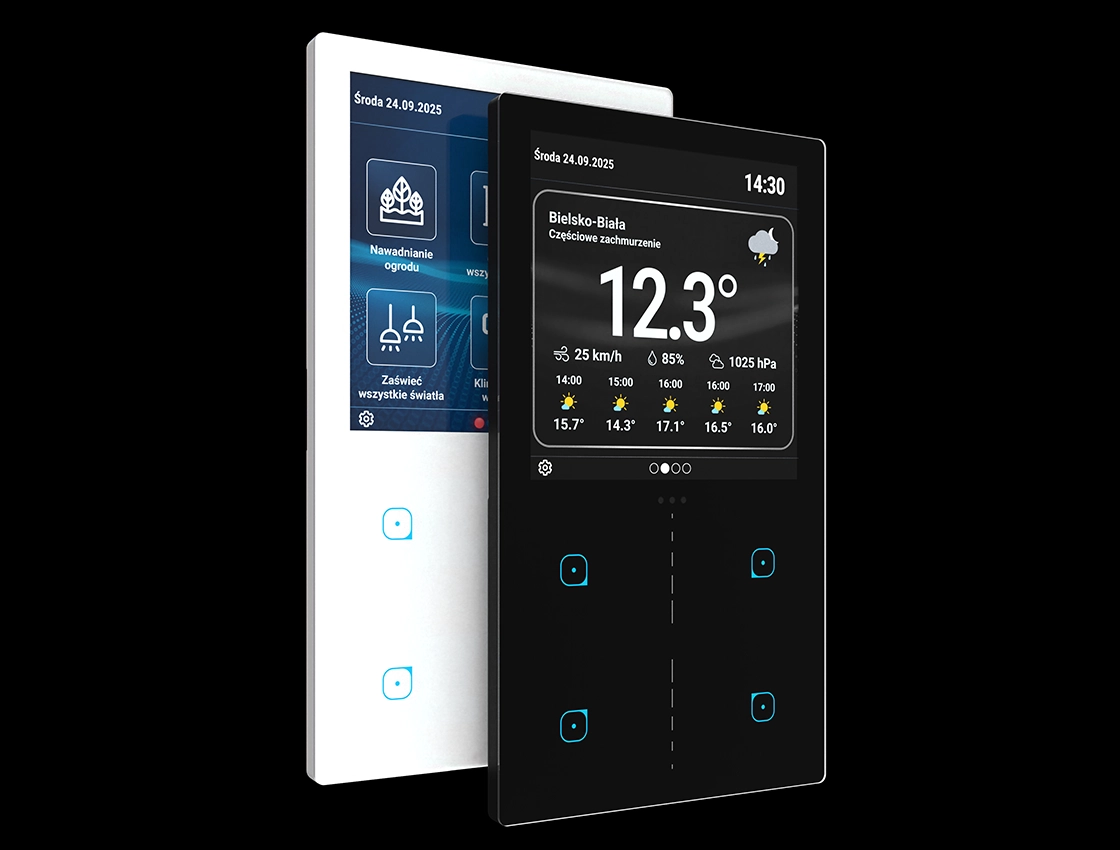

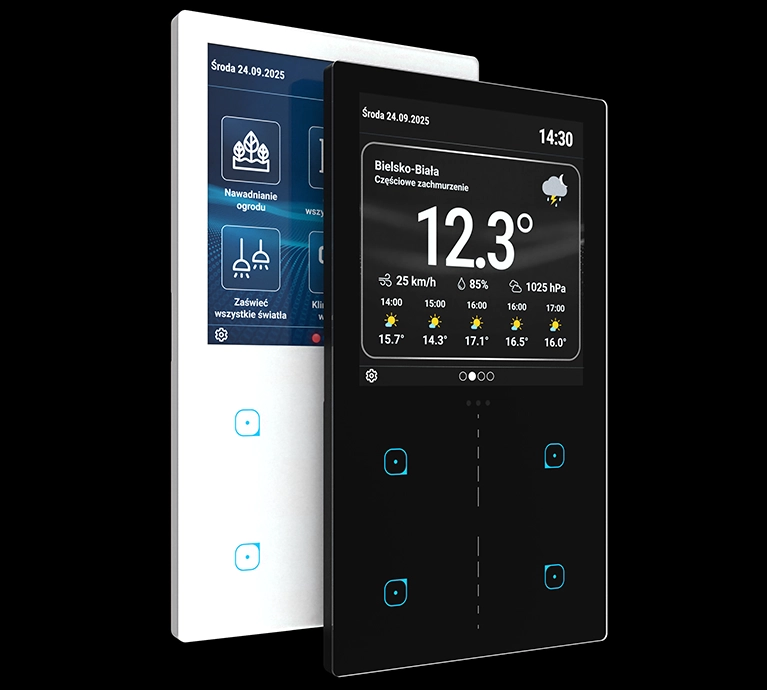

Embrace Modern Design

Choose elegant glass devices that bring a modern touch to any interior. Select from the available colours:

White: Ideal for bright, minimalist interiors, adding elegance and freshness.
Black: Perfect for modern, bold interiors, bringing a sophisticated and luxurious touch.

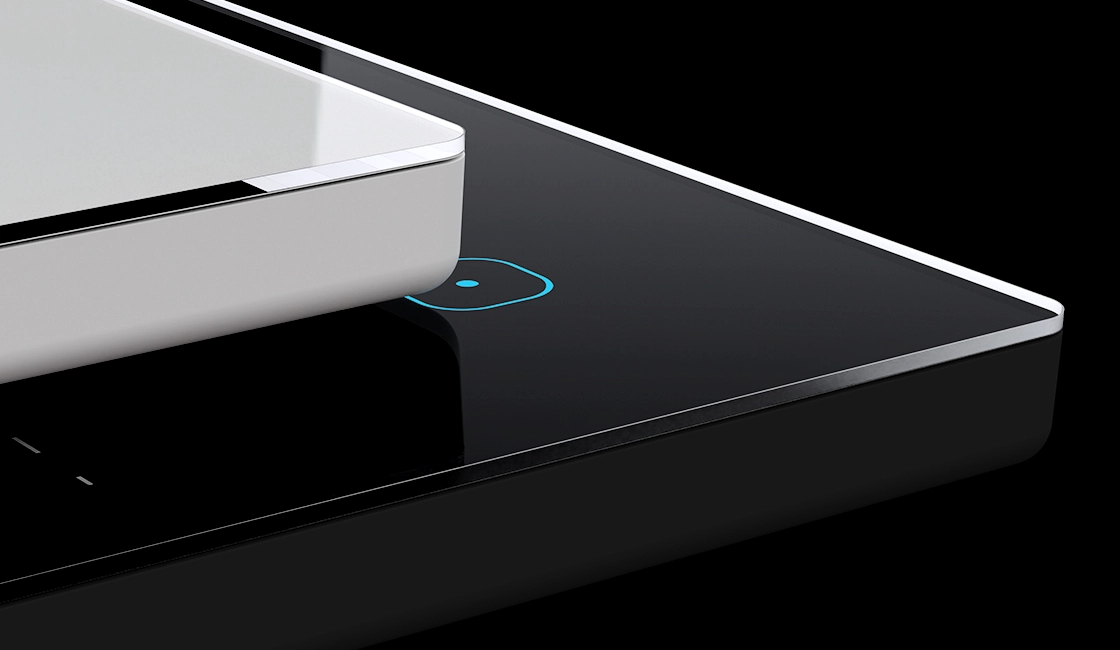

Our glass devices combine modern design with high-quality craftsmanship. The use of durable materials ensures not only an elegant appearance but also resistance to scratches and damage.

Thanks to easy installation and compatibility with standard electrical installations, setup is quick and hassle-free.

Choose our glass devices to bring exceptional style and modern elegance to your interior.

Installation

Our devices have been designed with ease of installation in mind. They require flush mounting in a double 60mm diameter electrical installation box, ensuring an elegant appearance and a discreet fit against the wall.

Mounting Type: Flush-mounted
Required Installation Box: Double-gang electrical installation box, 60mm diameter

Thanks to their precisely engineered design, installation is quick and easy, allowing our devices to blend seamlessly into any interior. The straightforward installation process ensures that you can enjoy modern design and functionality without unnecessary complications.

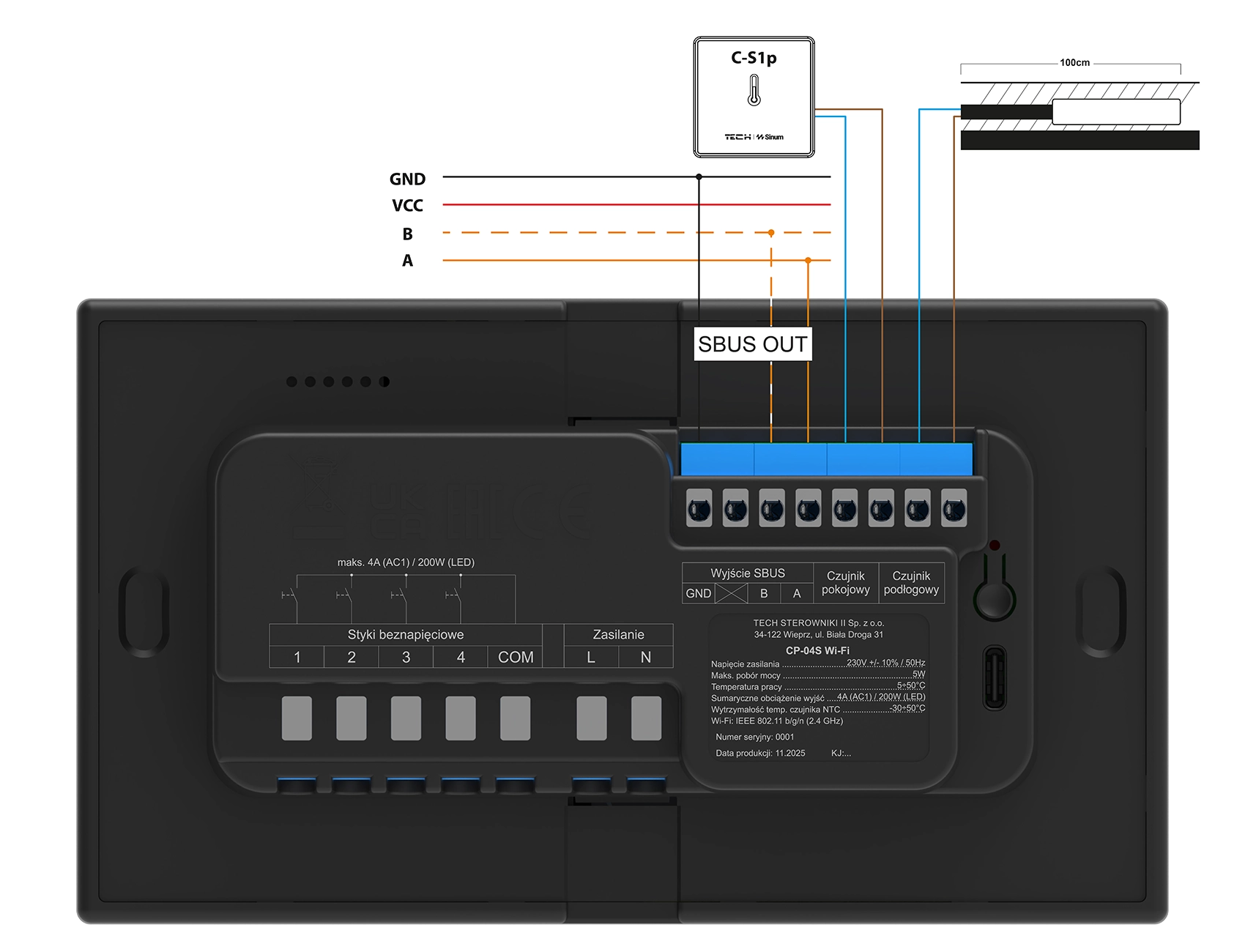

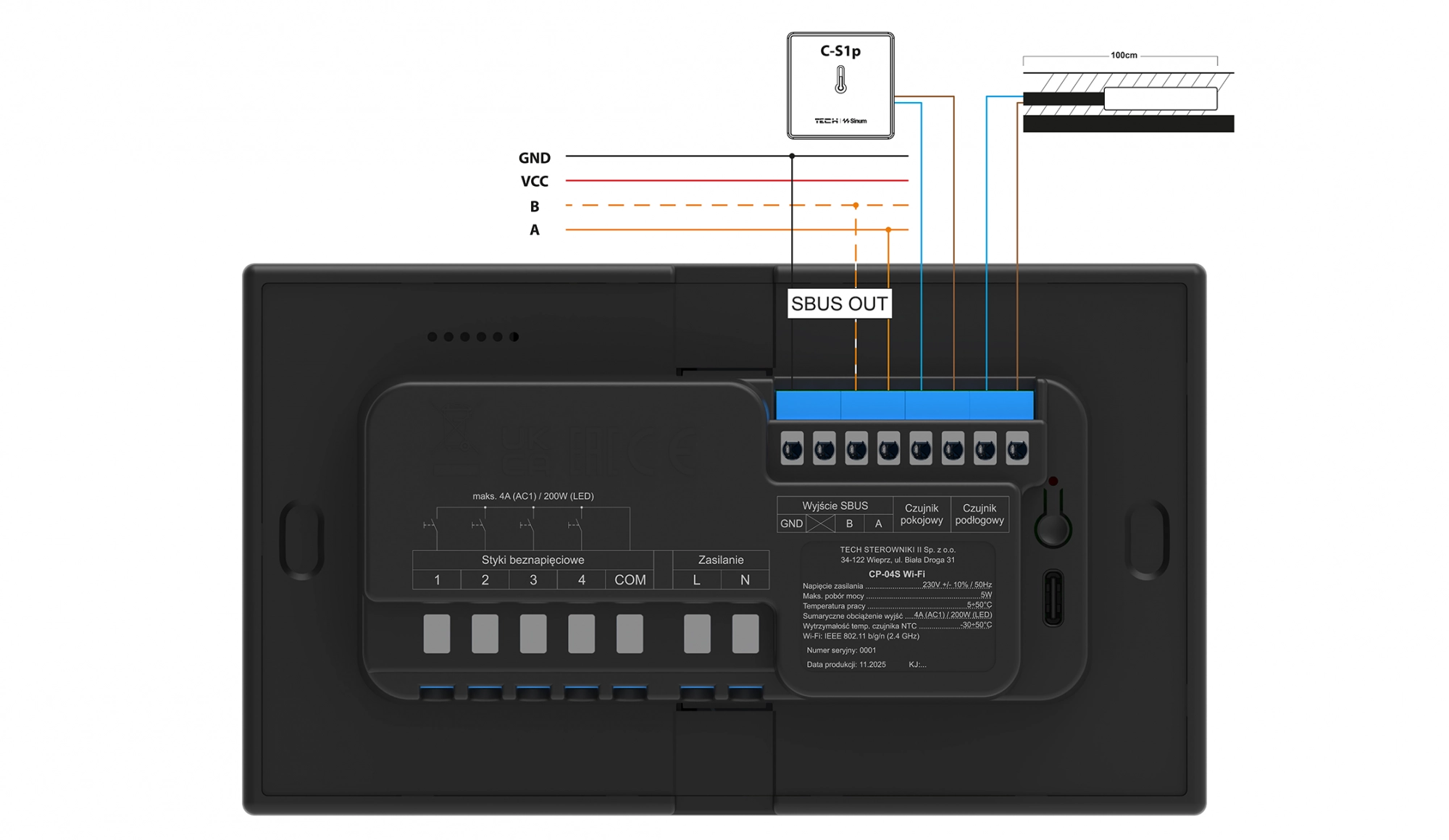

Wiring Diagram

The CP-04S Wi-Fi control panel communicates with the Sinum Central Unit via Wi-Fi: IEEE 802.11b/g/n (2.4 GHz) and is powered by 230 V AC.
The device supports the connection of optional temperature sensors, including room and floor temperature sensors.
The panel is designed for flush mounting in a double-gang electrical installation box with a diameter of 60 mm (Ø60 mm).
Correct wiring of the power supply and temperature sensors ensures full functionality of the control panel.

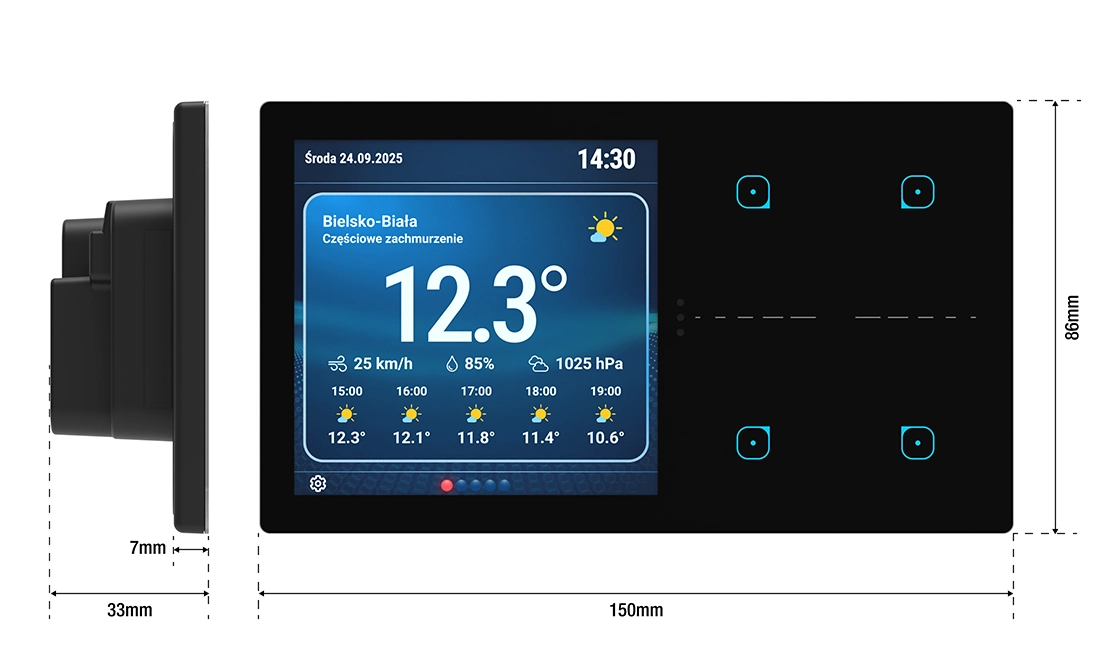

Device Dimensions

Thanks to their precise dimensions, the devices fit perfectly into standard electrical installation boxes, ensuring an elegant finish and seamless integration.

Dimension Details

Dimensions: 150×86×33mm
Mounting Type: Flush-mounted in a double-gang electrical installation box (Ø60mm)

Remote Control

With the Sinum app, you can manage your smart home system anytime, anywhere. The app provides full control over lighting, blinds, and other home devices, ensuring convenience and energy efficiency.
Its intuitive interface makes it easy to create schedules, configure automation scenarios, and monitor energy consumption.
Additionally, the Sinum app offers real-time notifications and alerts, enhancing security and ensuring maximum comfort and peace of mind.

Product parameters

Parameter	Value
Communication	Wireless Wi-Fi: IEEE 802.11b/g/n (2.4 GHz)
Supply Voltage	230 V AC
Maximum Power Consumption	5 W
Operating Temperature	5–50°C
Temperature Measurement Range	-30 to +50°C
Total Output Load	4 A (AC-1) / 200 W (LED)
