CP-04Cm

Device description

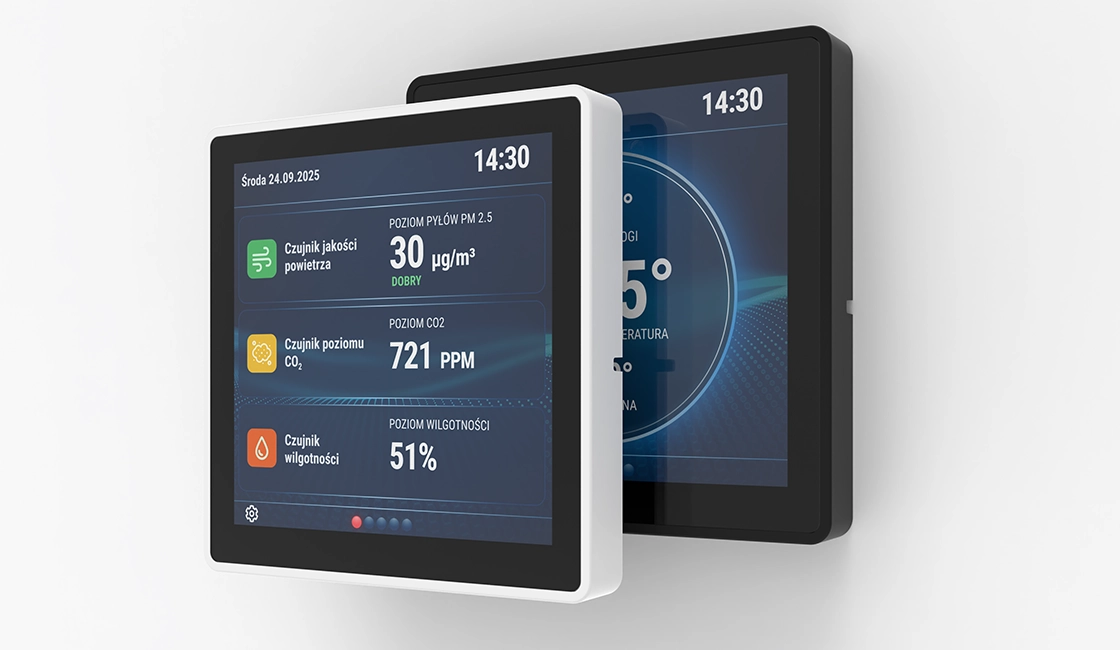

• 4" color touchscreen display
• Control of selected scenes (e.g., opening blinds, driveway gate, etc.)
• Weather forecast display for a specified location
• Built-in temperature control function
• Ability to control selected lighting switches
• Ability to view parameters from external sensors
• Configurable shortcut screen for favorite scenes
• Support for air temperature sensor (wired/wireless)
• Support for floor temperature sensor
• Interchangeable frames (white or black) included
• Flush-mounted installation

Full functionality

The CP-04m panel extends the functionality of the Sinum Control Unit, offering direct interaction with the system in a given room.

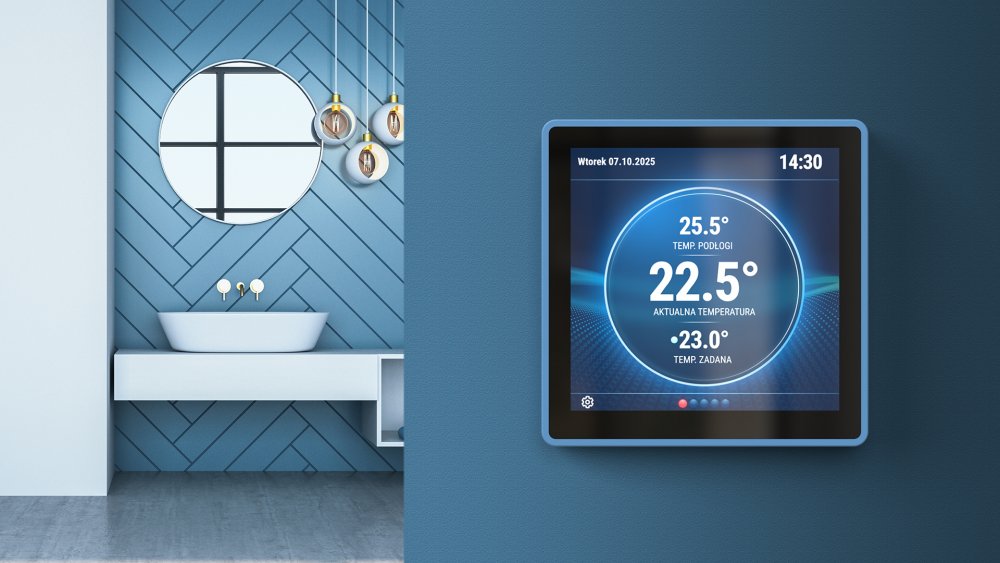

• Heating zone management: Full control over the set temperature with the ability to define hysteresis and limits (min/max). Supports calibration of the built-in room sensor and external floor sensor (NTC).
• Scene control: Ability to create and trigger shortcuts to favorite scenes configured in the Sinum Control Unit (e.g., "Leaving home," "Relax").
• Parameter monitoring: Displays current system data, including the weather forecast retrieved by the Control Unit.
• Interface personalization: Configuration of display parameters (brightness, screensaver, themes) and access protection via PIN code (auto-lock).

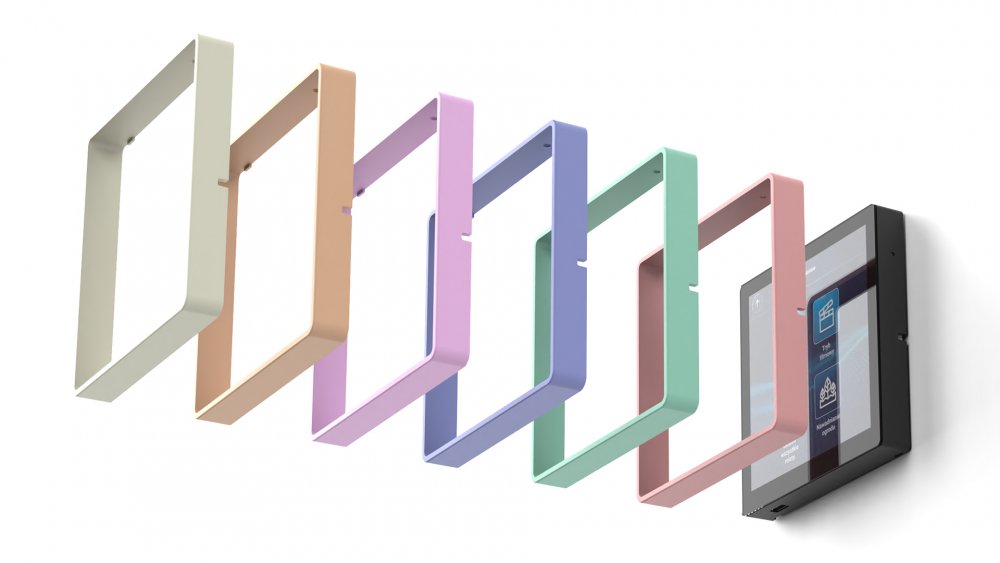

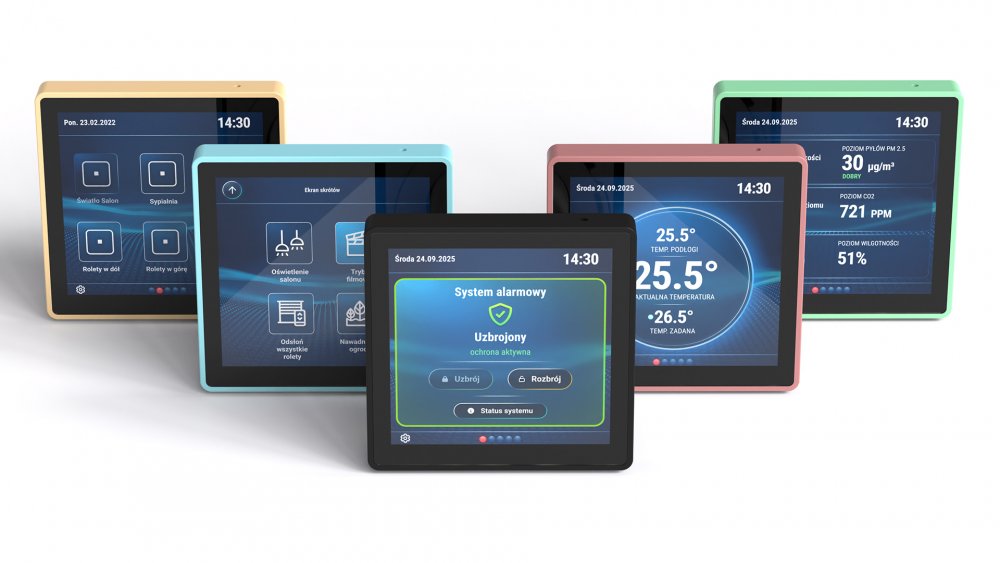

Choose the perfect color scheme

We offer a carefully selected RAL color palette, allowing you to match the frame to any interior and style. Choose from subtle beiges, trendy greens, elegant navies, and deep shades of red.
Each color is described with a name that reflects its character, making your choice easier:

• Ivory (RAL 1013) – light, delicate, and timeless
• Warm Cashmere (RAL 7032) – harmonious beige with a soft finish
• Grey-Beige (RAL 1019) – versatile, natural shade
• Warm Graphite (RAL 7006) – elegant and striking
• Pistachio (RAL 6019) – fresh and subtly pastel
• Sage (RAL 6021) – green with a gentle, natural tone
• Navy (RAL 5000) – classic, deep blue shade
• Muted Peach (RAL 3012) – warm, unobtrusive pink
• Emerald (RAL 6004) – dark, jewel-like green
• Dark Sage (RAL 6011) – elegant, muted green
• Bordeaux (RAL 3004) – deep, classic red
• Wine (RAL 4004) – intense, bold burgundy

Precise temperature measurement

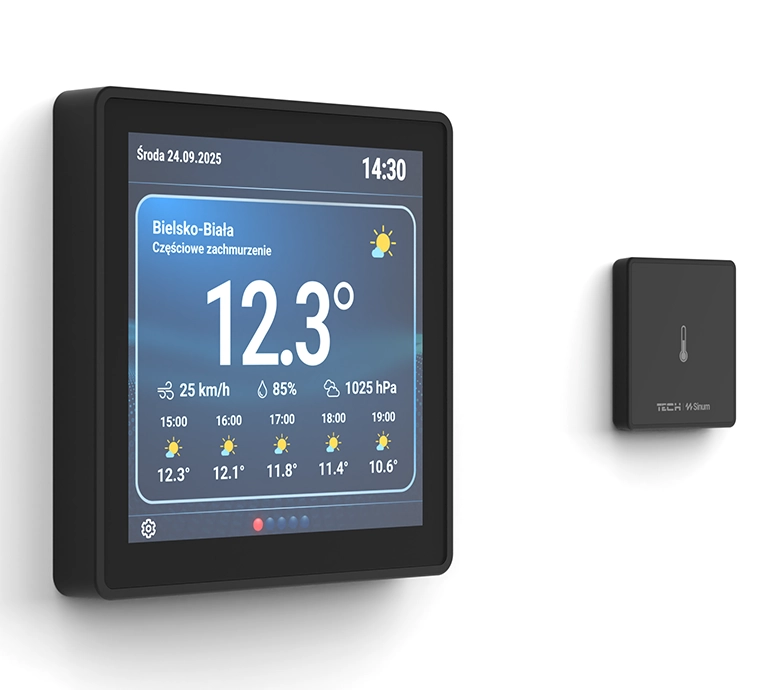

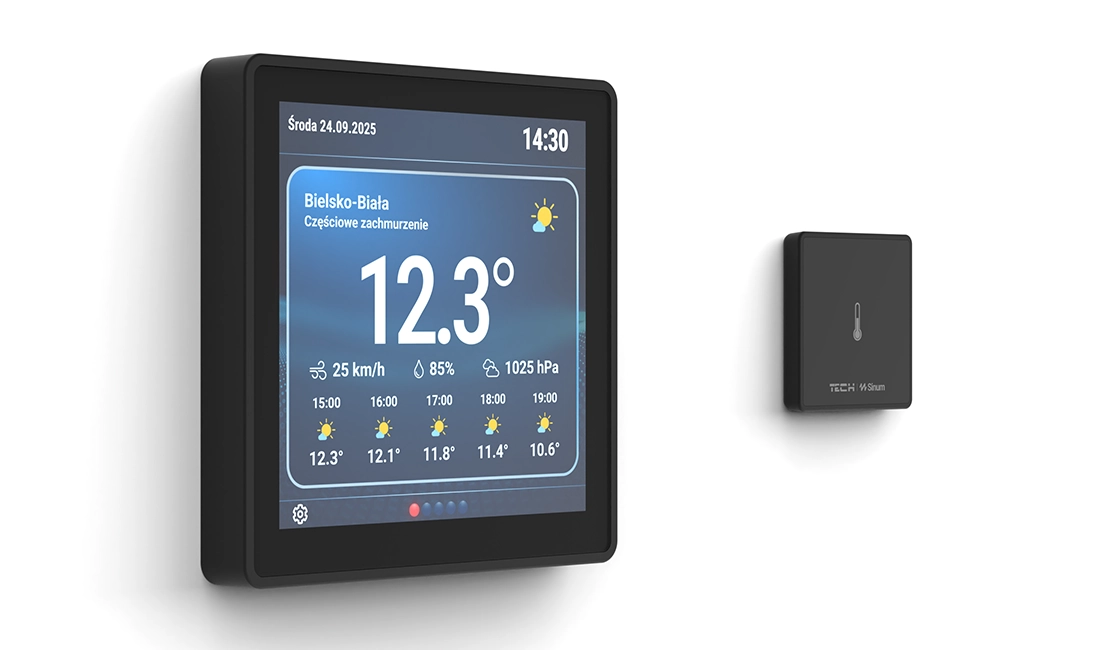

The CP-04Cm control panel has been designed for immediate and efficient temperature management in your home. To ensure the highest precision, the CP-04Cm comes with a dedicated wired mini temperature sensor - C-S1p. With the included C-S1p sensor, you gain:

• Accurate temperature readings: The C-S1p enables precise air temperature measurement, allowing the Sinum system to manage your heating efficiently.

• Discreet design: The sensor (36×36×5mm) is extremely compact and flush-mounted (installation box included), blending perfectly with your interior while minimizing visibility.

• Stable operation: The 2-wire wired communication ensures reliable and continuous data transmission to the control panel, guaranteeing the efficiency of your heating system.

* It is also possible to connect a wireless room temperature sensor (e.g., CL-mini, MC-01, C-8r) via Sinum central device.

Full description of the C-S1p sensor

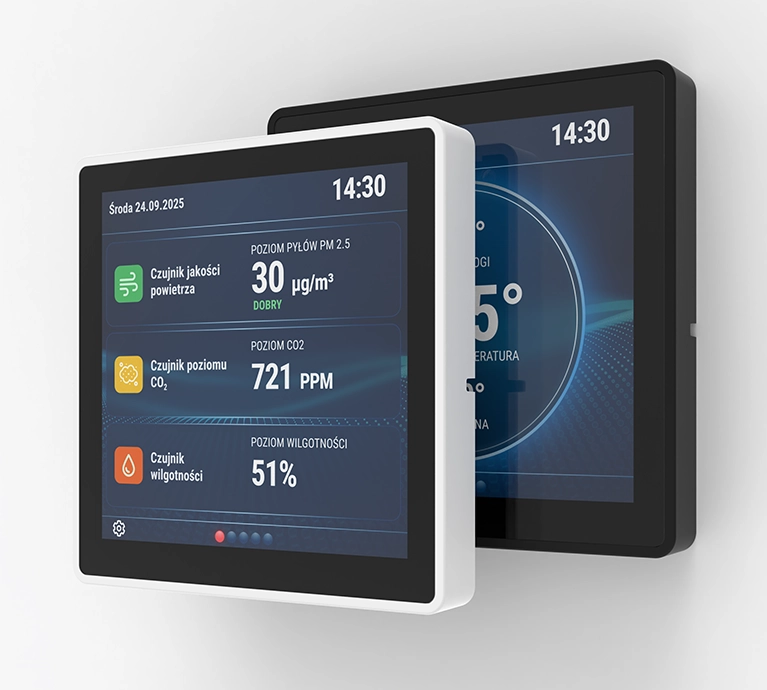

Elegant finish and modern design

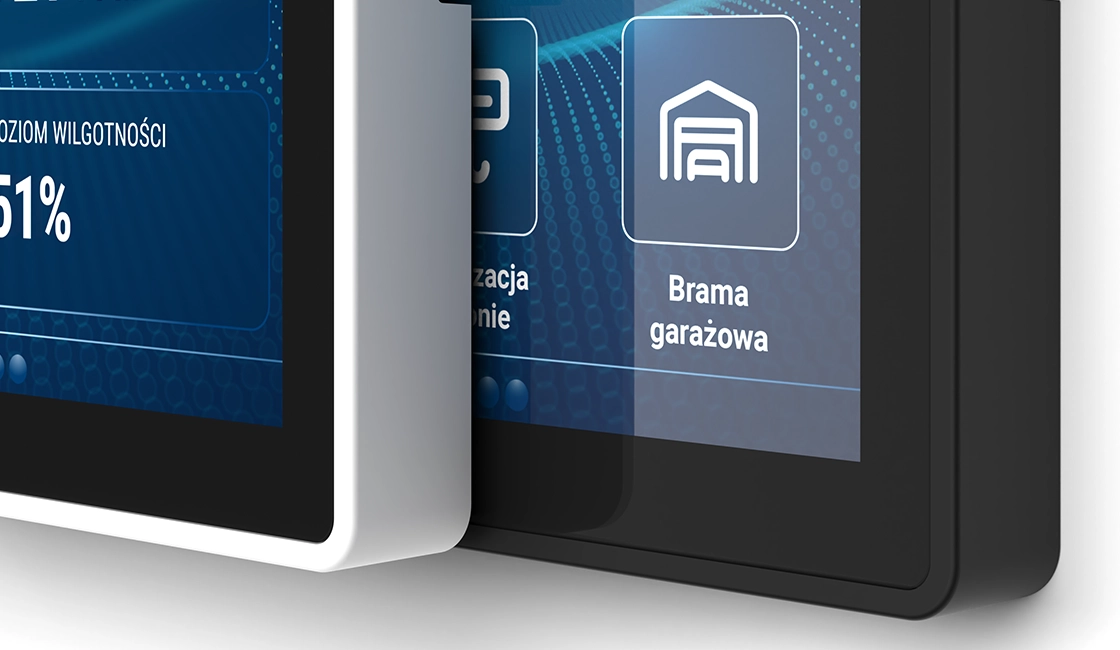

The front of the device features a glass, color touchscreen, giving it a modern and minimalist appearance. The smooth glass surface seamlessly merges with the solid housing, creating an aesthetically pleasing and well-crafted look.

Rounded edges and refined details make the device appear light and stylish. It fits perfectly in both home interiors and modern offices or commercial spaces.

The glass front emphasizes the contemporary character of the device, making it an elegant element of any interior.

Installation and configuration

The device is designed for flush-mounted installation in a standard Ø 60 mm electrical box. Communication with the Sinum Control Unit is wired via the TECH SBUS bus.

Connection diagram:

• SBUS bus: 4-pin screw terminal (GND, VCC, B, A).

• Additional sensors: Dedicated inputs for an external floor temperature sensor and an additional room sensor (recommended installation below or next to the panel at a minimum distance of 10 cm).

• USB port: Micro USB socket for firmware updates.

Device registration in the system is done through the identification mode in the Sinum Control Unit (SBUS Devices tab), allowing the panel to be logically assigned to a specific room and zone.

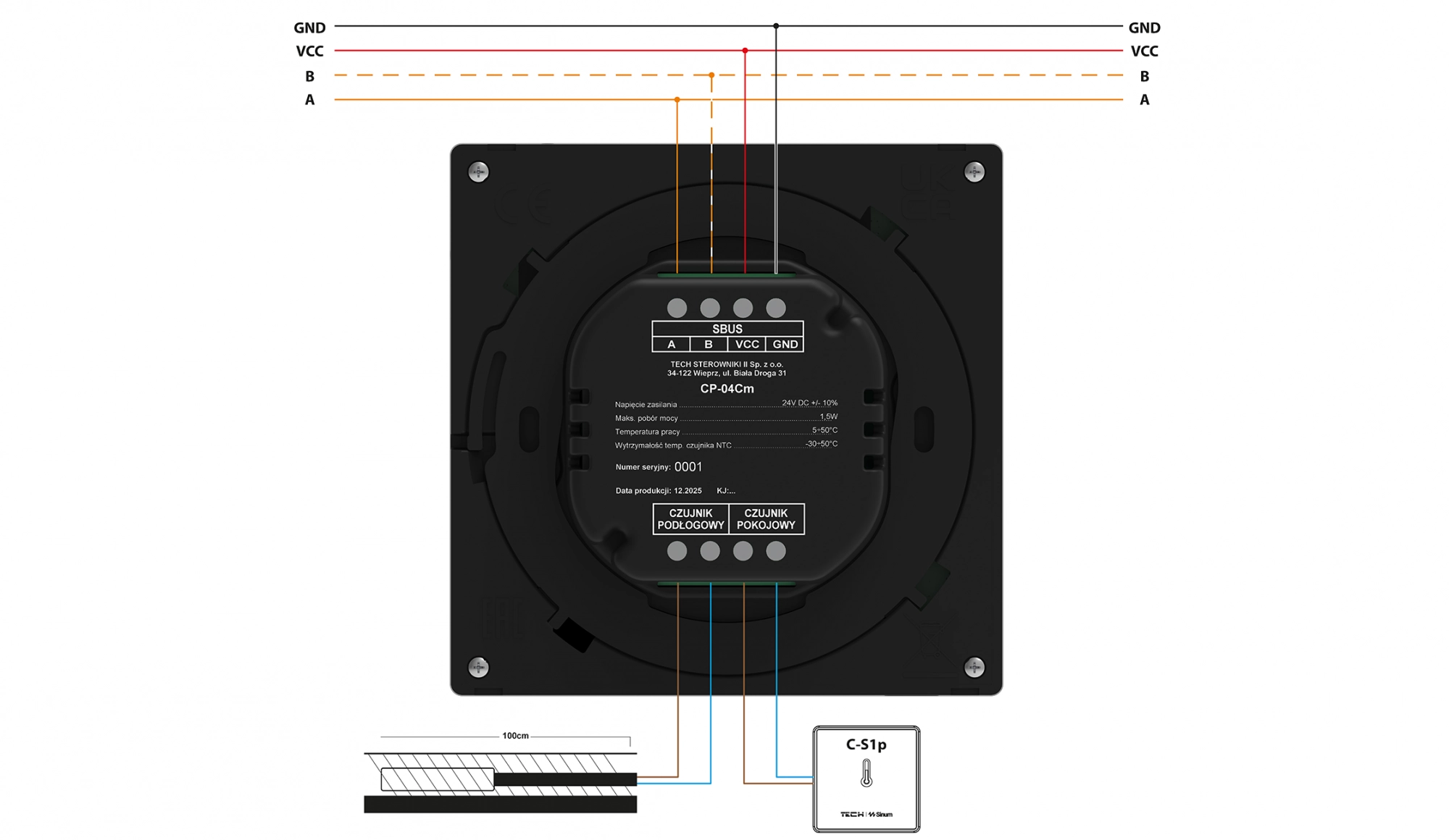

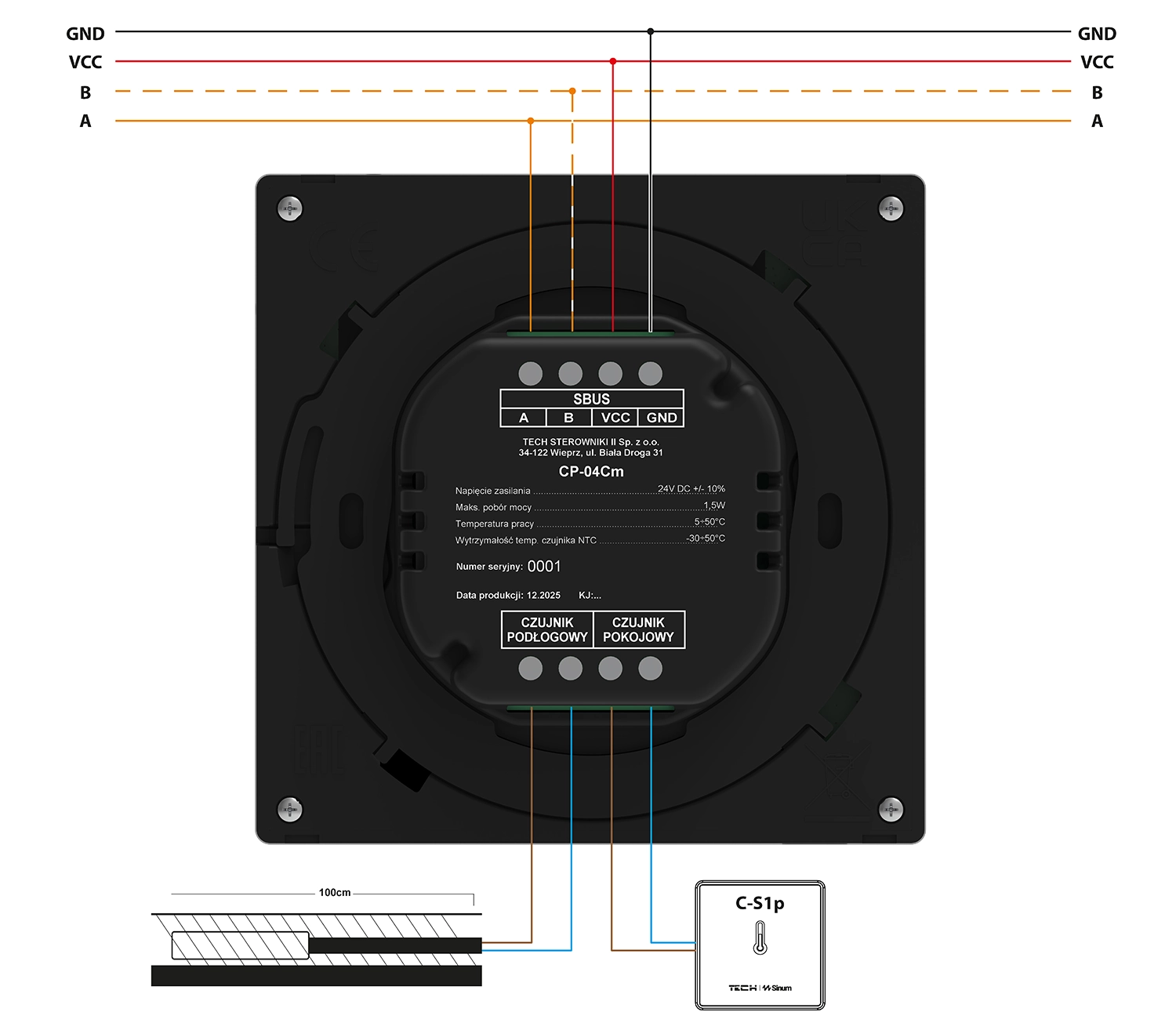

Connection diagram

The CP-04Cm control panel connects to the Sinum system control unit via the SBUS bus and 24V DC power supply. The device allows connection of optional temperature sensors: room and floor. The panel is flush-mounted in a Ø60 mm electrical box. Correct connection of the communication wires and sensors ensures full functionality of the controller.

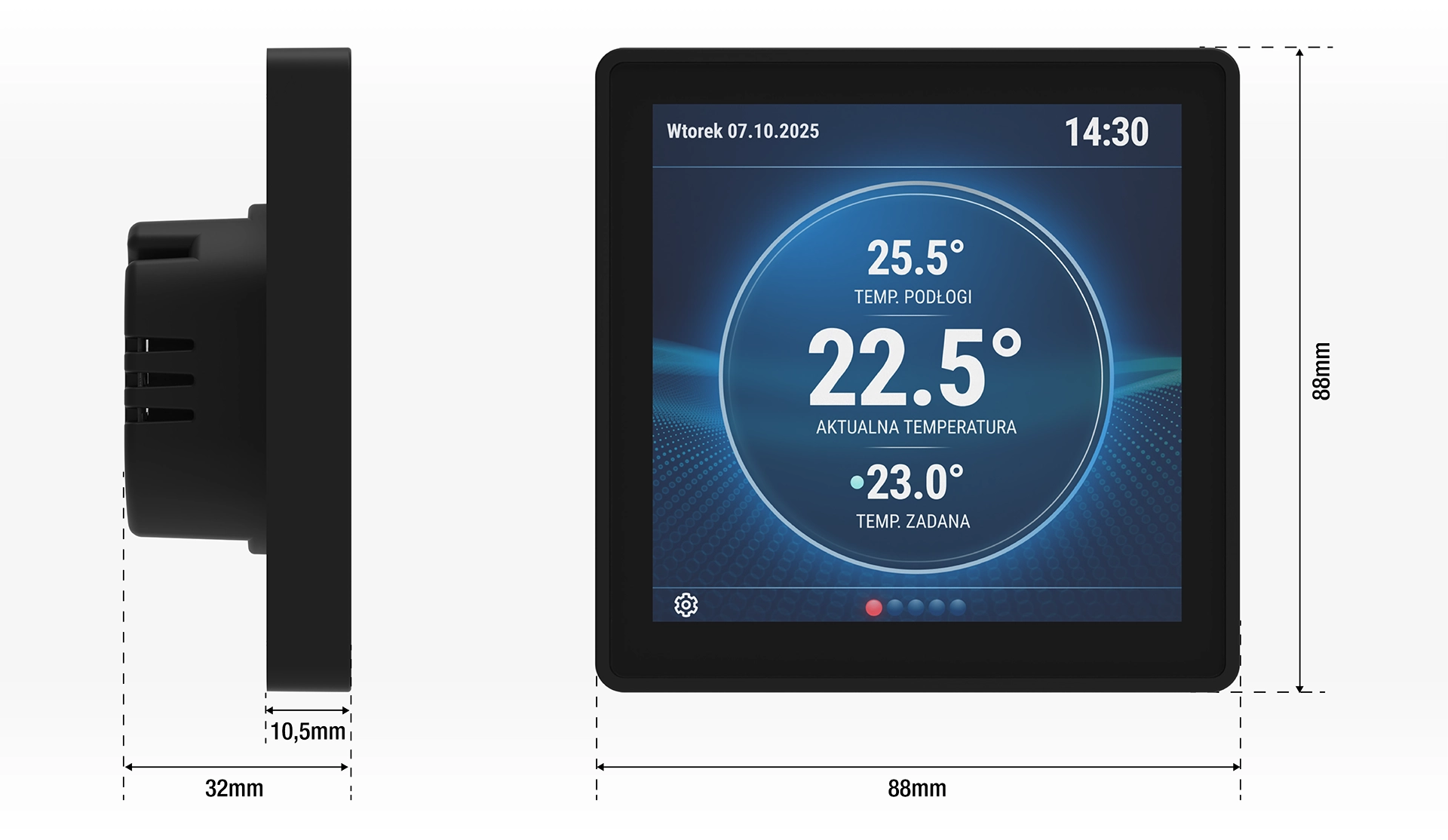

Device dimensions

The CP-04Cm control panel has been designed in a compact form. Its precisely chosen dimensions allow it to fit perfectly into standard mounting boxes, ensuring an aesthetic finish and seamless integration.

Dimension details:

• Dimensions: 88×88×32mm
• Mounting type: flush-mounted in a Ø60mm box

Remote control

With the Sinum app, you can manage your system anytime and anywhere. The app provides full control over lighting, temperature, blinds, and other home devices, offering convenience and energy savings. Its intuitive interface allows easy creation of schedules, scenarios, and monitoring of energy consumption. Additionally, the Sinum app provides real-time notifications and alerts, ensuring complete safety and comfort of use.
