CP-04 Slim

Multifunctional Control Panel

The modern 4-inch touchscreen panel serves as an intuitive control centre for smart homes and building automation systems. Equipped with a touchscreen display, it provides quick and convenient access to frequently used functions.

The panel allows users to configure up to 6 fully customisable screens, tailored to their individual needs and the specific functions of each room. It combines elegant design with maximum functionality.

Key Features

Clear, full-colour 4-inch touchscreen display
Customisation of up to 6 screens for different rooms
Quick control of lighting, blinds, gates, power sockets, and other devices
Support for automation scenes (e.g. Away, Relax, Night, Movie Mode)
Current weather conditions and weather forecast display
Alarm system control
Monitoring of sensors installed in the system (temperature, humidity, CO₂, window/door opening)
Precise temperature control with current and set temperature display

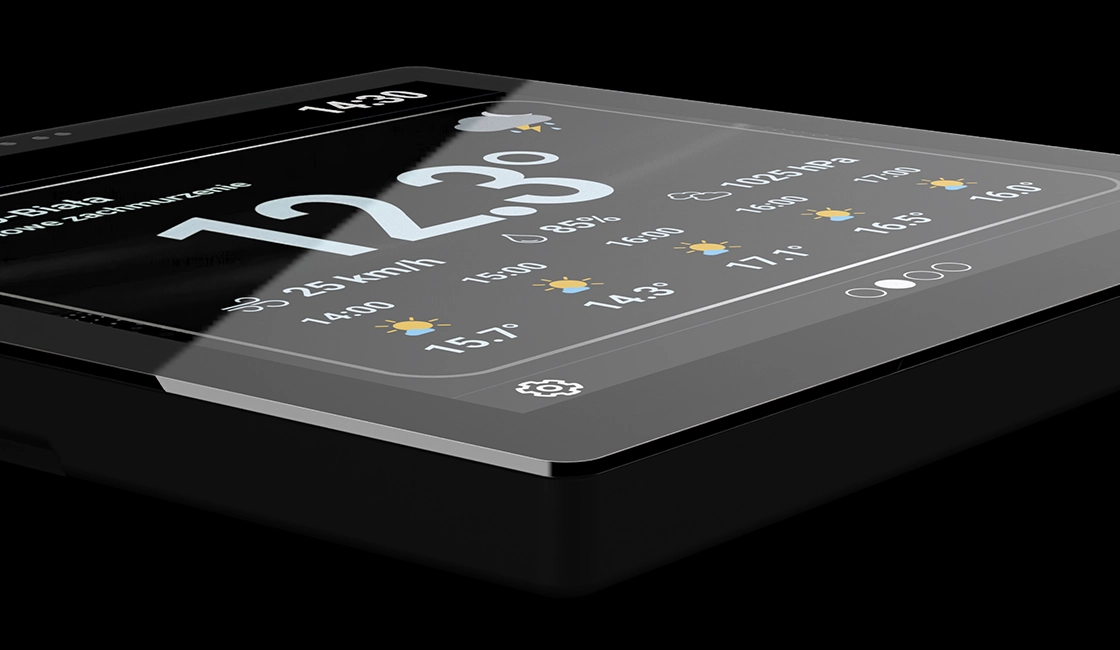

Embrace Modern Design

Choose elegant glass devices that bring a modern touch to any interior.

Our glass devices combine modern design with high-quality craftsmanship. The use of durable materials ensures not only an elegant appearance but also resistance to scratches and damage.

Thanks to easy installation and compatibility with standard electrical installations, setup is quick and hassle-free.
Choose our glass devices to bring exceptional style and modern elegance to your interior.

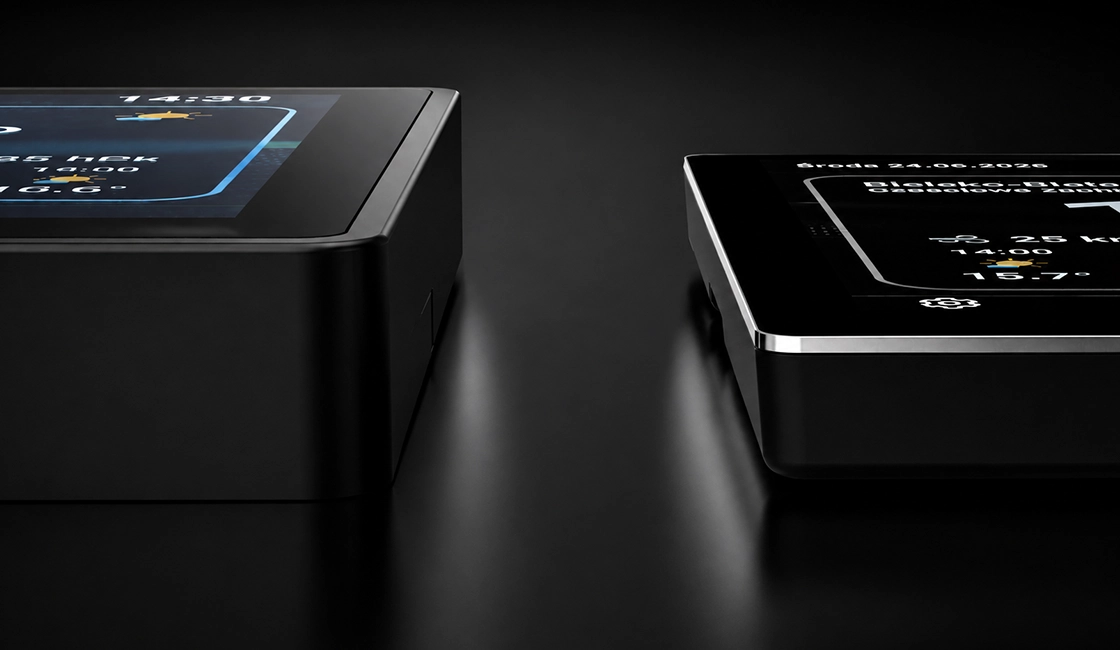

Slimmer Design. Same Capabilities.

The CP-04 Slim offers the full functionality of the CP-04 controller in a sleek housing just 7 mm thick. It is a minimalist version of a proven solution, designed for interiors where technology should operate intuitively and blend seamlessly into the surroundings.

CP-04 Slim

7 mm thick
Slim, modern profile
Ideal for minimalist interiors

CP-04

10.5 mm thick
Compatible with interchangeable frames
Greater options for appearance customisation

Different Designs. Same Functionality.

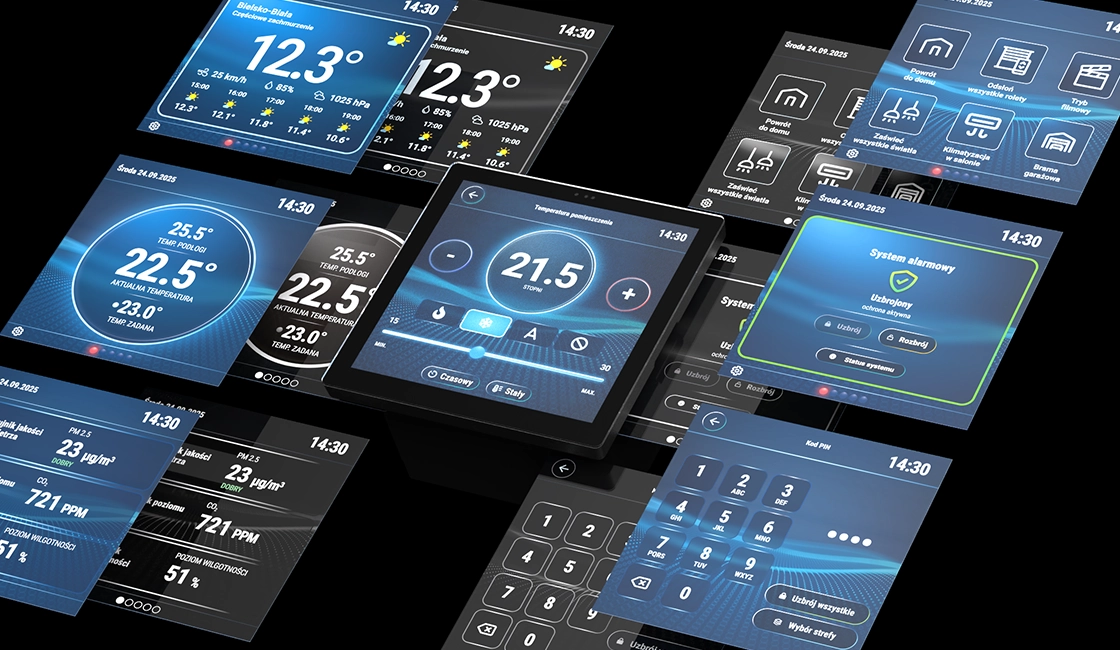

Customise to Your Needs

Clear and intuitive display
Easy-to-read parameters
Scene selection
Sensor data display
Alarm system management
20 screen functions

Installation and Configuration

The device is designed for flush mounting in a dedicated 64 × 64 mm electrical installation box. Communication with the Sinum Central Unit takes place via a wired connection using the TECH SBUS communication bus.

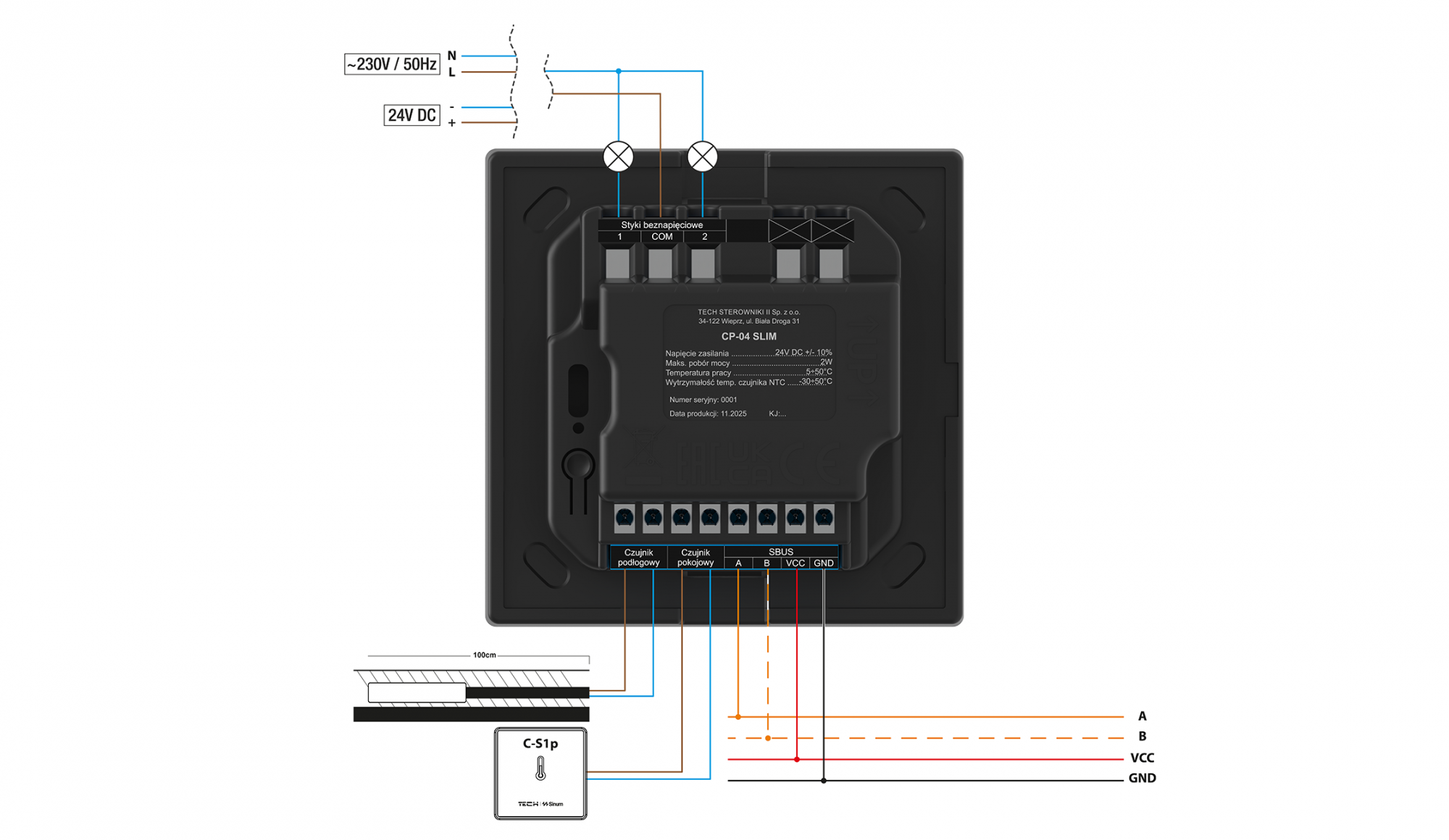

Wiring Diagram

SBUS Communication Bus: 4-pin screw terminal connector (GND, VCC, B, A).
Additional Sensors: Dedicated inputs for an external floor temperature sensor and an additional room temperature sensor (recommended installation at least 10 cm below or next to the panel).
USB Port: Micro USB connector for firmware updates.

The device is registered in the system using the identification mode in the Sinum Central Unit (SBUS Devices tab), allowing the panel to be assigned to a specific room and zone.

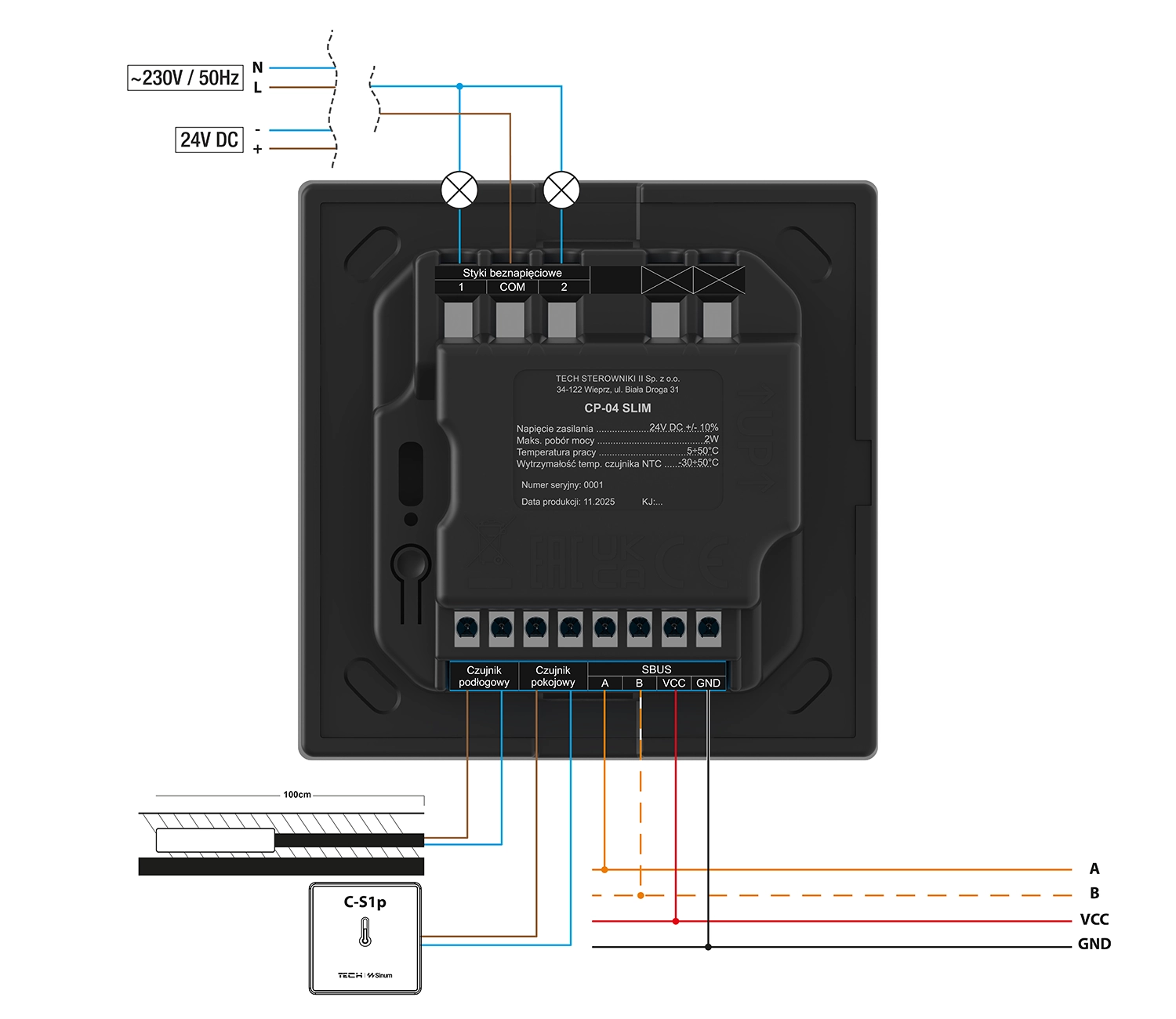

Wiring Diagram

The CP-04 Slim control panel communicates with the Sinum Central Unit via the SBUS communication bus and is powered by 24 V DC.
The device supports the connection of optional temperature sensors, including room and floor temperature sensors.
The panel is designed for flush mounting in a dedicated 78 × 78 mm electrical installation box.
Correct wiring of the communication bus and temperature sensors ensures full functionality of the control panel.

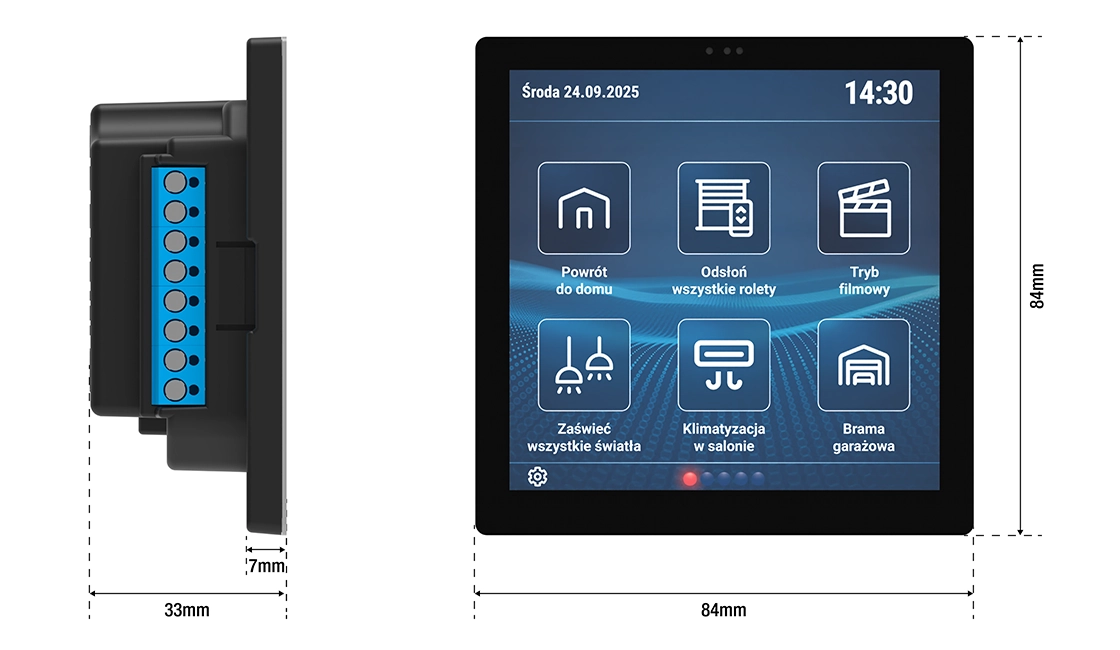

Device Dimensions

he CP-04 Slim control panel features a compact design. Thanks to its precisely engineered dimensions, the device fits perfectly into its dedicated electrical installation box, ensuring an elegant finish and seamless integration into any interior.

Dimension Details

Dimensions: 84×84×33mm
Mounting Type: Flush-mounted in a dedicated 78×78mm electrical installation box.

Remote Control

With the Sinum app, you can manage your smart home system anytime, anywhere. The app provides full control over lighting, blinds, and other home devices, ensuring convenience and energy efficiency.
Its intuitive interface makes it easy to create schedules, configure automation scenarios, and monitor energy consumption.
Additionally, the Sinum app offers real-time notifications and alerts, enhancing security and ensuring maximum comfort and peace of mind.
