CD-01

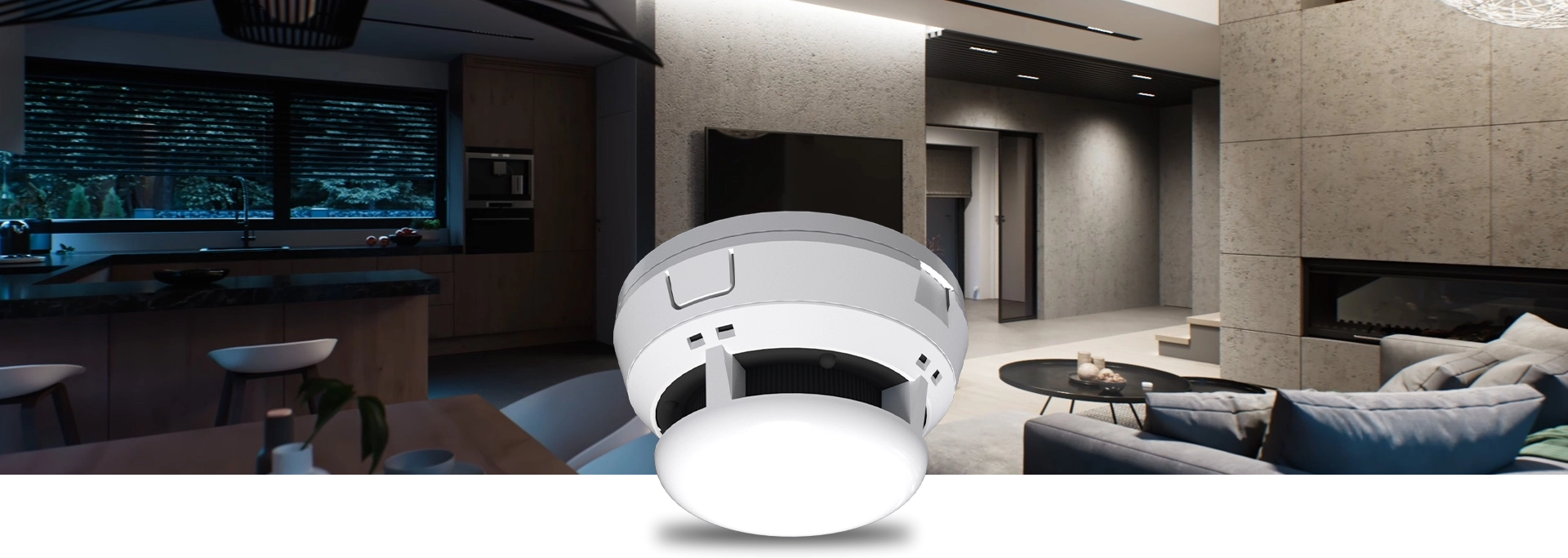

Wireless smoke sensor CD-01
×
The CD-01 smoke detector is a compact and discreet device designed to ensure the safety of your home. It communicates wirelessly with the Sinum control unit and is battery-powered.
The CD-01 smoke detectors are an excellent addition to any smart home security system.
Smoke Detector – Safety in Your Home
The CD-01 smoke detector is a compact device that plays a crucial role in your smart home system. Its presence enhances overall safety, protecting not only your property but, most importantly, the people inside. With the CD-01 smoke detector quietly monitoring your home, you can enjoy peace of mind and a greater sense of security.
How Does the CD-01 Smoke Detector Work?
The CD-01 smoke detector is a battery-powered device (3×AA 1.5V) that can detect smoke early, alerting you to potential danger. This is possible thanks to the built-in sensor combined with a relay, which automatically triggers the integrated alarm siren when smoke is detected. Importantly, the CD-01 not only signals the presence of smoke in the room but also detects sudden increases in air temperature, providing an enhanced level of protection and helping you feel safe in your home.
Smoke detectors are devices equipped with built-in sensors that can detect the presence of smoke in a room and automatically alert occupants to potential danger. When triggered, the loud alarm siren is activated. When integrated with a smart home system, the detector can also automatically initiate actions to limit the spread of fire, such as turning off the recuperation (heat recovery system).
Features
- Wireless communication
- Smoke detection
- Sudden ambient temperature rise detection
- Very loud alarm signal
- Certified according to CNBOP standards
- Standard: PN-EN 14604:2005
Why Install a Smoke Detector?
A smoke detector is an essential device that should be present in every home. Why? Primarily because its installation is one of the most effective ways to protect against fire and its consequences. Early smoke detection can allow you not only to extinguish a fire before it spreads, but also to alert emergency services or evacuate safely, protecting your health and life.
Research by the U.S. National Fire Protection Association shows that having a properly functioning smoke detector at home can reduce the risk of death from fire by up to 55%. By installing the CD-01 smoke detector, you are not only safeguarding yourself but also caring for the health and safety of your loved ones.
Early detection is especially important because many fires occur at night, while occupants are asleep. In a typical home, fire can spread very quickly, partly due to flammable furnishings and materials. Every additional minute can make the difference in effective evacuation and saving lives.
The CD-01 smoke detector is also easy to install. Its intuitive design allows for quick setup without drilling or wiring, meaning it can be installed at any time, not just during renovation or construction. Thanks to wireless connectivity with the Sinum smart home control unit, the CD-01 can be fully integrated into your smart home system, detecting and signaling smoke or sudden temperature rises.
As part of a smart home system, it can trigger automated actions to slow down the spread of fire. Early detection not only increases the chance of safe evacuation but also allows you to mitigate potential damage. Even small fires can cause significant losses, not only from flames or smoke but also due to firefighting efforts, which often involve large amounts of water and other measures to extinguish the fire effectively. In many cases, this leads to property damage requiring major repairs, even if the building itself remains habitable.
Installing the CD-01 smoke detector is therefore one of the simplest and most effective ways to protect both your home and your property.
Advantages of the CD-01 Smoke Detector – Sinum System
The CD-01 smoke detector from the Sinum system is highly effective in early detection of smoke and sudden rises in ambient temperature. Its benefits go beyond this dual functionality and include:
-
Wireless communication with the Sinum control unit, allowing the detector not only to sense and signal danger but also to inform the home security system to trigger appropriate actions.
-
Very loud alarm signal, ensuring the CD-01 can effectively alert occupants even if they are sleeping or in the garden.
-
Compact size and aesthetic design, making it easy to blend into any interior without drawing unwanted attention.
-
Simple installation, thanks to wireless connectivity and battery power — the detector can be mounted on the ceiling without any wiring or wall modifications.
-
User-friendly setup, intuitive enough for anyone to install without professional assistance.
FAQ
How Do Smoke Detectors Work?
Smoke detectors are devices equipped with built-in sensors that can detect the presence of smoke in a room and automatically alert occupants to potential danger. When triggered, the loud alarm siren is activated. When integrated with a smart home system, the detector can also automatically initiate actions to limit the spread of fire, such as turning off the ventilation system.
Where Should a Smoke Detector Be Installed?
The effectiveness of a smoke detector largely depends on its correct placement. Typically, smoke detectors are mounted on the ceiling, but wall installation is also allowed. In this case, the detector should be placed at least 2 meters above the floor while maintaining a minimum 10 cm distance from the ceiling. This ensures proper air circulation around the sensor and correct operation.
According to fire safety recommendations, smoke detectors classified as fire protection devices should be installed in corridors between bedrooms and living rooms. It is also advised to place detectors on every floor of a multi-story home. Therefore, homeowners should install at least one smoke detector per level, preferably in corridors or hallways near staircases. Additionally, detectors should be positioned so that their alarm signal is audible throughout the building.
What Does a Smoke Detector Detect?
A smoke detector can detect not only smoke but also other hazards. For example, the CD-01 also senses sudden rises in ambient temperature. Detecting both threats allows for early alarm activation, giving occupants time to respond before the fire spreads or to evacuate safely. Smoke detectors are among the most effective fire protection devices.
How Often Should a Smoke Detector Be Tested?
Smoke detectors should be tested according to the manufacturer’s instructions. Regular testing ensures the device functions correctly in an emergency. In addition, battery replacement at the recommended intervals is essential. Some detectors provide audible low-battery warnings, and the Sinum system control unit will notify you if the CD-01’s battery is low. Alkaline batteries are recommended for longer life.
Will the Smoke Detector Detect Cigarette Smoke?
Smoke detectors are programmed not to respond to cigarette smoke. Cigarette smoke, as well as smoke from cooking or frying, is less dense than the thick smoke produced during the early stages of a fire in a closed room. The detector only triggers an alarm when actual fire hazards are present.
Descriptions of controller functions and equipment are valid only for products available in the given calendar year. To confirm the capabilities of a specific device, please contact the technical support department of TECH CONTROLLERS.
TECH CONTROLLERS Spółka z ograniczoną odpowiedzialnością Sp. k. reserves the right to make changes to technical parameters, equipment, and specifications without prior notice. All information on this site, including photos, specifications, descriptions, drawings, or technical parameters, does not constitute a guarantee under Art. 4, Sec. 3 and 4 of the Polish Consumer Sales Act of July 27, 2002, and does not constitute a product description under Art. 4, Sec. 2 of the same Act. This website does not constitute an offer under Art. 66 of the Polish Civil Code.
Remote Control
Remote Control

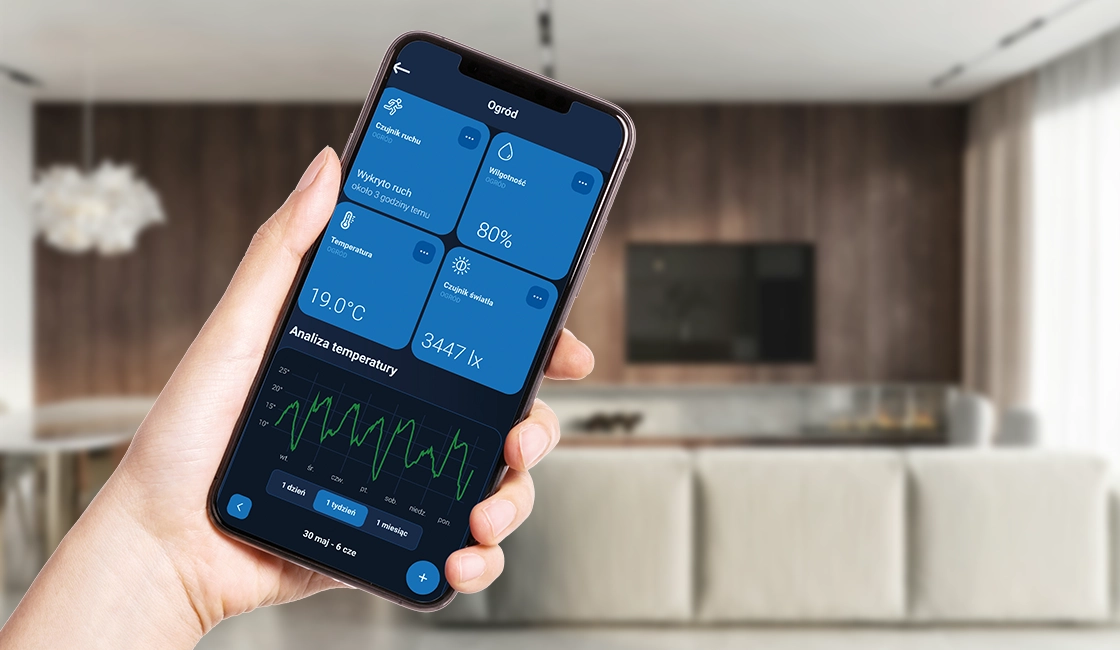

With the Sinum app, you can manage your system anytime and anywhere. The app provides full control over lighting, temperature, blinds, and other home devices, ensuring convenience and energy efficiency. Its intuitive interface allows you to easily create schedules, automation scenarios, and monitor energy usage.
Additionally, the Sinum app offers real-time notifications and alerts, providing complete security and comfort in everyday use.
Product parameters
| Specification | Value |
| Communication | Wireless WTP 868MHz |
| Height | 100 mm |
| Width | 100 mm |
| Depth | 95 mm |
| Power Supply | 3xAA 1.5V |
