C-S1m

Device Description

Features:

• Measurement of room air temperature
• Measurement of air humidity
• Option to connect a floor temperature sensor (not included)
• Sinum SBUS communication

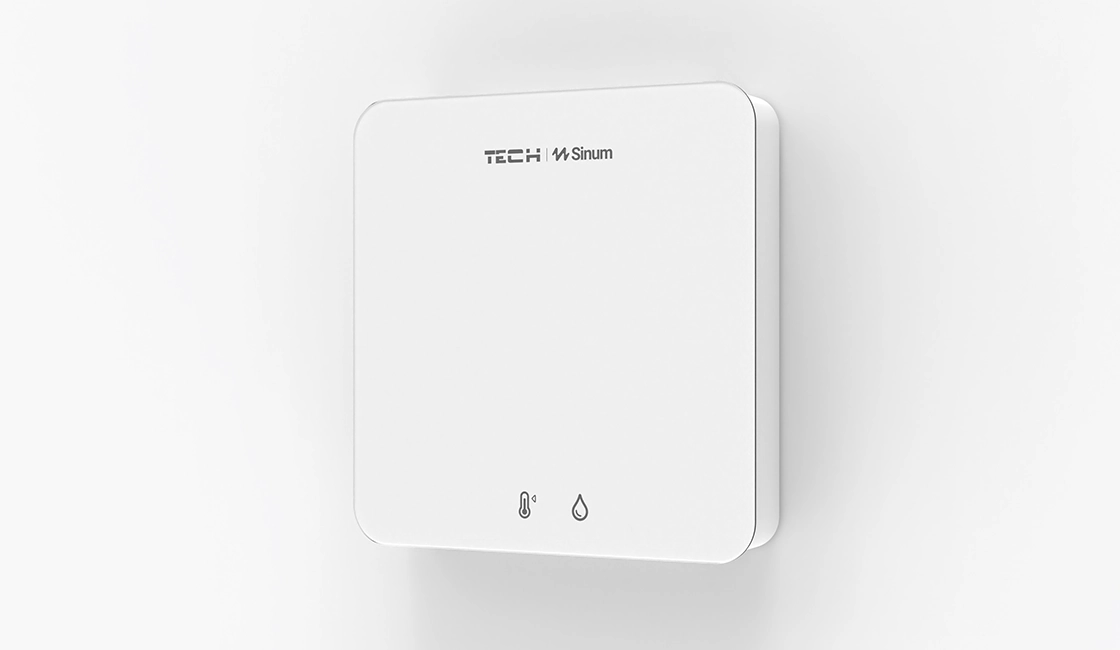

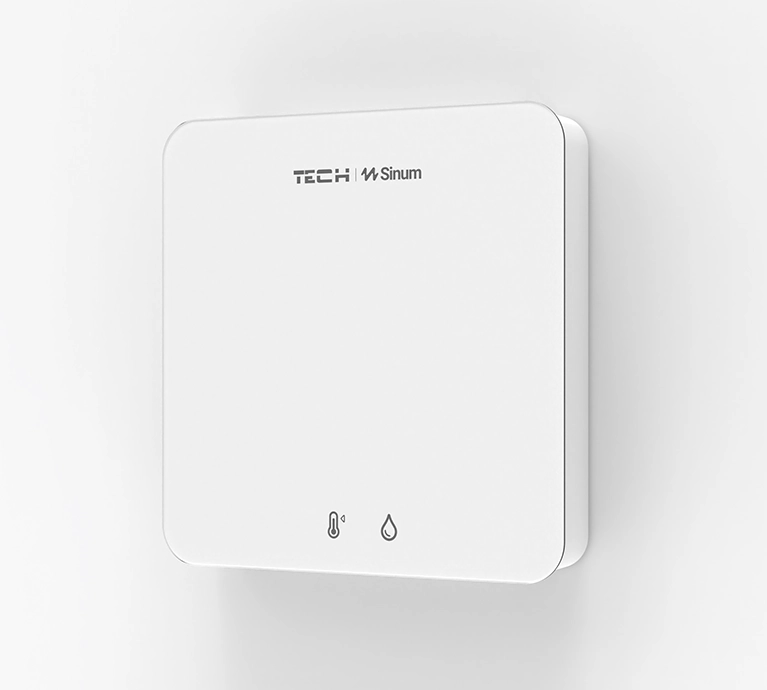

The C-S1m wired sensor is equipped with both temperature and humidity sensors.

The sensor transmits the current temperature to the Sinum control unit, which compares the set temperature with the current reading and controls heating devices, radiator heads, or thermostatic valves to switch the heating on or off accordingly. Too cold or too hot? Thanks to the heating/cooling mode, you can enjoy the perfect temperature all year round!

Once the sensor is added and programmed in the Sinum system, you can remotely control the temperature, set schedules, and create automated actions and scenes based on room temperature. It’s that simple - experience true comfort in your home!

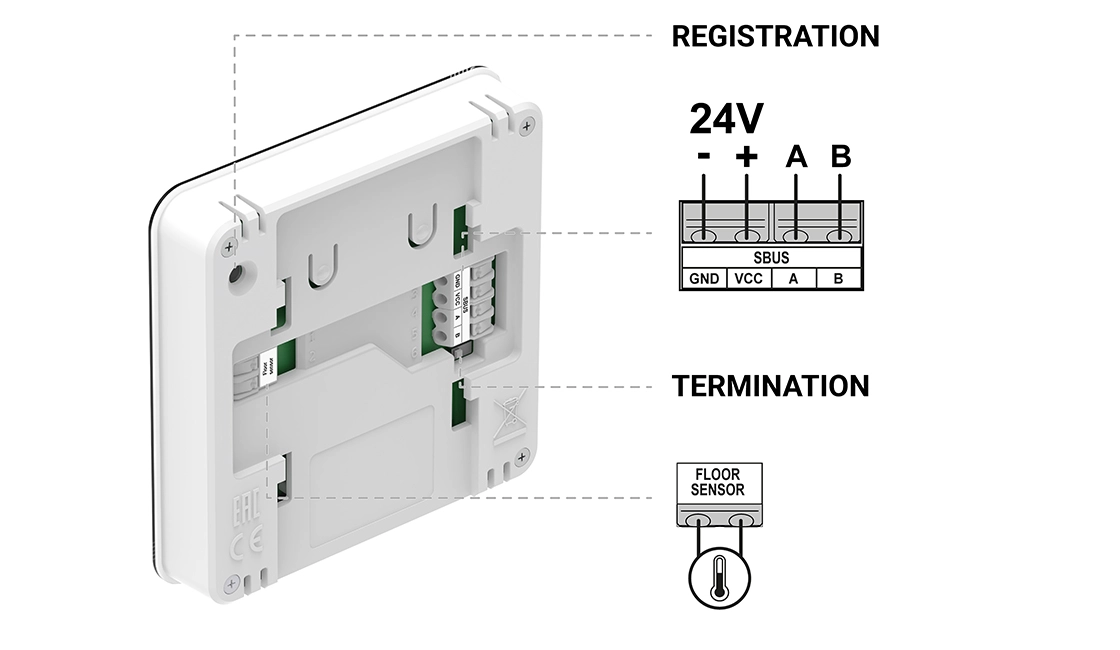

Connection and Communication

Registration – The button located on the back of the device is used to register the controller in the system. Pressing it initiates the pairing process with the central unit. Once registration is successfully completed, an appropriate message will appear on the controller’s display.

Termination – The termination switch defines the controller’s position in the system’s communication line. Depending on the device’s location, set the switch accordingly:

ON - if the controller is located at the end of the line,
1 - if the controller is located in the middle of the line.

Power Supply and Communication – On the back of the controller, there is a connector for:
24V power supply – required for proper device operation,
SBUS communication (A, B) – enabling connection with the system’s central unit,
Floor sensor input – used for measuring the floor temperature.

Device Dimensions

The C-S1m temperature sensor is designed in a compact form. Thanks to precisely selected dimensions, the device fits perfectly into standard electrical mounting boxes, ensuring a clean finish and seamless integration with any interior.

Detailed Dimensions

• Dimensions: 84,5×84,5×16mm
• Mounting type: Flush-mounted in a standard 60mm wall box

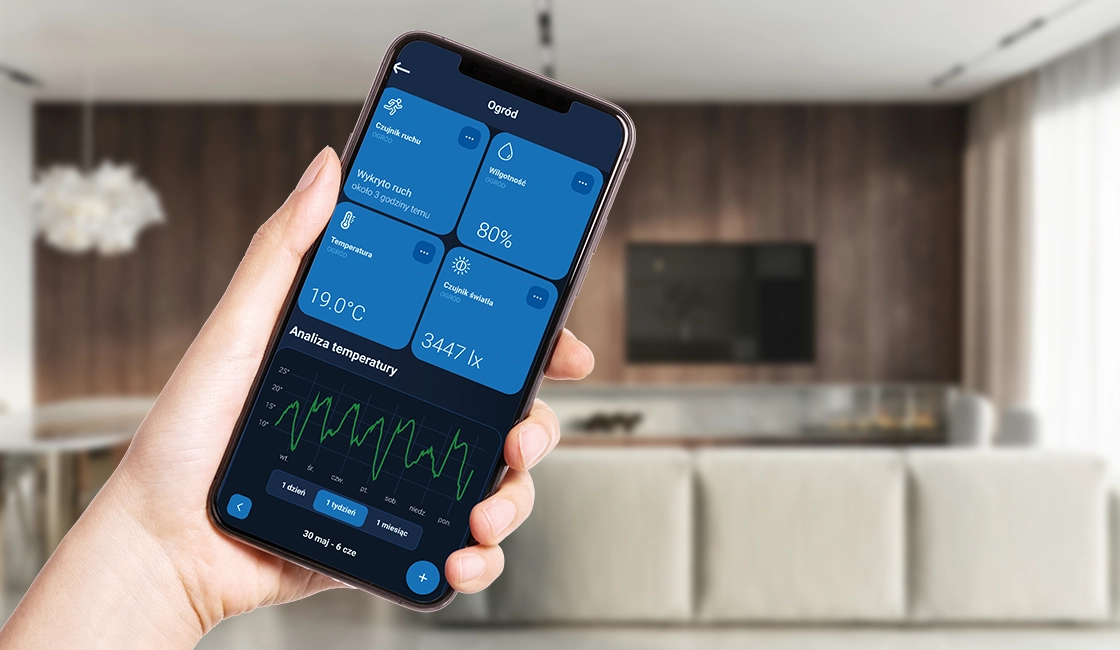

Remote Control

With the Sinum app, you can manage your system anytime and anywhere. The app provides full control over lighting, temperature, blinds, and other home devices, offering both convenience and energy savings. Its intuitive interface allows for easy creation of schedules, scenarios, and energy usage monitoring.

Additionally, the Sinum app delivers real-time notifications and alerts, ensuring complete safety and comfort for the user.
