WSS-32

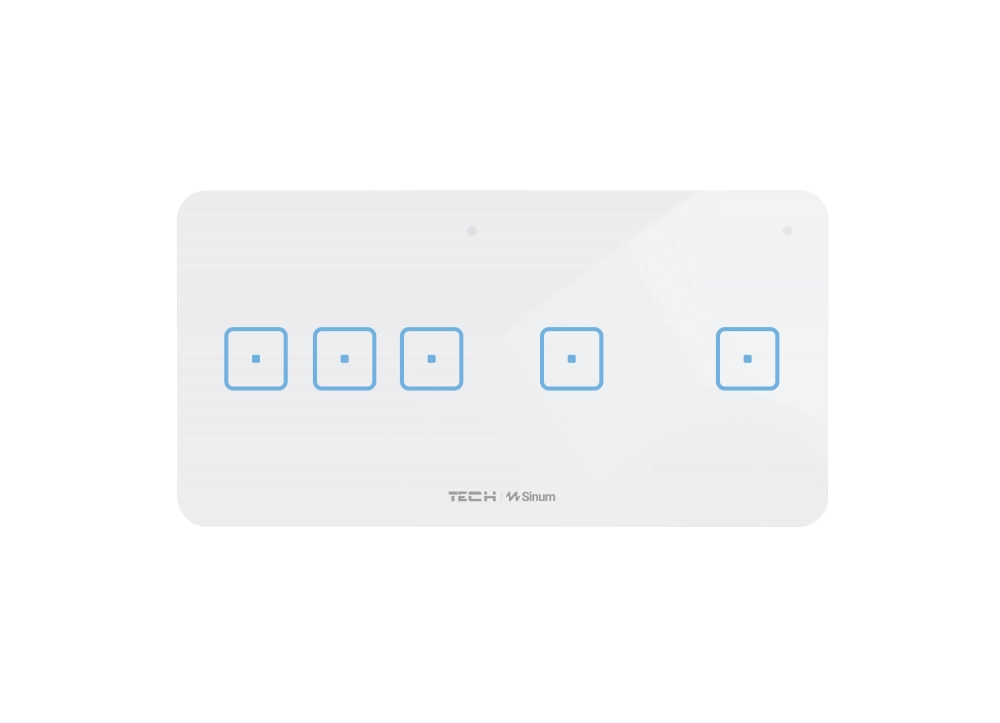

Double 5-gang glass switch WSS-32
Light switches - Double - WSS-32

Product description

Features:

  • wireless communication
  • touch buttons
  • switching lights on/off
  • 2×2 relays to control two lighting circuits
  • 1 programmable button to control any device or light circuit
  • the ability to change the backlit colour and display mode
  • the ability to change the brightness level 0-100%
  • mode of automatic adjustment of the brightness of the backlit to the lighting conditions of the room





Replace the traditional wall switches with glass and stylish ones from the DOUBLE series in order to control both the lighting, and any device connected to the SINUM smart home system. Double 5-gang touch switch equipped with 4 relays and 5 sensor fields, allows you to operate the lighting or any other devices connected to the switch directly from the place of installation. Middle virtual field, allows you to control any devices via PPS -02. After adding and programming the WSS switch in the EH-01 central device, it allows for remote control as well as adding scenes and actions. The switch has a built-in LED indicating the device status (on / off). The user may adjust the backlit colour and brightness using the SINUM application. Communication with the EH-01 central device is wireless.

Product parameters

Specification Value
Communication Wireless WTP 868MHz
Height 84.7 mm
Width 164 mm
Depth 37.2 mm
Power Supply 230 V AC
Power Consumption 1 W
Operating Temperature 5°C - 50°C
Number of Relay Outputs 4
Max Relay Load 4 A

Files to download

Manuals

Warranty card

Photos
