Floor heating controllers

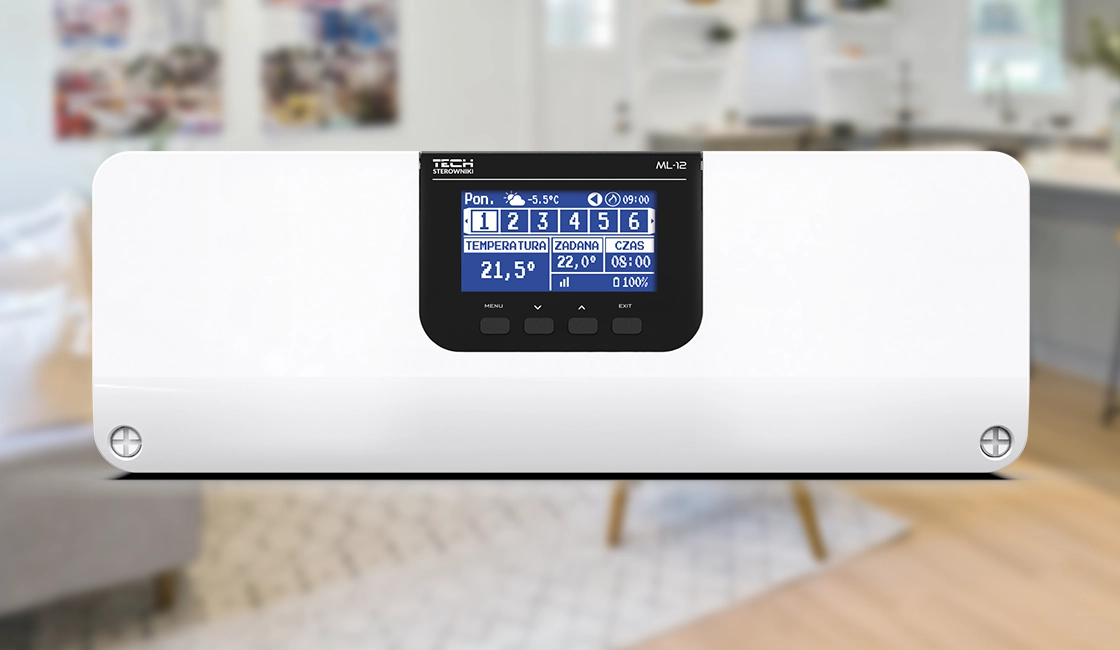

EU-ML-12

Product description

Functions:

the device is not standalone controller, it has to be connected to the EU-L-12 - MASTER

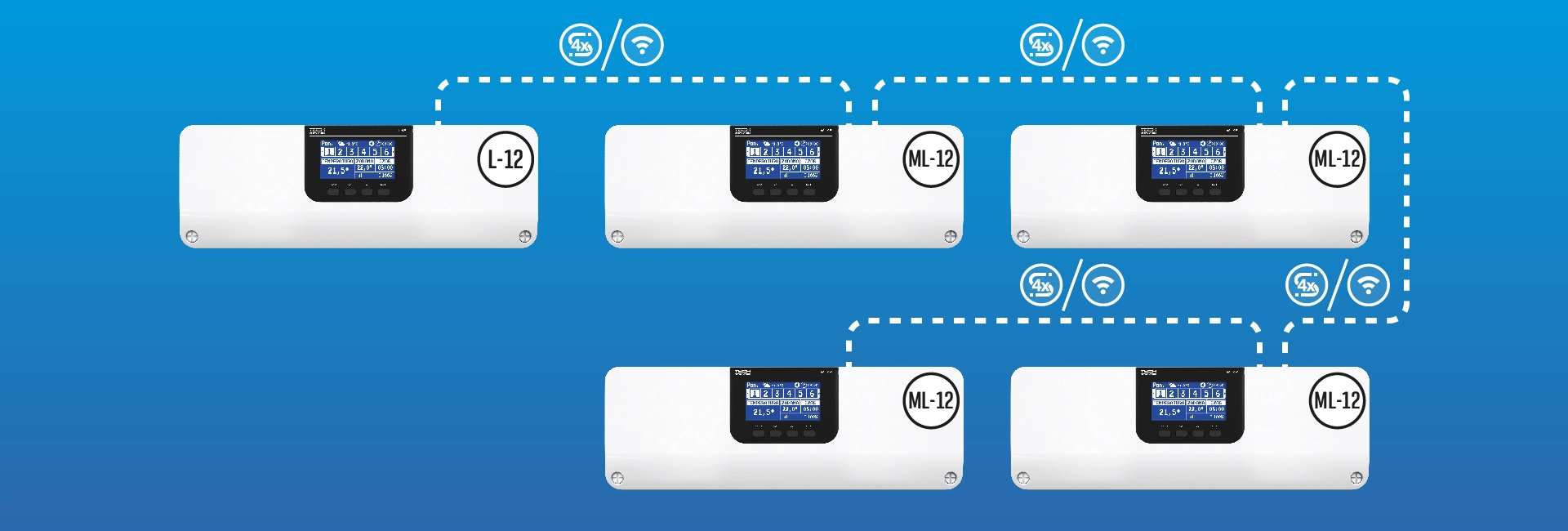

wired (TECH SBUS) or wireless communication with the MASTER controller EU-L-12
• the ability to handle max. 50 thermoelectric actuators, zones can be created using
8 dedicated wired regulators or wireless system regulators or temperature sensors, or wired temperature sensors C-7p:
– 3 zones with 3 outputs each (if there are more actuators, the maximum output load is 0,3A)
– 5 zones with 2 outputs each (if there are more actuators, the maximum output load is 0,3A)
• one 230V output for a pump
• voltage-free relay (to control an additional heating device)
• possibility of controlling wireless actuators STT-869/G-X (the maximum of 6 per zone)
• in each zone, it is possible to install up to 6 wireless EU-C-2n window opening sensors
• possibility of connecting 6 executive modules EU-MW-1 or EU-MW-1/230
• possibility of connecting EU-i-1 or EU-i-1m valve module
includes repeater function
heating/cooling function
• software update via USB

Product parameters

Power suply 230V 50Hz
Pump output load 0,5 A
Outputs 1 - 8 load 0,3 A
Voltage-free relay • / 0,5 A
Communications Wired - TECH SBUS
Wireless WTP - 868 MHz
Dimensions [mm] 343 x 118 x 52
