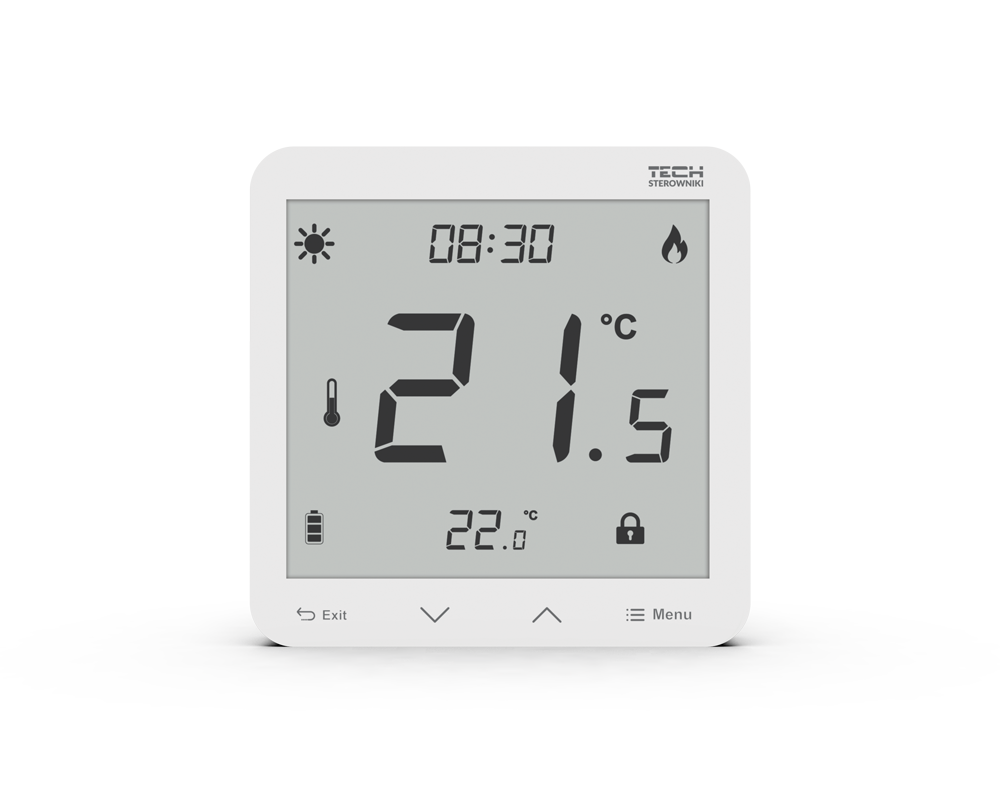

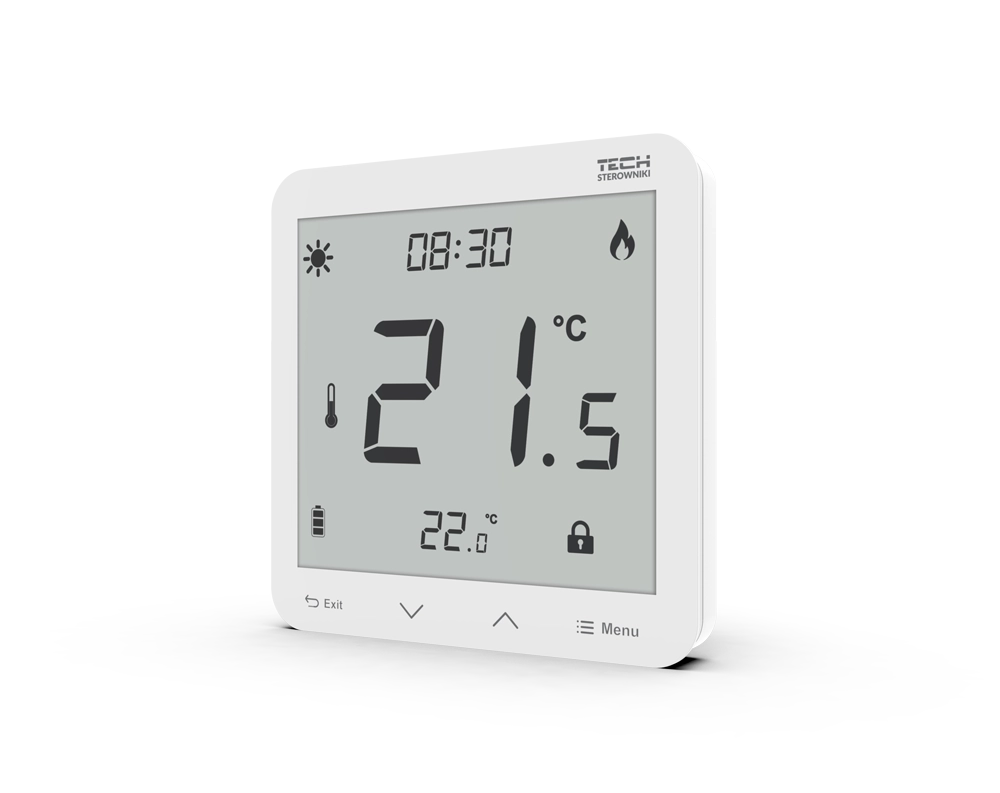

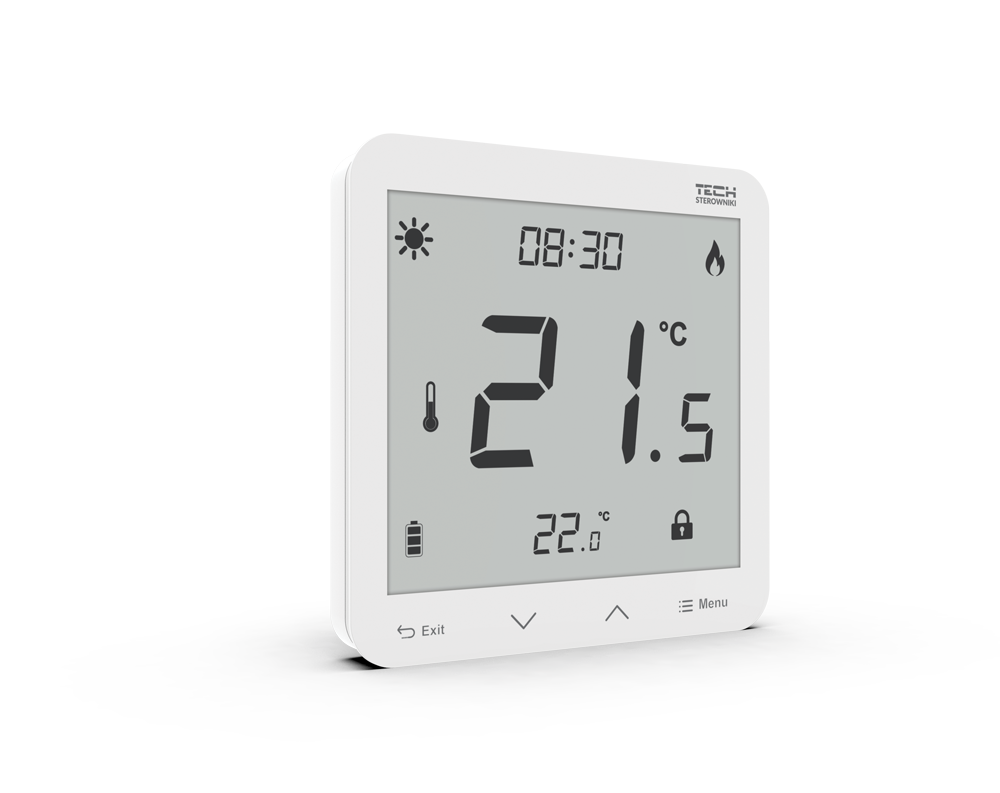

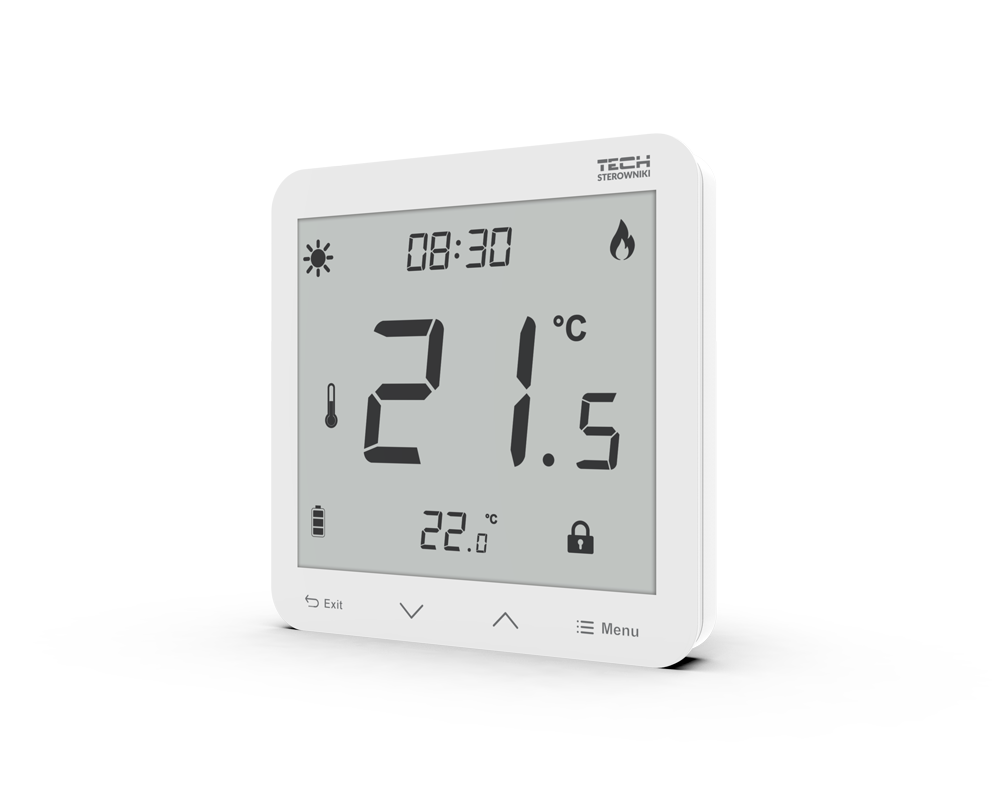

EU-297 v3

WIRED TWO-STATE ROOM REGULATOR (flush mounted)

Product description


Functions performed by the controller:

  • room temperature control +/- with an accuracy of 0.1 ° C
  • hysteresis in the range from 0.2 to 8 °C
  • manual program
  • day / night program
  • temporary illumination of the display
  • additional control based on floor temperature (if wired NTC floor sensor is used)
  • heating / cooling function
  • non-voltage No/Com/Nc relay (max. 1A/230V/AC)
  • wired communication

Controller equipment:

  • built-in room sensor
  • 2 x AAA 1.5V batteries
  • flush mountable in a 60mm box

Product parameters

Specification Unit
Dimensions mm 84x84x13

Expansion of the
