EU-295 v2

The type EU-295 room regulator is intended to control a heating device (e.g. a gas furnace, an oil furnace, an electrical furnace or the boiler’s controller). This regulator is designed to maintain the set temperature in the apartment by sending a signal to the heating device (opening contact) with information about heating up the room to the required temperature.
Two-state with traditional communication - EU-295 v2

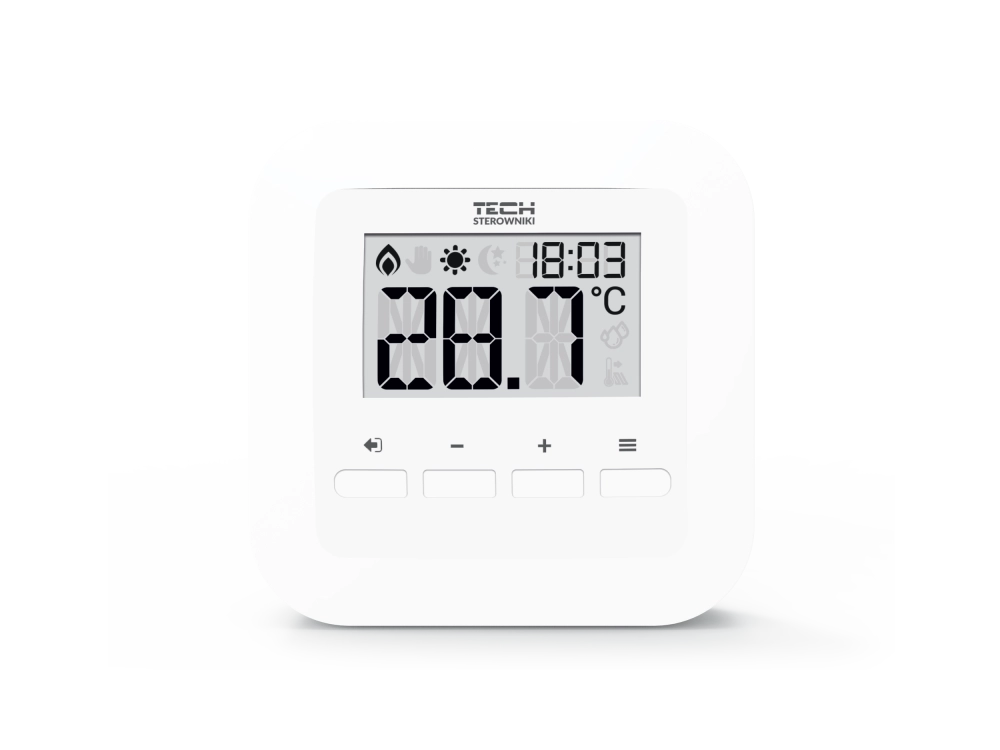

Two-state with traditional communication - EU-295 v2 - 2

Product description

Functions Performed by the Controller:

  • Wireless communication
  • Control of the room temperature
  • Day/night program
  • Manual program
  • 2-wire connection
  • non-voltage No/Com/Nc relay (max. 1A/230V/AC)
  • Additional control based on floor temperature (if wired NTC floor sensor is used)



Controller’s Equipment:

  • Temporary illumination of the display
  • Built-in room sensor
  • power adapter (signal receiver) with No/Com/Nc relay (max. 1A/230V/AC)
  • Batteries 2x AAA 1,5V

Product parameters

Specification Unit
Dimensions mm 95x95x25
