EU-C-8f

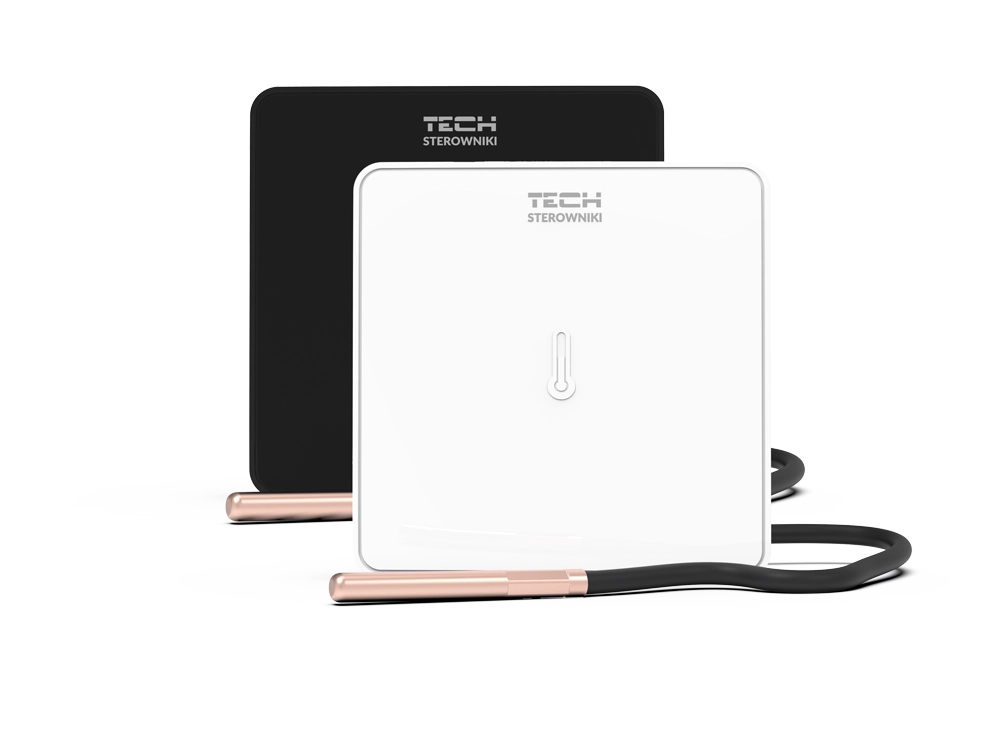

WIRELESS FLOOR TEMPERATURE SENSOR

The C-8f sensor is designed to measure the floor temperature in rooms equipped with underfloor heating. It transmits data wirelessly, enabling precise temperature control in heating zones. The sensor is a dedicated solution for all wireless heating control systems as well as the Sinum system.

Choose Modernity

Choose Modernity

Select elegant devices that bring a contemporary touch to any interior. Choose from the available colors:

  • White: Perfect for bright and minimalist arrangements, adding elegance and freshness.
  • Black: Ideal for modern and expressive spaces, bringing a sophisticated and luxurious accent.

Our devices combine modern design with high-quality craftsmanship. The use of durable materials ensures not only an aesthetic appearance but also resistance to scratches and damage. Thanks to simple installation and compatibility with standard electrical systems, setup is quick and effortless.

Floor Sensor Installation

Floor Sensor Installation

The sensor should be installed in the upper layer of the screed — directly beneath panels or tiles. For easier installation and future servicing, it is recommended to place the sensor inside a protective conduit.

To ensure accurate measurements and avoid thermal bridging, the sensor should be positioned approximately 100 cm from the wall. It monitors the floor’s temperature to maintain optimal thermal comfort and protect the flooring from overheating — regardless of the room temperature.

Installation

Installation

Our devices are designed with ease of installation in mind. They are intended for mounting in a 60mm flush-mounted electrical box, ensuring a sleek appearance and seamless integration with the wall.

  • Mounting type: surface-mounted
  • Required box: Ø60mm

Thanks to the precisely engineered construction, installation is quick and straightforward. The devices blend perfectly into any interior design. The simple installation process allows you to enjoy modern design and functionality — without unnecessary complications.

Connection and Power Supply

Connection and Power Supply

Registration - The button located on the device is used to register the controller in the system. Pressing it initiates the pairing process with the central unit. Upon successful registration, a confirmation message will appear on the controller’s display.

Power Supply - 2×AAA 1.5V batteries

Floor Sensor - Used for measuring the temperature of the floor.

Device Dimensions

Device Dimensions

The C-8f sensor has been designed to be compact, ensuring an aesthetic finish and a perfect fit within any interior. Its slim housing, only 19 mm thick, gives the device a modern and discreet appearance on the wall.

Dimension Details

  • Dimensions: 80×80×19 mm
  • Mounting type: in a 60 mm diameter electrical box

Remote Control

Remote Control

The devices can work with systems that allow remote access via the eModule app or the new Sinum app. This gives the user full control over the system from anywhere, using a smartphone or tablet.

The remote control function is available after expanding the system with a main controller, which enables device communication with the app and provides even greater convenience in managing the building’s system.

Made in Poland

Devices designed and manufactured in Poland

Flagi

Made in Poland

Devices designed and manufactured in Poland

Flagi

Files to download

Manuals

Warranty card
