EU-24

The EU-24 microprocessor regulator is intended to control a CH charging boiler equipped with a fan and a CO water circulation pump. Its task is to maintain the set temperature via the use of a fan.
  • Product description
  • Product parameters


Controller for Charging Boilers

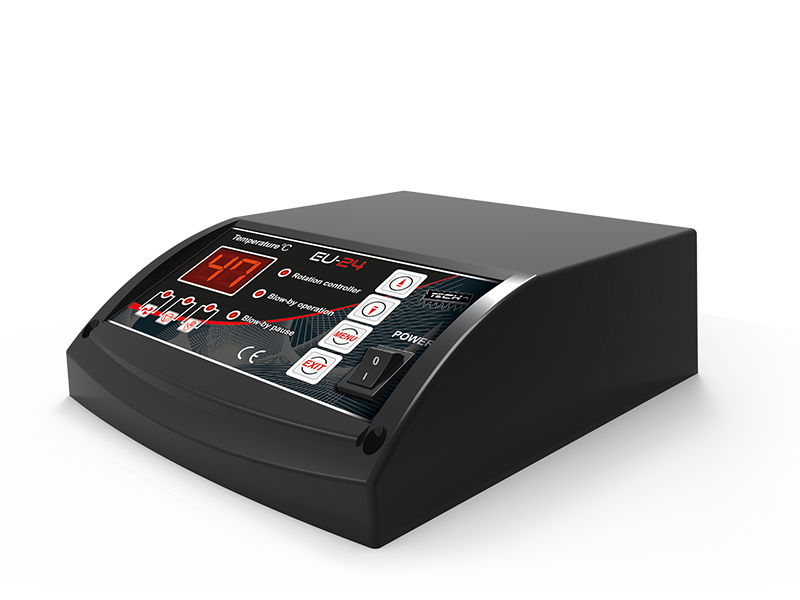

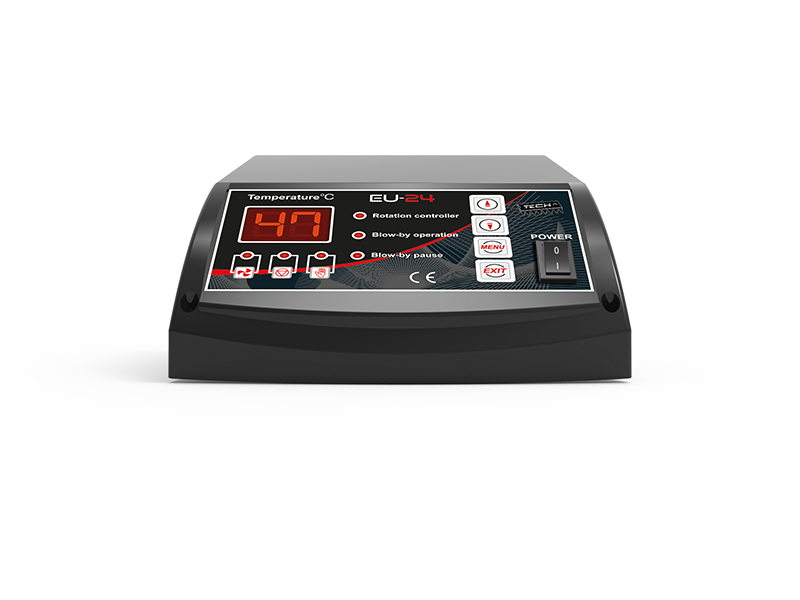

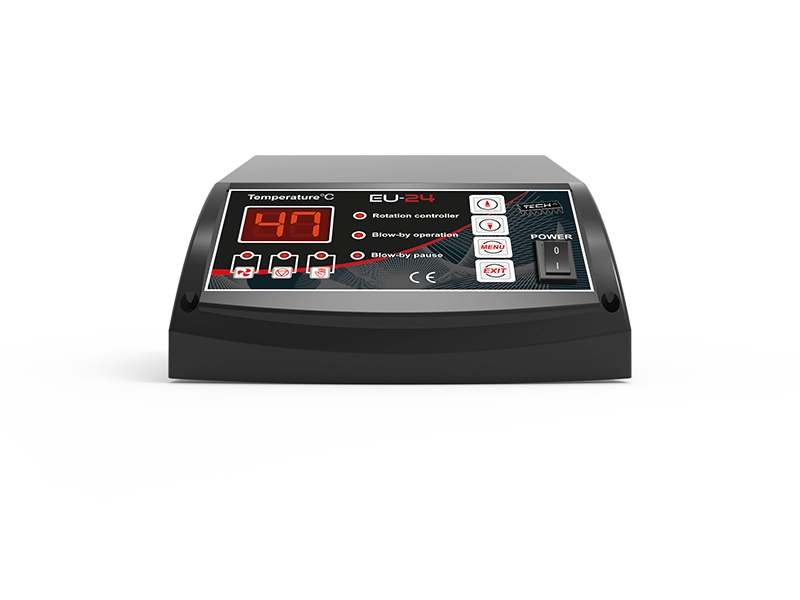

The EU-24 microprocessor regulator is intended to control a CH charging boiler equipped with a fan and a CO water circulation pump. Its task is to maintain the set temperature via the use of a fan. The controller’s casing is adapted for assembly on the boiler.

Functions performed by the controller:

  • Fan control
  • CH pump control



Controller’s equipment:

  • LED display
  • CH temperature sensor
  • Thermal protection
  • A casing intended for assembly on the boiler
Specification Unit
Power supply V  230V/50Hz +/-10%
Maximum power consumption W  4
Ambient temperature  °C  5÷50
CH pump max. output load  A  0,5
Fan output load A  0,6
DHW pump max. output load A  0÷85
Measurement accuracy °C  1
Temperature adjustment range  °C  45÷80
Sensor thermal resistance  °C  -25÷90
Fuse  A  2×1,6
