DIM-S5

Device Description

• Controls the brightness of white LED strips, up to 5 strips
• Wireless communication

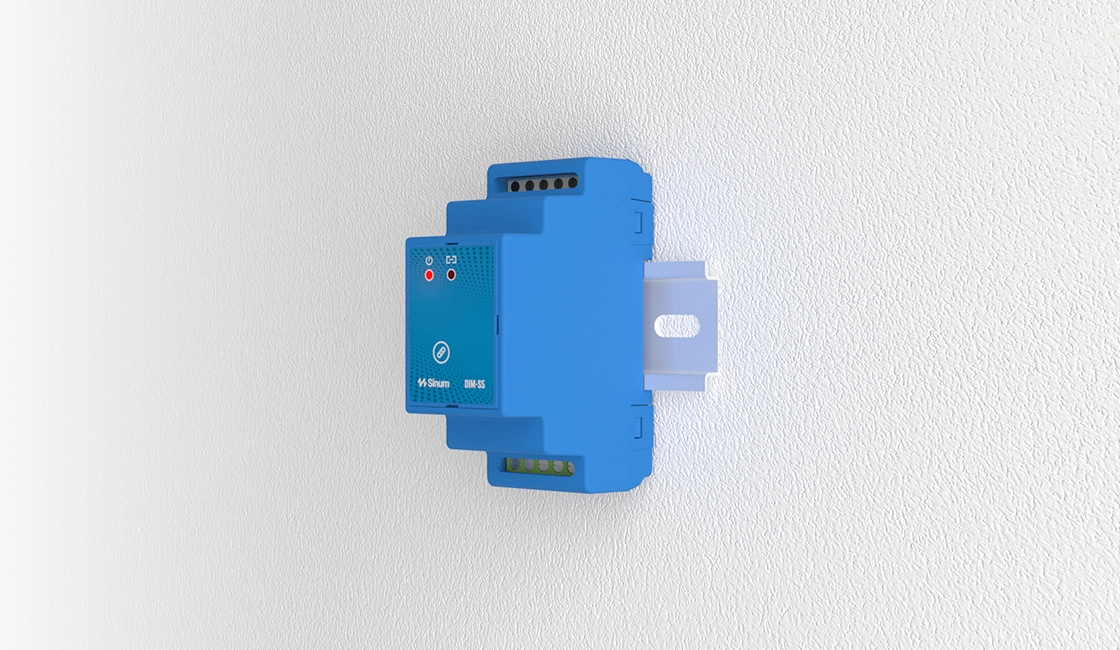

• DIN rail TH35 mounting

LED dimmers allow smooth adjustment of LED strip brightness from 0 to 100% of total lighting power. They support up to 5 LED strips simultaneously, depending on the selected scene, automation, or manual control. The module is powered by 12–24V DC. Each channel has a load capacity of 2.5A. Communication with the Sinum central unit is wireless.

Device Dimensions

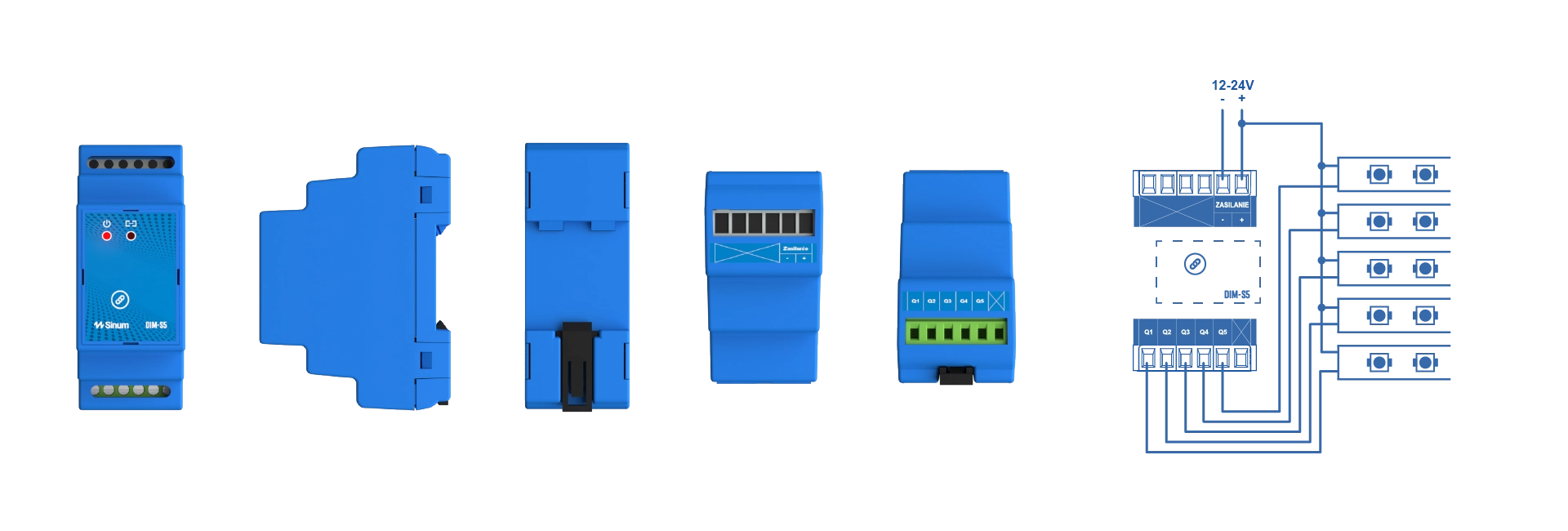

The relay modules are designed compactly to fit perfectly for DIN rail mounting in distribution cabinets. Thanks to the precisely chosen dimensions, the devices fit perfectly into standard distribution cabinets, ensuring an aesthetic finish and ideal fit.

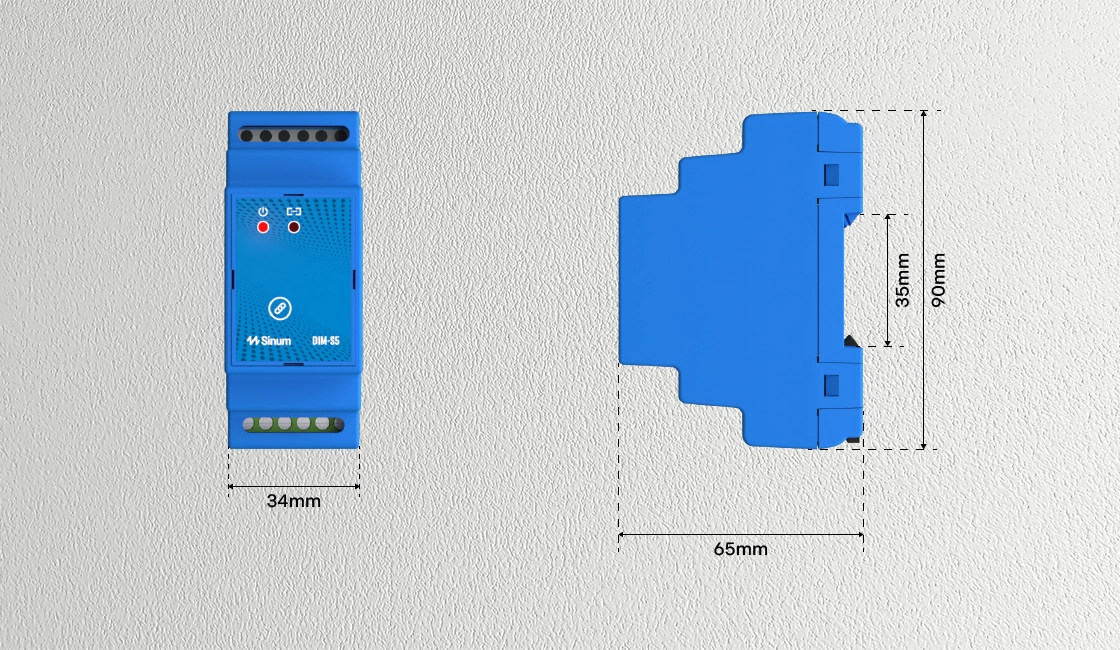

Detailed Dimensions

• Dimensions: 34x90x65mm
• Installation type: DIN rail (35mm) mounting in distribution cabinets

Remote Control

With the Sinum app, you can manage your system anytime and anywhere. The app provides full control over lighting, temperature, blinds, and other home devices, ensuring convenience and energy efficiency. Its intuitive interface allows you to easily create schedules, automation scenarios, and monitor energy consumption.

Additionally, the Sinum app offers real-time notifications and alerts, providing complete security and comfort in everyday use.
