Actuators

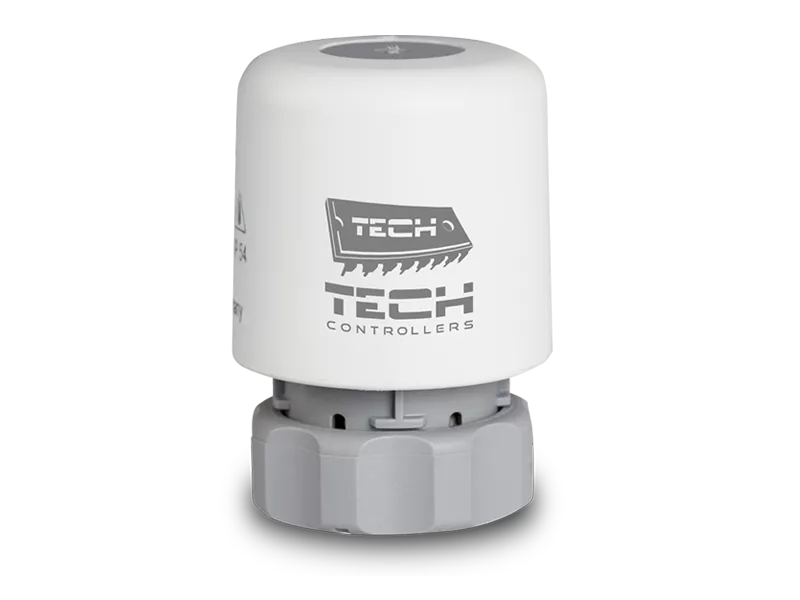

STT-230/2 M30

THERMOELECTRIC ACTUATOR
  • Product description

THERMOELECTRIC ACTUATOR

Functions:

Thermoelectric actuator STT are designed for automatic opening and closing heating circuits. To fit on manifold or radiator valves. It can be operated by a series of controllers dedicated to underfloor heating or by room regulators only.

Description:

Thermoelectric actuator STT is equipped with a valve stem position indicator .

They are equipped with an electric cable and a nut with a thread for mounting directly on the manifold or radiator valve. The actuators are currentless closed (NC).

Technical data:

Fittings: nut with M30 x 1,5 screw thread

Opening time: ~5 min.

Max. operation temperature: 60°C

Class: IP54

Stroke: 4,5 mm

Work power - 2W

Power supply: 230V 50Hz

Expansion of the

The primary controller

EU-L-7e

EU-L-7e

WIRED CONTROLLER FOR THERMOSTATIC ACTUATORS (8 SECTIONS)
EU-L-4 WiFi

EU-L-4 WiFi

Wireless - wired controller for thermostatic actuators (8 sections), built in WiFi module
EU-L-5

EU-L-5

WIRED CONTROLLER FOR THERMOSTATIC ACTUATORS (8 ZONES)
EU-L-5s

EU-L-5s

Wired controller for thermostatic actuators (8 sections)
EU-L-8e

EU-L-8e

WIRELESS CONTROLLER FOR THERMOSTATIC ACTUATORS (8 SECTIONS)
EU-L-9 R

EU-L-9 R

Universal controller for thermostatic actuators (8 SECTIONS)
EU-L-10

EU-L-10

WIRED CONTROLLER FOR THERMOSTATIC ACTUATORS (10 SECTIONS)
