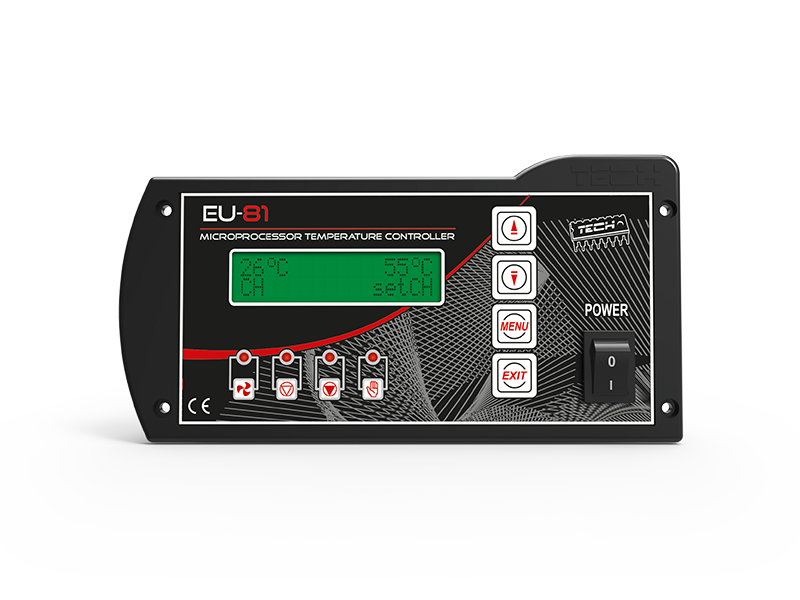

EU-81

The EU–81 temperature regulator is intended for CH charging boilers. It controls the CH water circulation pump, the DHW pump and the fan.

Product description



Controller for Charging Boilers



The EU–81 temperature regulator is intended for CH charging boilers. It controls the CH water circulation pump, the DHW pump and the fan. There are four optional modes of the pump’s operation: house heating, boiler priority, parallel pumps and summer mode. The controller’s casing is adapted for the boiler’s installation.



Functions performed by the controller:

  • Fan control
  • CH pump control
  • DHW pump control
  • The possibility to connect a room regulator



Controller’s equipment:

  • LCD display
  • CH temperature sensor
  • DHW temperature sensor
  • Thermal protection
  • Panel casing for the boiler’s installation or in a metal casing

Product parameters

Specification Unit
Power supply V 230V/50Hz +/-10%
Maximum power consumption W 5
Ambient temperature °C 5÷50
CH pump max. output load A 0,5
Fan output load A 0,6
DHW pump max. output load A 0,5
Measurement accuracy °C 1
Temperature adjustment range °C 45÷80
Sensor thermal resistance °C -25÷90
Fuse A 2×3,15
Temperature measurement range °C 0÷85
