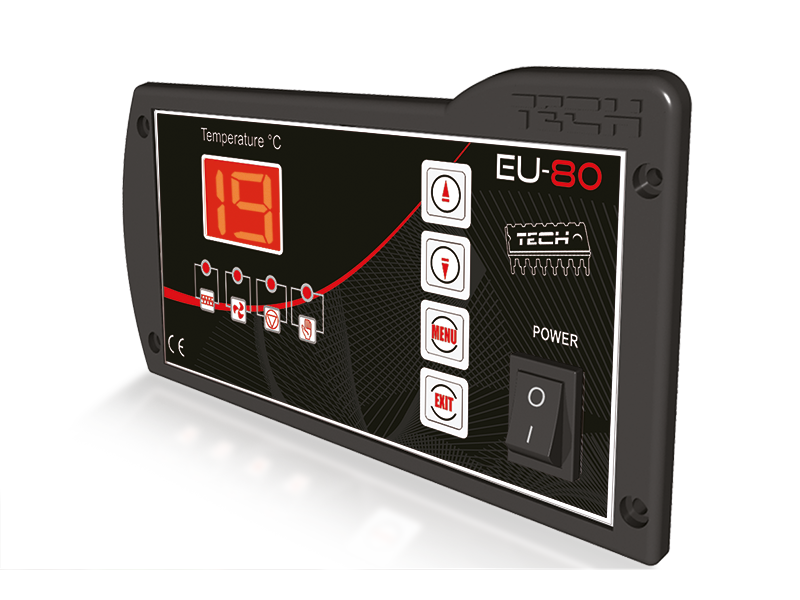

EU-80

Functions performed by the controller: Control of the fan and feeding screw or piston feeder CH pump control

Product description



Controller for Boilers with Feeders



Functions performed by the controller:

  • Control of the fan and feeding screw or piston feeder
  • CH pump control



Controller’s equipment:

  • LED display
  • CH temperature sensor
  • Feeder temperature sensor (protection)
  • Thermal protection
  • A panel casing for the boiler’s installation or in a metal casing

Product parameters

Specification Unit
Power supply V 230V/50Hz +/-10%
Maximum power consumption W 4
Ambient temperature °C 5÷50
CH pump output load A 0,5
Fan output load A 0,6
Measurement accuracy °C 1
Temperature adjustment range °C 40÷80
Sensor thermal resistance °C -25÷90
Fuse A 3,15
Temperature measurement range °C 0÷85
Feeder output load A 1
