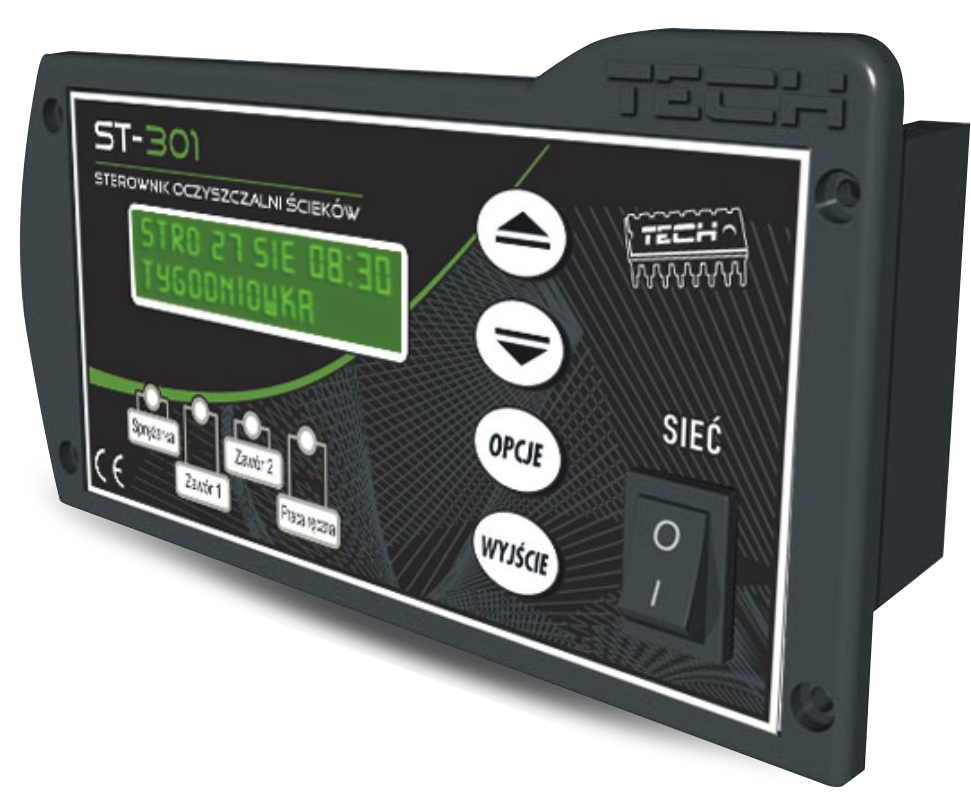

Controller for Biological Reactors
Control of household sewage treatment plant
Functions Performed by the Controller:
Temporary control of the compressor
Temporary control of two electromagnetic valves (pumps)
Controller’s Equipment:
Control of the compressor’s operation status
A casing made from high-quality materials resistant to high and low temperatures
| Specification | Unit | |
| Power supply | V | 230V/50Hz +/-10% |
| Max. power consumption | mA | 5 |
| Ambient temperature | °C | 5÷50 |
| Fuse | A | 1,6 |
| Valve 2 output load | A | 0,5 |
| Valve 1 output load | A | 0,5 |
| Compressor output load | A | 0,5 |
| Temperature measurement range | °C | 0÷85 |
